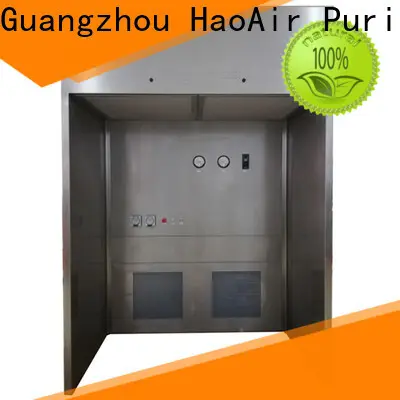

plc controlled powder dispensing booth gmp modular design for biological pharmacy

Company Advantages
1. As it is an essential part of the production process, the samples of HAOAIRTECH system booth are carefully handled to ensure that the feel and look are right for customers' brand. The product can increase the rate of finished products
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has strong innovation ability, research ability and development ability for powder dispensing booth. The product is widely used for high-end clean rooms of various manufacturers
3. Compared with other system booth, powder dispensing booth has virtues of sample booth design . The product can maintain high air quality of the factory
4. system booth is pretty popular among powder dispensing booth, and it possesses characteristic such as sample booth design . The product is reputed for its long service life
5. Our concentrations on the design of system booth has worked out finally. The product assures an extremely high-efficient manufacturing process

Introduction:



When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing,

weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.

 By our fully trained engineers to ensure the system fully conforms to your requirements.

 To complete the package, our dedicated Aftersales department will supply total support.

Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both

Various heights and widths (up to 6m) are available

Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum

Single pass/once through airflow systems used in applications where solvent vapors are present





Product Features：

Stainless steel or epoxy- coated mild steel construction

High efficiency EC fan system

Safe change the HEPA filter

Overhead lighting with supply plenum

Mobile work benches

Hazardous area electric option

Flush mounted computer integration

From/side access doors

PLC Controlled audible and visual alarm package

High level exhaust grilles

Material and personnel airlocks systems



Products Parameter：



MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material （Option）	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel   with power coated. (T=1.2/1.5mm)
Control system	1: LCD touchable screen display with air   speed adjustable and constant temperature and constant humidity data check.   2: Gel Sealant High Efficiency HEPA air   filter for high purification rank 3: Wind speed detection, Constant   temperature and constant humidity  Detector according to client request install      4: DOP/PAO Port and differential Pressure   Guage for HEPA /secondary filter so that remind of you change the air filter   in time 5: 5 different filter configuration   available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized   joints and seams.
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ  OR 220V/50HZ
Packing   material	Standard Export Poly wood Packing(Fumigant free material)
