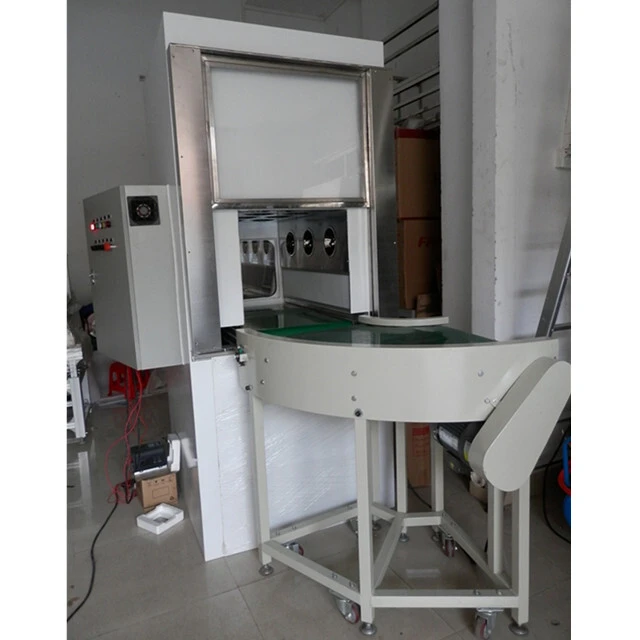

PLC control air shower pass box with conveyor line 1
PLC control air shower pass box with conveyor line 1

PLC control air shower pass box with conveyor line

    oops...!

    no product data.

    Go to homepage

      Product Features


        PLC Control system compact with conveyor line

        Internal Size: 500x960x500mm

     External size: 980x960x2250mm

     HEPA filter efficiency: 99.999%@0.3um

     Blower way: Three side blowing

    Air speed: > 25m/s

    Power: 380V/50HZ

    The door open type: Automatic electric slide type.



    PLC Logic Control Introduce:


     1: Entrance door is manual door or vertical slide door, Exit door is automatic slid door(up/down)

     2: After the goods entrance the cabinet closed the entrance door, the air clean system will be working .meanwhile the two door interlock.

     3:15s later, the exit door will be open automatic, and the conveyor system will be move on. When the goods pass the photo-electrics sensor that will be give single to the back door for close. (the part1 and part 2 should be together start and stop)

     4: Three side with blow. 1 Sets ion anti-static device available.

     5: Emergency button help you out of suddenly trouble



    Part1: Automatic PVC conveyor line :

    1: Major Structure and frame: Aluminum profile (50x50mm)

    2: Belt: Anti-static PVC belt green color

    3: Height: 700-1000mm adjustable

    4: Motor: 0.4kw 380V/ 50HZ.

    5: Speed: 1-15m/min (adjustable)



    Part2:  Automatic 90 Degree conveyor line:

    1: Major Structure:  steel with power coated plated

    2: Frame: steel with power coated square cube. 40mmx40mmx1.5T

    3: Belt: Anti-static PVC belt green color

    4: Motor: 380V/50HZ.0.4KW

    5: Speed: 1-15m/min adjustable



    Technical Parameter:

      MODEL

    KEL-ASPB960

    External size(mm)

    (WXDXH)

    980X960X2250 mm

    Internal size (mm)

    (WXDXH)

    50X960X500mm

    Interlocker

     electronic interlocker

    Air way

    3 direction blowing

    Pre-filter (mm)

    560x275x17

    HEPA Filter(mm)

    630x630x69

    Air flow  (m/s)

    1200m3/h

    Fan power

     380V/50HZ 750w (1set)

    Noise

    <78dB

         HEPA  Filter

       99.995% @0.3um

    UV lamp

        1 pcs

    Material



    1:Entirety Sus201/304 (T=1.0/1.2mm)

    2:External is steel with power coated,   Internal is SUS304(T=1.0/1.2mm)

    3:  External is steel with power   coated. Internal is SUS201 (T=1.0/1.2mm)

    Customer’s design is available.


    air shower pass box with PLC control box :

    PLC control air shower pass box with conveyor line 2

      Air Shower Pass Box With Vertical Slide Door :

    PLC control air shower pass box with conveyor line 3

     PLC Control box with conveyor line :

    PLC control air shower pass box with conveyor line 4
