Pass Box/Transfer Window for Cleanroom

Brand:

haoairtech

Model number:

HA-DPB600

Material:

1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

OEM /ODM:

OEM /ODM

Certificated:

Start port:

GUANGZHOU

Delivery time:

10 days

MOQ:

1 set

Inquiry

Write a Review

Product Name

Haoairtech

Other Name

pass box

Guarantee Time

12 month

Pass Box/Transfer Window for Cleanroom

Introduction

The dynamic pass box is made of stainless steel and is smooth and clean. The two doors are interlocked to effectively prevent cross-contamination. Electronic or mechanical interlocking devices are provided and ultraviolet germicidal lamps are provided.

Features:

Standard construction is Epoxy Painted Steel, inside stainless steel/ full stainless steel 304.
316L Stainless Steel units are also available.

Flame polished 3/8” thick clear doors.

Continuous stainless steel piano hinge.

Heavy Duty 1/4 Turn chrome plated latching handles.

Mitered anodized aluminum trim molding to frame out opening.

Closed cell gasket around door opening

Many options are available for this unit such as an electronic interlock for heavy use, as in a hospital pharmacy application. Consult our factory trained experienced sales engineering staff for more details.

Products Parameter:

MODEL	HA-DPB600
External size (mm) (WDH)	760x600x690mm
Work zone (mm) (WDH)	600x600x600mm
Purification rank	Class 100
Material （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system	1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation . 3: Double layer vacuum glass have very good appearance 4: Software computer interlocking door with long time using life 5: Air speed is 0.45m/s adjustable
UV light	1 PCS
Power supply	220v/50HZ
packing size (mm)	800x870x1300mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

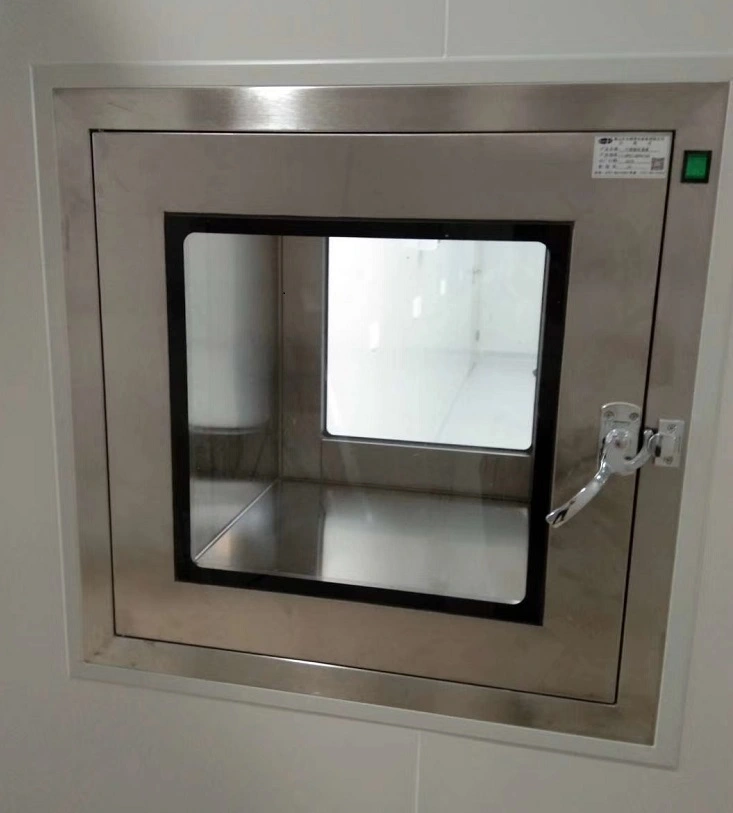

Pass box outlook:

pass box5

pass box6

About us

We are a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
