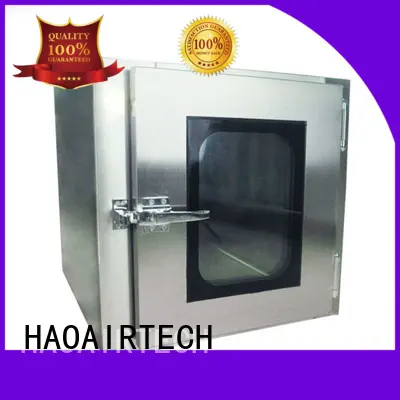

negative pressure pass through box with arc design gmp standard for hospital

Company Advantages
1. HAOAIRTECH pass box wikipedia is endowed with an attractive look and captivating design.
2. With a built-in insulation protection system, the product is less likely to be influenced by noises caused by jamming signals or component operation.
3. Owing to the remarkable characteristics, the product is becoming increasingly widely applied in the market.

Introduction:
Cleanroom transfer window is effective equipment and designed to allow material transfer without much personnel movement.
It also aids controlling ingress of particulate contaminations into clean room and between different classified areas .
The cleanroom transfer box can effectively reduce the number of times staff members enter the clean room due to the transportation of goods and prevent the external air from polluting the clean room.
And transwer window shall be installed in the wall or supported by bracket. Special sealing trip is installed to ensure air tightness .

Application:

Cleanroom transfer window is widely used in Micro-electronics , LCD and Optoelectronic Display  PCB , dust-free coating , aseptic packaging , medical care , Pharmacy , auto glass and precision parts.

Features:

 1.The surface material of cleanroom transfer window can be chose stainless steel or power coated steel .
  Transfer window's components are designed for maximum chemical resistance and enhanced durability for a long service life .

2. The two sides of the door are provided with mechanical interlock or electronic interlock , electronic latching device to ensure that the two sides of the door can not be opened at the same time .

3. Double-layer glass has a smooth , glossy surface , which is both aesthetical and safe for users .

4.Special sealing trip is installed to ensure air tightness.

Parameters:

Cleanroom Transfer Window
Model	HA-CT500	HA-CT600	HA-CT750
External size(W*D*H) ㎜	660X500X590	760X600X690	910X750X840
Internal size(W*D*H) ㎜	500X500X500	600X600X600	750X750X750
Construction	1. Entirely is stainless steel (304/201) 2. External is steel with power coated, Internal is SUS304 3. External is steel with power coated, Internal is SUS201
Thickness	Material thickness 1.0/1.2/1.5㎜
Toughened      Glass window	Double layer vacuum glass
Interlock	Mechanical or electronic interlocking
Gasket	PU foam gasket
Four corner	Four sides are inner arc with out any blind angle
Power	220V/50HZ
Accessories	1.Interphone    2.UV light   3.Roller



Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the world's largest producer of pass through box, with a magnificent pass box wikipedia production.
2. We continually reinvest in our machinery and personnel to ensure our customers are treated to the best equipment and highly trained personnel – which is key to the success of all our projects.
3. We have already undertaken and in many cases has completed actions to improve our environmental performance and reduce the environmental impact of our activities. Get quote! We manufacture products through economically-sound processes that minimize negative environmental impacts while conserving energy and natural resources. Our company is always committed to serving our customers whole-heartedly and help them to manufacture the accurate products they want. Get quote! HaoAir Purification strives to provide quality service for every customer. Get quote!
