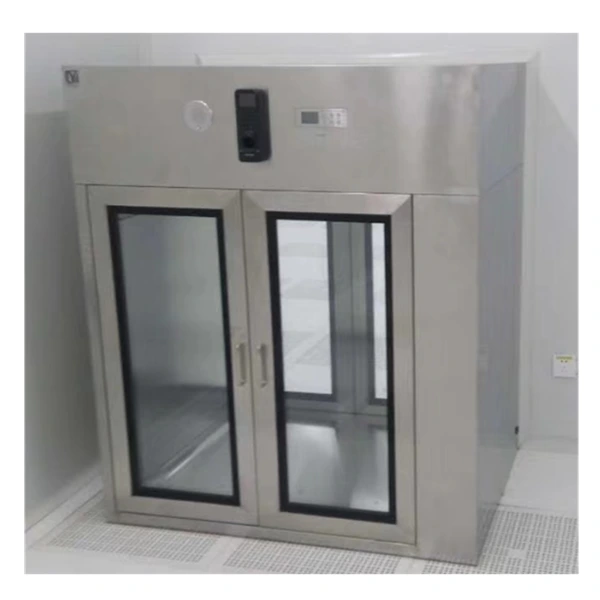

    Laminar Flow Pass Boxes



        We can realize solutions for laminar flow pass-boxes inside cleanrooms thanks to the flexibility of our systems nearly prefabricated with a number of variations boundless.

     Solutions of whatever measure are available to two or more shutters. The inside coverings can be realized in rolled HPL or I steel inox AISI304.

    It is possible to equip the pass-playpens with logics of interblocco besides as well as to add and to pilot unity autoventilanti, simple connections to the plant HVAC and systems of lamps sanitizzazione UV.


       The active laminar flow pass-boxes are characterized for the possibility to have a laminar flow of clean air inside the room.
    Such flow can be both continuous and discontinuous and fed by an external plant of treatment of air rather than from an unity autonomous autoventilante.


    Technical Specification :


    MaterialStainless Steel304/316
    Size900*670*1100mm
    Usage/ApplicationIndustrial
    Power SourceElectric
    Internal size600*600*600mm.
    Air Velocity0.36-0.5m/s.

    Hepa filter 99.99%@0.3um
    U  V Light  one pcs

    Laminar Flow Pass Boxes 2


    Applications:

    • Pharmaceutical Industries

    • Food Processing Industry

    • Semiconductor Industry

    • Chemical Laboratories

    • Electronics Industry
