We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

knife edge h14 hepa filter with big air volume for air cleaner 1
knife edge h14 hepa filter with big air volume for air cleaner 2
knife edge h14 hepa filter with big air volume for air cleaner 3
knife edge h14 hepa filter with big air volume for air cleaner 4
knife edge h14 hepa filter with big air volume for air cleaner 1
knife edge h14 hepa filter with big air volume for air cleaner 2
knife edge h14 hepa filter with big air volume for air cleaner 3
knife edge h14 hepa filter with big air volume for air cleaner 4

knife edge h14 hepa filter with big air volume for air cleaner

Brand:
HAOAIRTECH
Model number:
HA-EPA
OEM /ODM:
OEM/ODM
Certificated:
SGS
Start port:
HUANGPU,GUANGZHOU
Delivery time:
10 Working days
MOQ:
10sets
Country of Original:
china
Supply ability:
1000sets/per month
Payment term:
T/T IN advance, LC At sight
Application:
HVAC air filtration system
Inquiry

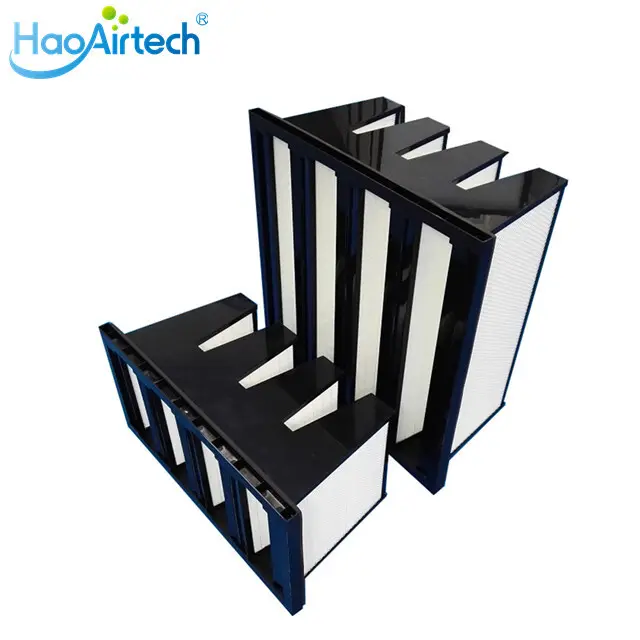

MERV16 V-Cell Filter




Parameters Of V Cell Filters Products:

Filter material:  polyester or glass fibre
Filter classes: F7.F8,F9,H10
Frame material: ABS plastic frame or PVC Frame
Frame color:blue or black
Standard size:592X592X292mm

Pack : 4V

knife edge h14 hepa filter with big air volume for air cleaner 5


Products Parameter

 Dimension

  (mm)

(W*H*D)

Pack

NO

 Rate

Air Flow

 (m3/h)

Media Area

(m2)

Dust

Holding

   (g)

Efficiency

Rate primary

Resistance

   (Pa)

 Finally

Resistance

   (Pa)

592X287X292

4

2100

11.02

660

F7

65%@0.5um



<80Pa



300-350pa

592X490X292

4

3550

18.6

1200

592X592X292

4

4500

22.1

1350

610X610X292

5

5400

29

1750

592X287X292

4

2100

11.02

660

F8

85%@0.5um



<100pa



350-400pa

592X490X292

4

3550

18.6

1200

592X592X292

4

4500

22.1

1350

610X610X292

4

5400

29

1750

592X287X292

4

2100

11.02

660

F9

90%@0.5um



<120pa



400-450pa

592X490X292

4

3550

18.6

1200

592X592X292

4

4500

22.1

1350

610X610X292

5

5400

29

1750


knife edge h14 hepa filter with big air volume for air cleaner 6

Introduce:

V Cell filters, also be called as v bank filters, rigid pocket filters,are the most important part in clean room ventilation systems when filtration level 100 or 10.

V cell filters are pre-filters before HEPA filters, the role and function are the same as pocket filters, but v bank filters offer more stable performance.

The ‘V’ design provides significantly more surface area than pocket filters, reducing the overall pressure drop in the system and extending HEPA filters life.

To enlarge the service life of HEPA filters, V bank filters need to remove most of the 0.5um particles with efficiency from 75-99%.

Normally, the v bank filters are made of ABS plastic frame, mini pleated glass fiber or pp pack, hot melt glue as the separator,

they are manufactured in a doubleheader frame and are relatively lightweight when compared to the overall capacity of the products.

As a HVAC filter manufacturer, we manufacture and design different v bank filters based on customers detailed requirements.

 We know that suitable and good quality air filters would save your money and time,no matter what you needed,our air filters will be satisfied.

knife edge h14 hepa filter with big air volume for air cleaner 7
