We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

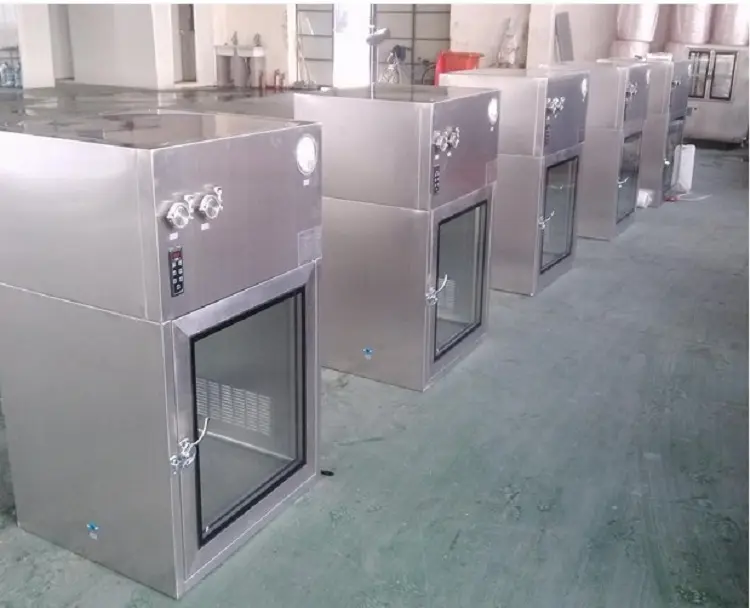

interlocking pass box manufacturers with laminar air flow for hospital

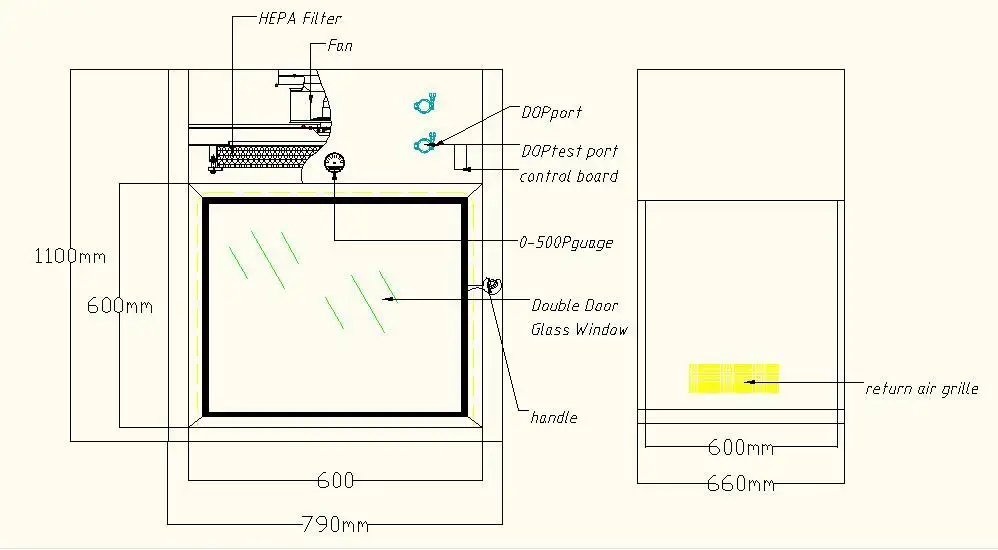

TECHNICAL SPECIFICATIONS
Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished
electrically interlocked doors with proper gaskets
traffic light for door status
control panel
differential pressure gauge
HEPA filter grade F-14
Motor fan
Working area classification ISO 5
Product Characteristic :

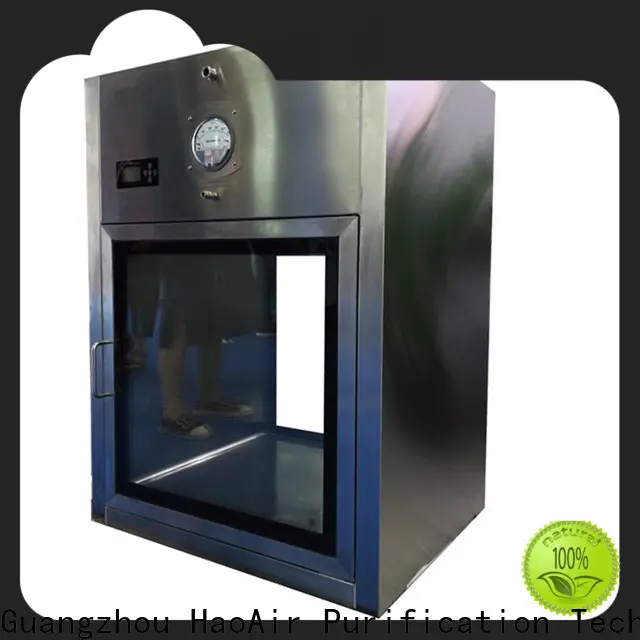

Clean Room Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring
the material from and into the classified clean room without contaminating the air of clean room.
In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.
Products Parameter：
| Air cleanliness : | ISO Class 5 / Class 100 / M 3.5 AREA |
| Air Velocities : | 0.45 ± 0.05 mps (90 ± 20 FPM) |
| Air Flow : | Horizontal / Vertical |
| Noise Level : | Less than 65 dB |
| Vibration Level : | Minimum |
| POWER SUPPLY : | 230V AC, 1-Ø, 50HZ |
| MOC : | GI Powder Coated / SS-304 / SS-316 / Combination |
| Door : | Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle |
| Internal Coving for easy cleaning | |
| Two Stage filtration | |
| EU7 - Intermediate Filter (95% down to 3 micron) | |
| EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron) | |
| Fluorescent Lights (interlocked with Door) | |
| UV Light (interlocked with Door) | |
| Differential Pressure Gauges : | 01 No. (HEPA Filter) |
| Door Opening With Solid State Electronic Inter Locking Mechanism | When both door closed; both are elec. Magnet locked; For open press touch screen to release the door |
| At A Time Only One Door Opened | |
| Audio / Visual Indication for material is kept inside the pass box | |
| In close condition of both door : UV Light will be on, | |
| When open any one door : UV will off and FL will on | |
| DOP Port | |
| DQ, IQ, OQ, PQ Documentation |
