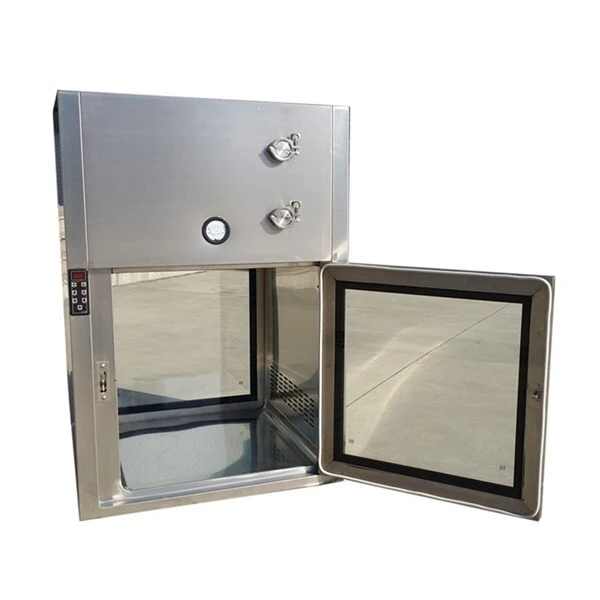

    Customizable Dynamic Pass Box For Clean Room Purification Workshop


    Introduction:


    Dynamic pass box is a kind of auxiliary equipment for clean room.

    It is mainly used to transfer small objects between clean room and non-clean area or between clean rooms with different levels and different pressures.

    On the one hand, it acts as an air brake to prevent high pressure from being relieved in high-level clean room.

    On the other hand, it realizes self-purification in the process of re-transmission so as to ensure the self-cleaning of articles entering clean area and reduce cross-contamination caused by objects.

    The blowing time can be adjusted arbitrarily according to the manual switch, so as to maximize self-purification and energy saving effect.

    Technical parameter:


    MODEL

    HA-DPB500

    HA-DPB600

    HA-DPB700

    External size (mm)

    700x570x1050mm

    790x660x1100mm

    900x770x1250mm

    (W*D*H)

    Work zone (mm)

    500x500x500mm

    600x600x600mm

    700x700x700mm

    (W*D*H)

    Purification rank

    Class 100

    Noise

    65dB

    Air speed(m/s)

    0.3~0.9 (adjustable)

    Pre-filter Efficiency

    G4

    HEPA Filter Efficiency

    H14(99.995%@0.3uM)

    Material (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)

    2: Entirety sus201. (T=1.2/1.5mm)

    3:External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)

    4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)



    Control system

    1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.

    2: Pass Box inside bottom corner is round shape without any dust accumulation


    3: Double layer vacuum glass have very good appearance

    4: Software computer interlocking door with long time using life

    5: Air speed is 0.45m/s adjustable

    UV light

    1 PCS

    Power supply

    220v/50HZ

    packing size (mm)

    800x870x1300mm

    1000x870x1400mm

    1100x970x1500mm

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)


    Note: Non-standard products can be customized according to customer requirements.


    Basic Performance Requirements

    1.Cleanliness requirements in laminar flow pass boxs: Class B

    2.Internal and external double-layer shell, internal circumferential arc treatment, to ensure seamless connection;

    3.Laminar flow design is adopted. Up-feed and down-return mode is adopted for the flow direction. The punching design of 304 stainless steel cold-rolled plate is adopted at the bottom.

    4.Filter: G4 is used for primary effect filter and H14 is used for high efficiency filter.

    5.Wind speed: After the high efficiency filter, the outlet wind speed is controlled at 0.38-0.57 m/s (tested at 150 mm under the high efficiency outlet equalizer).

    6.Differential Pressure Function: Display the filter differential pressure (range efficiency 0-500 Pa/ medium efficiency 0-250 Pa), accuracy (+5 Pa);

    7.Control function: fan start/stop button, with built-in electronic door interlocking, setting ultraviolet lamp, designing a separate switch;

    8.The high efficiency filter can be disassembled and installed separately from the upper box for easy maintenance and replacement of the filter.

    9.An overhaul opening is arranged at the lower part of the pass box for the maintenance of the fan.

    10.Noise: Noise < 65 dB in normal operation of pass box;

    11.Effective air distribution plate: 304 stainless steel mesh plate.
