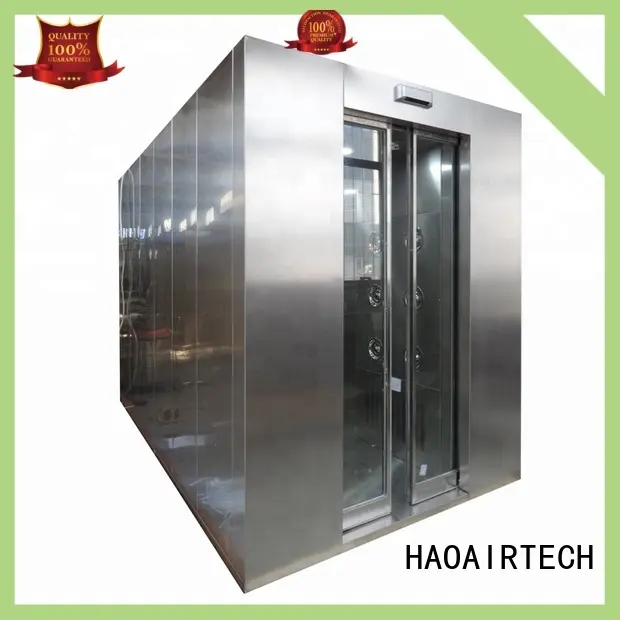

intelligence air shower system with stainless steel for pallet cargo

Company Advantages
1. The development of HAOAIRTECH air shower supplier adopts different advanced technologies. It is developed under the enlightenment of energy keeping and ultra-quiet technologies.
2. High energy efficiency is the biggest selling points of this product. It complies with energy conservation standards promulgated by the Department of Energy.
3. I customized this product and installed it nearby a beach to hold a volleyball competition, which gave my brand a huge exposure from then. -Said one of our customers.

Introduction:
Cargo air shower is a necessary passage for goods entering the clean room.It can eliminate the pollution issue in very high effect.
The electronic interlocking double door in both side play an important role that prevent infective air into the clean room inside.
The high-tech intelligent cargo air shower system with voice prompts,auto voice reminding filtration air from the three direction nozzles for clean the particles or dust on pallets goods effectively and rapidly.

Cleanroom Cargo Air Shower General Features:
1.Microprocessor controlled
2.H13 HEPA filter
3.Two level filtration system (pre filter, HEPA filter)
4.Dual door opening options (infrared induction and inching switch)
5.Indicator light
6.Infrared sensor
7.Stainless steel door
8.Electronic door lock
9.Emergency stop switch
10.Custom sizes and configurations are also available

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Cleanroom Cargo Air Shower Specification:

Cleanroom Cargo Air Shower HA-AS1950P Series
Model		HA-AS1950P1	HA-AS1950P2	HA-AS1950P3
Outer Si(mm) (WXDXH)		1950x1500x2180	1950x3000x2180	1950x4500x2180
Inner Size(mm)(WXDXH)		1450x1430x1910	1450x2930x1910	1450x4430x1910
Cargo per cycle		One Pallet	Two Pallets	Three Pallets
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		750WX2sets	750WX4sets	750WX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		18 pcs	36 pcs	54 pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	595X595X80mm(Mini-pleats HEPA filter)
	Efficiency	99.995%@0.3um
	Resistance	<180pa
Pre-filter	Size(mm)	785x385x21mm
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz

Clean Room Cargo Air Shower Configuration:

Cargo Air Shower For Clean Room:

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an experienced air shower supplier Chinese manufacturer. Our company is a leader in product development and technical specifications.
2. Modern production equipment can fully guarantee the quality of air shower system .
3. We stick to sustainable activities in our daily operation. By adopting socially responsible norms early on, we aim to set the bar for our industry and refine our process. We are committed to conducting business in a responsible and suitable manner. We have established efficient processes, clear responsibilities to implement sustainability in our organization and along our supply chain. We have adopted a sustainable production approach that is responsible for our environment. This approach has significantly decreased the waste amount. We integrate sustainability as an important part of our business. We strive to promote environmentally friendly production practices that help minimize waste and reduce harmful emissions to the air, water, and land.
