Product Details
HaoAir's pass boxes is of excellent quality, which is reflected in the details.HaoAir has great production capability and excellent technology. We also have comprehensive production and quality inspection equipment. pass boxes has fine workmanship, high quality, reasonable price, good appearance, and great practicality.
Enterprise Strength
-
After years of sincerity-based management, HaoAir runs an integrated business setup based on the combination of E-commerce and traditional trade. The service network covers the whole country. This enables us to sincerely provide each consumer with professional services.
Company Advantages1. HAOAIRTECH hepa filter replacements has to go through various kinds of tests. The test has been conducted to ensure each product is STC or sound transmission class.
2. The feature provided by hepa filter replacements makes h14 hepa filter being widely applied in many different situations.
3. The product meets stringent quality and regulatory requirements.
4. With these features, it has an extensive application prospect.
5. With the strong support of our factory, the product shows competitive advantages in the market.
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil or 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm) (W*H*D) | Rate Air
Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary
Resistance(Pa)
(H13-H14) | Finally
Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![hot sale h14 hepa filter with hood for air cleaner 12]()
/ Product Details
part.1

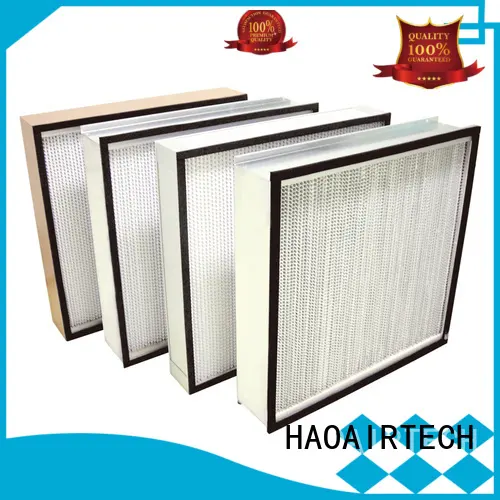

Deep Pleats HEPA air filter
part.2
Deep Pleats Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. HAOAIRTECH is a professional supplier in the design, development and production of h14 hepa filter .
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has the abundant technical force.
3. Focus on hepa filter replacements , Guangzhou HaoAir Purification Technology Co.,Ltd. has established a good brand image in air purifiers hepa filter industry. Ask online! Sincerity to our customer is the most important in Guangzhou HaoAir Purification Technology Co.,Ltd.. Ask online!
