We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
hihg efficiency weighing booth gmp modular design for dust pollution control1
1. The production process of HAOAIRTECH weighing booth covers the following stages. They are materials receiving, materials cutting, molding, component fabricating, parts assembling, and finishing. All these processes are conducted by professional technicians with years of experience in upholstery. The product will greatly improve the quality of factory-made products
2. Guangzhou HaoAir Purification Technology Co.,Ltd. mainly focuses on the research and product development of weighing booth to meet customer's applications in sample booth design . Automatic operation is the highlight of the product
3. The part that directly contacts with water will not contaminate the water source. The parts are made of food-grade materials which will not release any toxic substances. The product can be used to save time for cleaning and vacuuming
4. The product has strong material strength. The pipeline of this product has been tested during production and the result proved that it still keeps stable and not subject to crack after 1,000 times of folding. The product is of high purification rank
5. The product does not easily get pilling or damage caused by serious abrasion. Its textile fibers have been treated with an antistatic agent which can reduce the electrostatic phenomenon, hence to reduce abrasion among fibers. The product ensures the smooth refreshing breath of users
LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Introduction

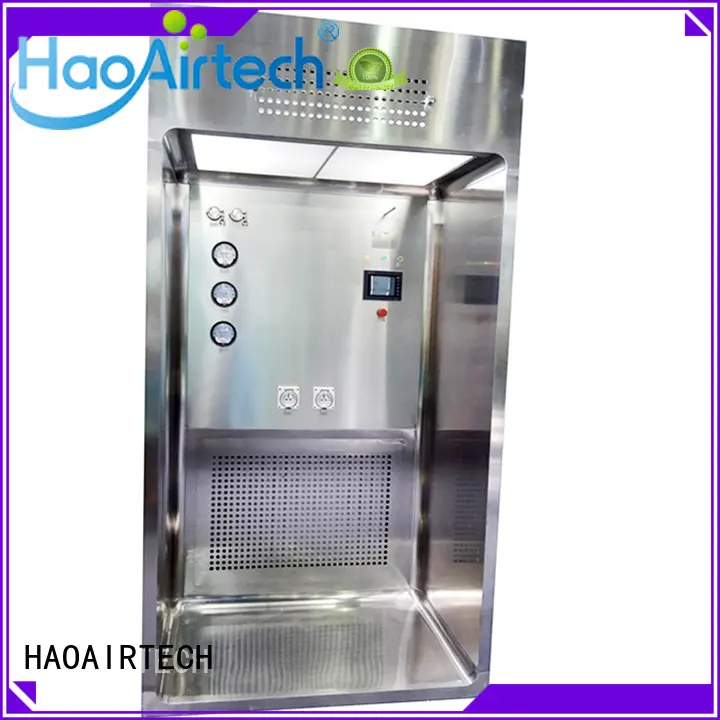

Weighting booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material（Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Application
Weighting booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Our technology takes the lead in the industry of weighing booth .
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has been improving our ability to serve our customers. Inquiry!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
