We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

high quality ulpa air filter with hood for air cleaner 1
high quality ulpa air filter with hood for air cleaner 2
high quality ulpa air filter with hood for air cleaner 3
high quality ulpa air filter with hood for air cleaner 4
high quality ulpa air filter with hood for air cleaner 5
high quality ulpa air filter with hood for air cleaner 6
high quality ulpa air filter with hood for air cleaner 7
high quality ulpa air filter with hood for air cleaner 8
high quality ulpa air filter with hood for air cleaner 9
high quality ulpa air filter with hood for air cleaner 1
high quality ulpa air filter with hood for air cleaner 2
high quality ulpa air filter with hood for air cleaner 3
high quality ulpa air filter with hood for air cleaner 4
high quality ulpa air filter with hood for air cleaner 5
high quality ulpa air filter with hood for air cleaner 6
high quality ulpa air filter with hood for air cleaner 7
high quality ulpa air filter with hood for air cleaner 8
high quality ulpa air filter with hood for air cleaner 9

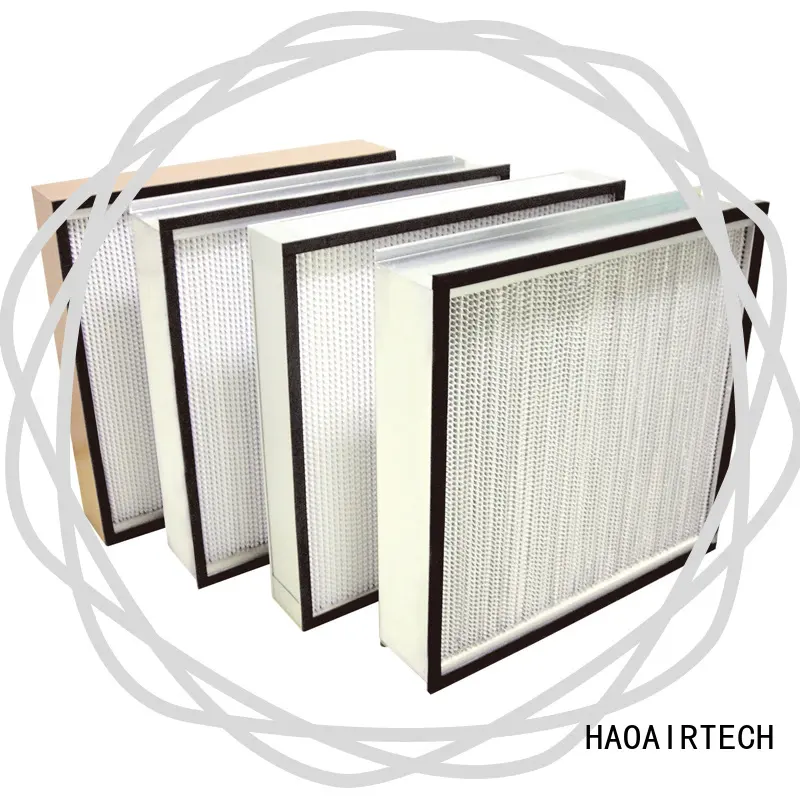

high quality ulpa air filter with hood for air cleaner

Brand:
HAOAIRTECH
Model number:
HA-HEPA-A Series
Material:
Glassfibre media with AL Foil clapboard
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Product Details
With the dedication to pursue excellence, HaoAir strives for perfection in every detail.HaoAir has professional production workshops and great production technology. best hepa filters we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.
  • high quality ulpa air filter with hood for air cleaner 10
Enterprise Strength
  • HaoAir firmly believes in the concept of 'customer first, reputation first' and treats each customer sincerely. We strive to meet their requirements and solve their doubts.
Company Advantages
1. Compliance with recognized safety standards is necessary for HAOAIRTECH hepa filter replacements to be recognized. These can be in the form of test reports from recognized testing laboratories.
2. Strict quality standards have been set during the inspection process to ensure high quality products.
3. This product has the advantages of long service life and excellent performance.
4. This reliable and cost-effective product has won a wide customer base around the world.



Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
high quality ulpa air filter with hood for air cleaner 11


Introduce

Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.



/ Operating Conditions


 Media

Super glass fibre

 Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media    spacer

Hot melt

Frame thickness    (mm)

120/150/220

Clapboard

0.035mm aluminum foil or 120g/m paper

Efficiency

99.99%-99.999%@0.3um

Max    Temperature

80℃

Max    Humidity

80%



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate Air
     Flow
  (m3/h)

Media    Area
(m2)

Dust    Holding
(g)

Rate    primary
     Resistance(Pa)
     (H13-H14)

Finally
     Resistance    (Pa)

484X484X120

450

4.4

230

















220Pa

















400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


high quality ulpa air filter with hood for air cleaner 12



/ Product Details



part.1
Deep Pleats HEPA air filter
high quality ulpa air filter with hood for air cleaner 13

part.2
Deep Pleats Hepa Air Filter With EVA Gasket
high quality ulpa air filter with hood for air cleaner 14

part.3
Deep Pleats Media Compact
high quality ulpa air filter with hood for air cleaner 15



/ package


high quality ulpa air filter with hood for air cleaner 16
high quality ulpa air filter with hood for air cleaner 17
high quality ulpa air filter with hood for air cleaner 18




Company Features
1. We export our ulpa air filter to many countries, including hepa filter replacements and etc.
2. There is a strict quality control system during the production of air purifiers hepa filter .
3. We strive to understand the schedule and needs of customers. And we try to add value through our superior ability to manage and communicate throughout every project. Ask online! The philosophy of our company is that we not only concern the growth but also seek to maintain stability. This is an important assurance for both our employees and customers. Ask online! We leverage diversity through inclusion of employees, empowering them to shape the future of the corporation through collaboration and innovation. Ask online! We strictly comply with the basic behavioral principles of business ethics in the relations with our shareholders, customers, suppliers, employees, local communities, and the environment. Ask online!
