high quality box filter hot sale for schools and universities HAOAIRTECH

Company Advantages
1. Our solid packing is suitable for long-distance transportation.
2. The product is cost-effective. Thanks to the high efficiency of ammonia refrigerant, running the refrigeration equipment can save a lot of energy.
3. The product has been found usage in multitude industries and is believed to be more widely used in the coming years.

Products Characteristics:

Big air volume

Low Resistance

High dust holding capacity

ABS frame comply with Rosh test report

Both side with screen protect the media

PU gasket or EVA gasket for your choose .

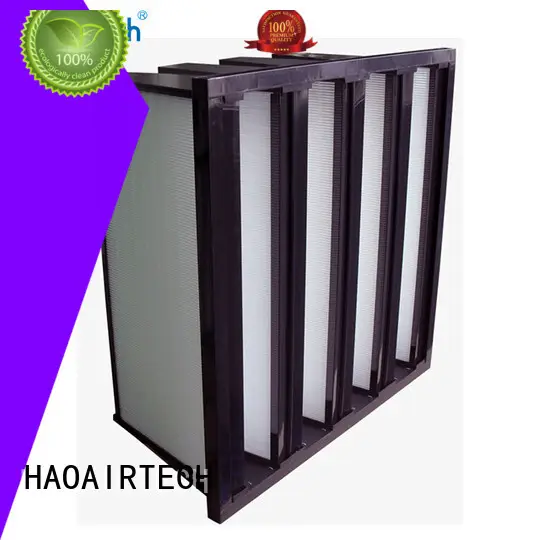

 Introduction:

The media material is super glass fibre for 0.5um particulate

 It is patent technology to ensure the V type passage in low resistance.

 Neoprene /EVA prevent the air leaking in operation

ABS/PVC frame in 3V,4V,5V for your choose.

 Adopting the laser to scan the filter one by one ( MPPS)

 100 % provide the test report for each V Cell air filter

 Filtration Efficiency: F9.F8,F7,F6,(ASHAR ).

Applied to the terminal filtration of the air-condition filtration system

Products Parameter：

Dimension   (mm) (W*H*D)	Pack NO	Rate Air Flow  (m3/h)	Media Area (m2)	Dust Holding    (g)	Efficiency	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
592X287X292	4	2100	11.02	660	F7 65%@0.5um	<80Pa	300-350pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750
592X287X292	4	2100	11.02	660	F8 85%@0.5um	<100pa	350-400pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	4	5400	29	1750
592X287X292	4	2100	11.02	660	F9 90%@0.5um	<120pa	400-450pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750

Application:



1: Optical electronics, biological pharmaceuticals, medical laboratories, food and beverages, daily chemical semiconductors, precision instruments and other

   industries Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms

2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,

3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.



Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. boasts its rich industry experience for v cell rigid filter .
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s R&D team is composed by experienced engineers.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. aims to be a very advanced box filter manufacturer. Inquire now! Guangzhou HaoAir Purification Technology Co.,Ltd. targets to be a leading hvac air filters exporter at home and abroad. Inquire now! HaoAir Purification works hard for the best interests of our customers. Inquire now! HaoAir Purification always show a sincere and fair attitude towards our customers. Inquire now!
