High Performance SUS304/SUS316 Clean Room Dynamic Pass Box
High Performance SUS304/SUS316 Clean Room Dynamic Pass Box

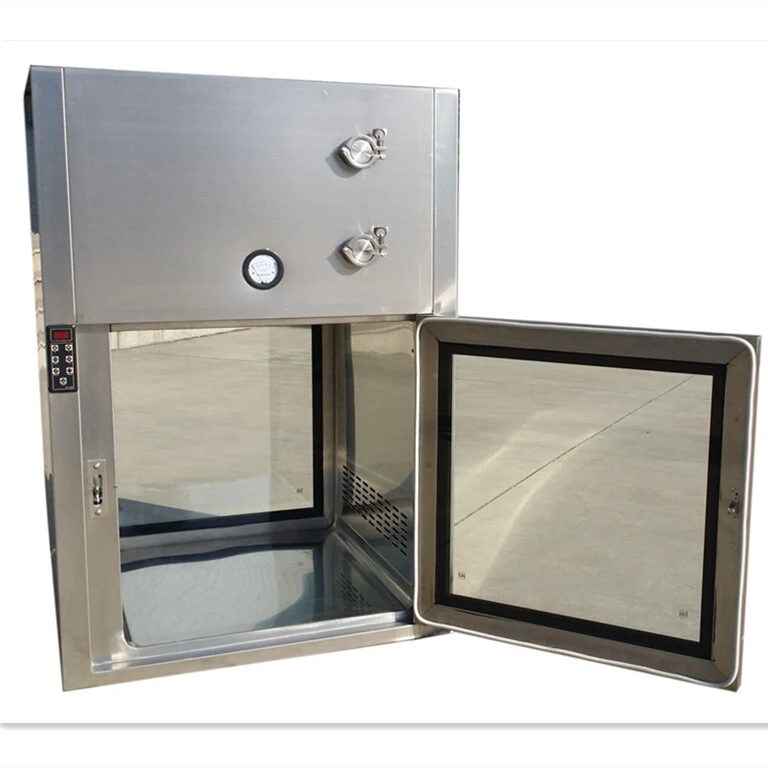

Dynamic Pass Box Introduction:
The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.
Dynamic Pass Box Features :
1.Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room.
2.It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp.
3.The construction material can be SUS or SGLC materials.
4.It is time saving and enables the convenient cargo transfer.
5.All the sizes can be customized.
The Dynamic Pass Box is approval by CE and RoHS certificate.
Customer’s design is available.
Clean Room Dynamic Pass Box Specification:
Clean Room Dynamic Pass Box HA-DPB Series | |||
Model | HA-DPB500 | HA-DPB600 | HA-DPB700 |
Outer Size(mm) (WXDXH) | 700x570x1050 | 800x670x1150 | 900x770x1250 |
Inner Size(mm)(WXDXH) | 500x500x500 | 600x600x600 | 700x700x700 |
Construction | 1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316. | ||
Air Velocity(m/s) | 0.45m/s (adjustable) | ||
HEPA Efficiency | 99.995%@0.3um | ||
HEPA Filter Type | Mini-pleats Gel Sealant HEPA Filter | ||
Test Port | External PAO/DOP test port | ||
Magnehelic | 1 set | ||
Inner bottom | Arc Shaped | ||
Interlock | Micro-computer interlock | ||
Power | 150W-350W, 220v/50Hz | ||
Clean Room Dynamic Pass Box Details:
Clean Room Dynamic Pass Box Application:
