We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

high efficiency fan filter unit with internal fan for clean room cell1 1
high efficiency fan filter unit with internal fan for clean room cell1 2
high efficiency fan filter unit with internal fan for clean room cell1 3
high efficiency fan filter unit with internal fan for clean room cell1 4
high efficiency fan filter unit with internal fan for clean room cell1 5
high efficiency fan filter unit with internal fan for clean room cell1 6
high efficiency fan filter unit with internal fan for clean room cell1 7
high efficiency fan filter unit with internal fan for clean room cell1 1
high efficiency fan filter unit with internal fan for clean room cell1 2
high efficiency fan filter unit with internal fan for clean room cell1 3
high efficiency fan filter unit with internal fan for clean room cell1 4
high efficiency fan filter unit with internal fan for clean room cell1 5
high efficiency fan filter unit with internal fan for clean room cell1 6
high efficiency fan filter unit with internal fan for clean room cell1 7

high efficiency fan filter unit with internal fan for clean room cell1

Brand:
Haoairtech
Model number:
HA-HCB
Material:
Galvanized frame(T=1.0mm)
OEM /ODM:
OEM
Certificated:
CE
Start port:
Guangzhou huangpu
Delivery time:
7 working days
MOQ:
5 Sets
Country of Original:
china
Supply ability:
1000pcs/month
Payment term:
T/T. LC
Application:
Cleanroom
Inquiry
Company Advantages
1. fan filter unit is of the most iconic design. The product can increase the rate of finished products
2. It effectively reinforces the brand image. Being customizable, it is mainly about reputation and influences the way consumers perceive a brand. The product prevents airborne particles and microbes from entrance
3. This product is non-toxic. The materials and parts used in it have been tested to guarantee no harmful element is contained. The product is widely used for high-end clean rooms of various manufacturers
4. This product is moisture resistant. Constructed with durable flashing materials, non-corroding attachment hardware and fasteners, it will not corrode even in regions subject to wetting. The product has passed strict air speed test
5. It runs well in an electromagnetic environment. It is able to function as intended in the presence of several electromagnetic phenomena. It acts as an indispensable part in a dustfree production line



Product Features

Low running irrigation surface power consumption,

Cost reduction and microcomputer control

maintenance-free can adjust the wind speed with the increase of

resistance to maintain the air balance.

Suitable for use in cleanliness class Class1-1000 cleanroom.


,


high efficiency fan filter unit with internal fan for clean room cell1 8

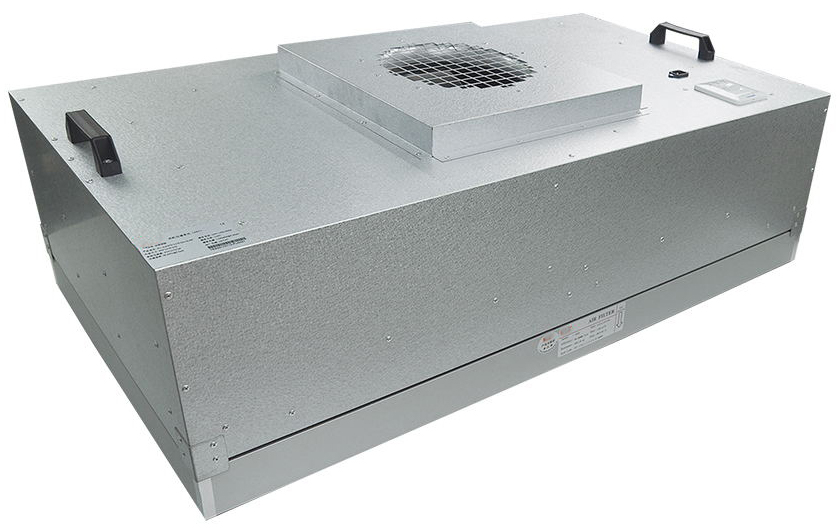

Introduction

Fan filter unit is a ceiling HEPA unit with internal fan. It is used in turbulent flow and laminar flow clean room. The design of the unit is flexible. According to the design specifications,

It can easily cooperate with any ceiling skeleton to meet the requirements of clean grade 1000 to 10. Fan filter unit is one of the most quiet and well priced units in the clean market at present.

With this unit, high quality air can be transported to the clean room. And the air manifold is good,


/ Products Parameter



 MODEL

  HA-FFU920

HA-FFU1175

HA-FFU1225

External size (mm)

(WXDXH)

920x615x350

1175x575x350

1225X615X350

 Material

Steel   plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

 800

1000

1200

Air   velocity (m/s)

  0.3/0.35/0.4/0.45/0.5

Pressure(pa)

    97(10mmAq)





HEPA   FILTER

Size(mm)

 915X610X69mm

1170x570x69mm

1220x610x69mm

Efficiency(%)

 99.995%@0.3um

Frame

Aluminum in good quality

Pressure   (pa)

<220pa@0.45m/s

characteristics

Choose patent no-gap   technology to make PU gasket

 motor

Power   supply

     220V/50HZ

Type

Aluminum   turbine motor

Vibration   (mm/s)

Vibration   quotiety  0.2-0.5m/s

Power (w)

123w

123w

172w

Weight (kg)

24kg

28kg

31kg

     Noise (Db)

57

57

      8

 Customer size is availble.


/ Specification


high efficiency fan filter unit with internal fan for clean room cell1 9

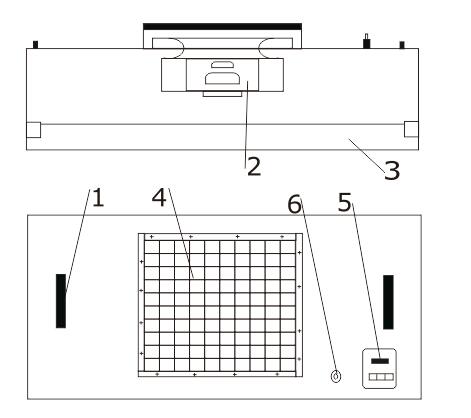

 Illustration :    1: plastic handle    2: fan    3: hepa filter    4: per-filter    5: control panel    6: power cable .


/ Product Details



part.1

Light weight, corrosion resistance, beautiful appearance.

high efficiency fan filter unit with internal fan for clean room cell1 10

part.2

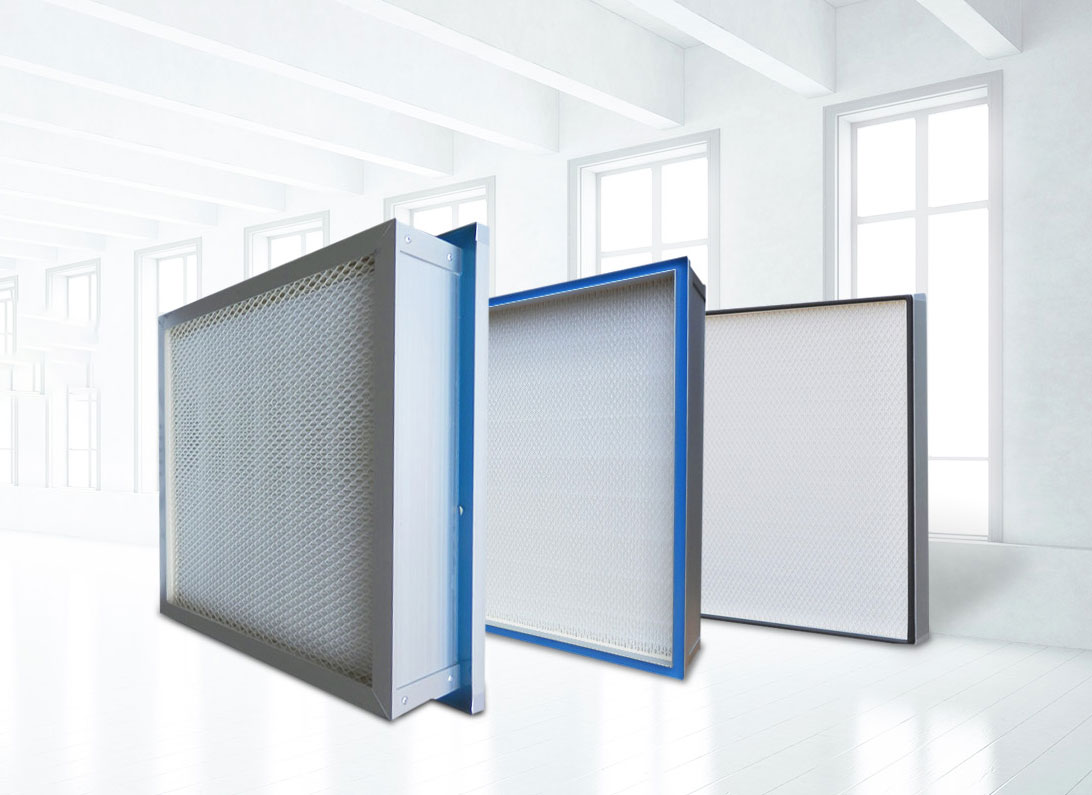

It can easily match all kinds of high efficiency filters and HEPA or ULPA.

high efficiency fan filter unit with internal fan for clean room cell1 11

part.3

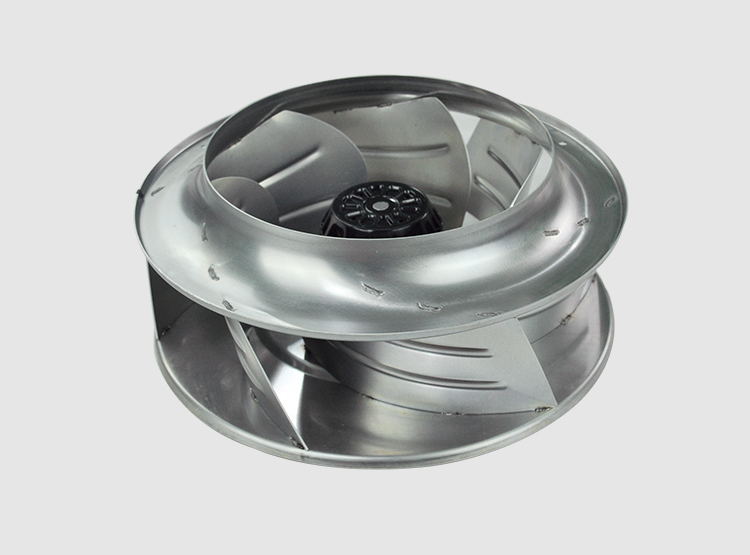

Fan filter unit adopts direct-drive high-efficiency centrifugal fan with long life, low noise and small vibration.
high efficiency fan filter unit with internal fan for clean room cell1 12


Application

It is suitable for semiconductor, electronics, flat panel displays and disk drives manufacturers and optical, biological industries, such as clean rooms, clean workbenches, clean production lines, assembly Cleanrooms and local 100-level cleanroom and other places with strict control of air pollution requirements of low energy consumption. reduce operating costs.

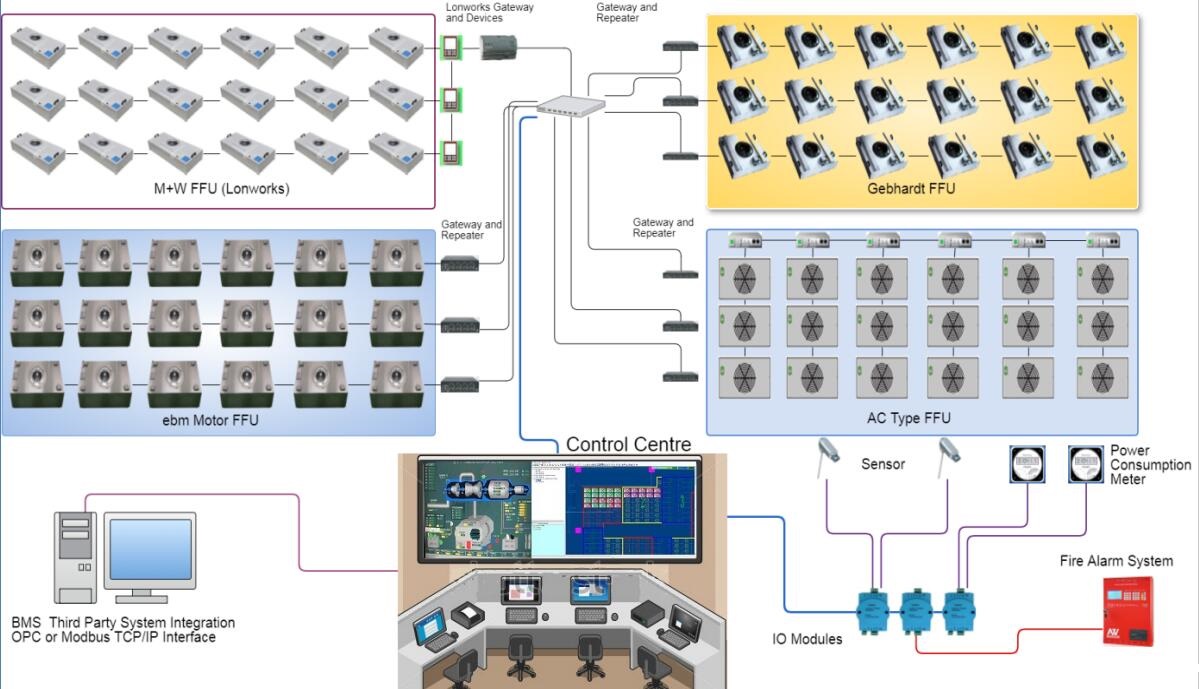

Fan Filter Unit Control System :

high efficiency fan filter unit with internal fan for clean room cell1 13



/ Certificated

high efficiency fan filter unit with internal fan for clean room cell1 14





/ Our Service


high efficiency fan filter unit with internal fan for clean room cell1 15

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. currently has a research and development center and a large-scale production base. In order to achieve the purpose of developing HAOAIRTECH, our employees are constantly introducing high-tech manufacturing fan filter unit .
2. HAOAIRTECH has its own laboratory to design and manufacture filter fan unit .
3. Guangzhou HaoAir Purification Technology Co.,Ltd. has obtained many patents for hepa filter module and meets all international standards. In order to develop our company, HAOAIRTECH actively promotes a friendly cooperation with domestic and overseas partners. Check it!
