We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

High Efficiency Fan Filter Units with HEPA filter 1
High Efficiency Fan Filter Units with HEPA filter 1

High Efficiency Fan Filter Units with HEPA filter

    oops...!

    no product data.

    Go to homepage



    Product Features

    Low running irrigation surface power consumption,

    Cost reduction and microcomputer control

    maintenance-free can adjust the wind speed with the increase of

    resistance to maintain the air balance.

    Suitable for use in cleanliness class Class1-1000 cleanroom.


    ,


    High Efficiency Fan Filter Units with HEPA filter 2


    Introduction

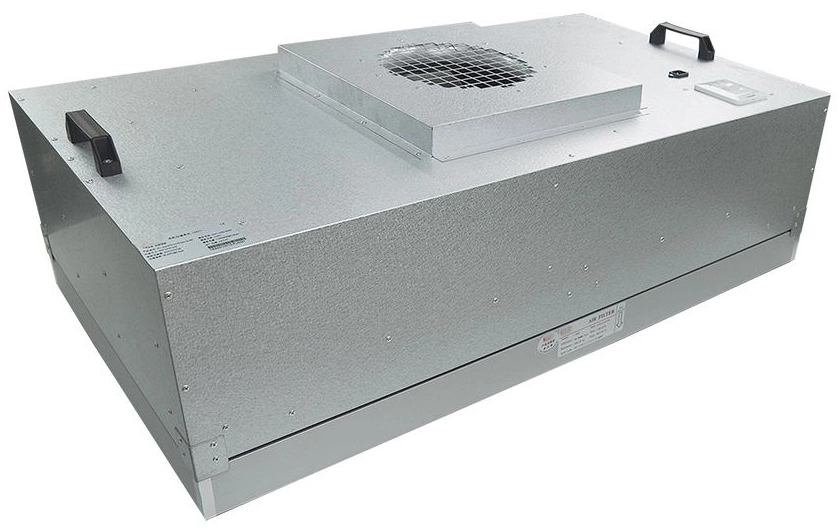

    Fan filter unit is a ceiling HEPA unit with internal fan. It is used in turbulent flow and laminar flow clean room. The design of the unit is flexible. According to the design specifications,

    It can easily cooperate with any ceiling skeleton to meet the requirements of clean grade 1000 to 10. Fan filter unit is one of the most quiet and well priced units in the clean market at present.

    With this unit, high quality air can be transported to the clean room. And the air manifold is good,


    / Products Parameter



     MODEL

      HA-FFU920

    HA-FFU1175

    HA-FFU1225

    External size (mm)

    (WXDXH)

    920x615x350

    1175x575x350

    1225X615X350

     Material

    Steel   plate with painting/galvanized steel/aluminum/stainless steel

     Air flow(m3/h)

     800

    1000

    1200

    Air   velocity (m/s)

      0.3/0.35/0.4/0.45/0.5

    Pressure(pa)

        97(10mmAq)





    HEPA   FILTER

    Size(mm)

     915X610X69mm

    1170x570x69mm

    1220x610x69mm

    Efficiency(%)

     99.995%@0.3um

    Frame

    Aluminum in good quality

    Pressure   (pa)

    <220pa@0.45m/s

    characteristics

    Choose patent no-gap   technology to make PU gasket

     motor

    Power   supply

         220V/50HZ

    Type

    Aluminum   turbine motor

    Vibration   (mm/s)

    Vibration   quotiety  0.2-0.5m/s

    Power (w)

    123w

    123w

    172w

    Weight (kg)

    24kg

    28kg

    31kg

         Noise (Db)

    57

    57

          8

     Customer size is availble.


    / Specification


    High Efficiency Fan Filter Units with HEPA filter 3


     Illustration :    1: plastic handle    2: fan    3: hepa filter    4: per-filter    5: control panel    6: power cable .


    / Product Details



    part.1

    Light weight, corrosion resistance, beautiful appearance.

    High Efficiency Fan Filter Units with HEPA filter 4

    part.2

    It can easily match all kinds of high efficiency filters and HEPA or ULPA.

    High Efficiency Fan Filter Units with HEPA filter 5

    part.3
    Fan filter unit adopts direct-drive high-efficiency centrifugal fan with long life, low noise and small vibration.
    High Efficiency Fan Filter Units with HEPA filter 6


    Application

    It is suitable for semiconductor, electronics, flat panel displays and disk drives manufacturers and optical, biological industries, such as clean rooms, clean workbenches, clean production lines, assembly Cleanrooms and local 100-level cleanroom and other places with strict control of air pollution requirements of low energy consumption. reduce operating costs.


    Fan Filter Unit Control System :

    High Efficiency Fan Filter Units with HEPA filter 7



    / Certificated

    High Efficiency Fan Filter Units with HEPA filter 8





    / Our Service


    High Efficiency Fan Filter Units with HEPA filter 9

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
