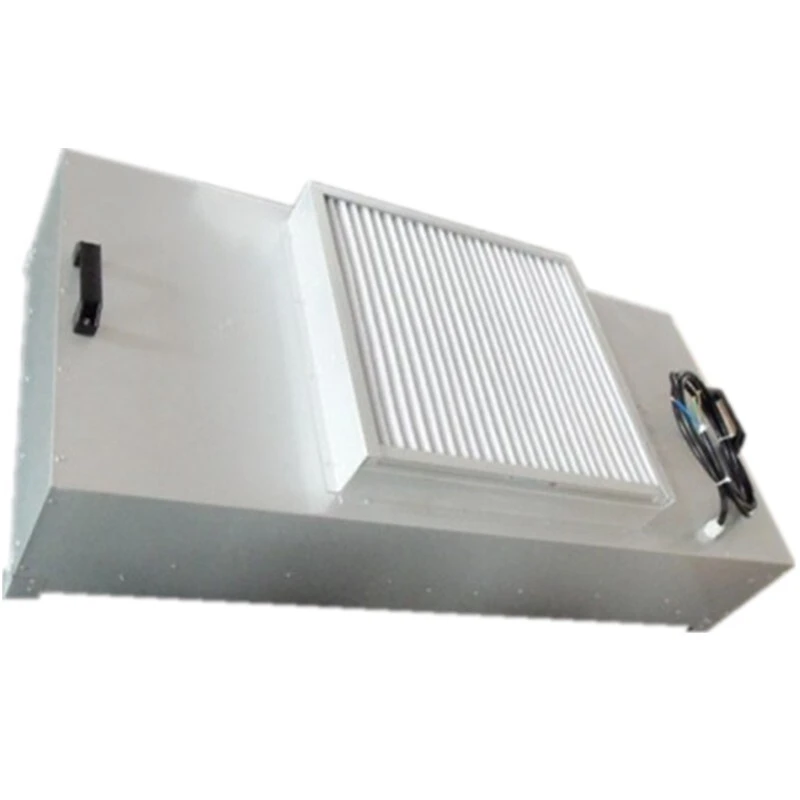

Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 1
Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 2
Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 1
Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 2

Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan

    oops...!

    no product data.

    Go to homepage

    Characteristics

    1.The direct-drive high-efficiency centrifugal fan has the advantages of low noise during operation, small vibration, and stepless speed regulation.
      The energy efficiency ratio is high and the heat generation is small, which further reduces the heat generation of the additional work area.
    2.The cabinet and high-efficiency filter are designed in a split design, making installation and replacement more efficient and easier.
    3.It is especially suitable for assembly into ultra-clean production lines, which can be arranged as a single unit according to the process requirements, or multiple lines of assembly lines with high cleanliness level.

    Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 3

    Product drawings

    Low Noise Fan Filter Unit With Direct Drive High Efficiency Centrifugal Fan 4


    1.plastic handle       2.Fan         3.HEPA filter      4.Pre-filter    5.control panel       6.power cable


    Technical Parameter


    Fan Filter Unit

    Model

    HA– FFU920

    HA – FFU1175

    HA – FFU1225

    External size:
    (W*D*H)mm

    920X615X350

    1175X575X350

    1225X615X350

    Air Flow

    900m3/h

    1000m3/h

    1200m3/h

    Construction

    Stainless steel 304/aluminum/galvanized steel/steel with power coated

    Air Velocity

    0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s

    Control system

    1. Power on/off 2. Control speed

    Pressure (pa)

    97 (10mm)Aq

    Hepa
    Filter

    Size(mm)

    915X610X69

    1170X570X69

    1220X610X69

    Efficiency

    99.99% @0.3um

    Pressure

    180pa @0.45m/s

    Power supply

    220/110V 50/60HZ

    Fan power

    123W

    123W

    175W

    Noise

    52dB

    52dB

    52dB

    Notes
    1.To prevent motor overheating the installation of protective devices is recommended.
    2.Special size available upon request.
    3.Filter can be HEPA or ULPA .
    4.Motor has overheat circuit protection
    5.Control Box can be hand-controlled or computer program system control
    6.Height in above specification doesn’t include filter
