We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 1
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 2
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 3
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 4
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 1
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 2
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 3
high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 4

high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production

Brand:
HAOAIRTECH
Model number:
HA-HMR
Material:
Sandwich Panel
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
1sets
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight against with document
Application:
Microcomputer electronic cleanroom
Inquiry
Product Name
Hardwall Modular Cleanroom
Other Name
hardwall cleanroom
Guarantee Time
12 months
Purificaiton Rank
ISO7
Dimension
3000x4000x2590mm
Power Supplier
220V/50 or 60HZ
Company Advantages
1. The colors of cleanroom cleaning supplies is highly pure. The product can withstand high temperature
2. Impeccable design, exquisite craftsmanship, and world-class collaborations are the foundations on which Guangzhou HaoAir Purification Technology Co.,Ltd. has been built. With the shell galvanized, the product is crack-resistant and wear-resistant
3. The product is highly hygienic. The hygienic design will collect minimal stains or gather germs, which effectively minimizes the risk of cross-contamination. It highly conforms to the dustless workshop management standard
4. This product is strong and robust. It has a well-made frame that will allow it to maintain its overall shape and integrity. The product creates a clean environment to reduce allergy and asthma symptoms

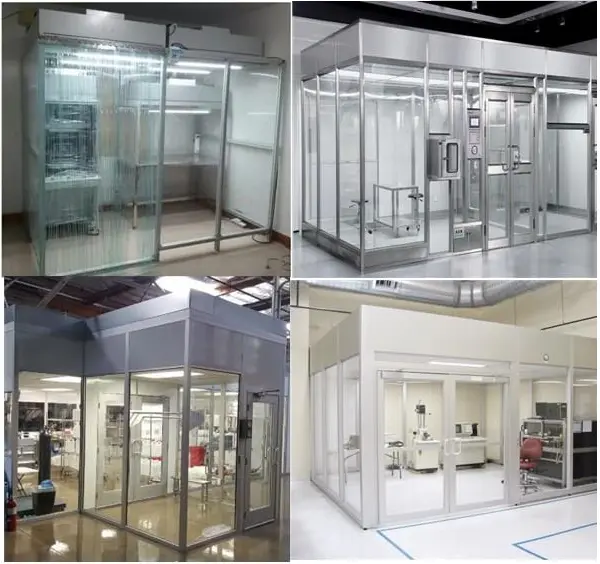

ISO7 Hardwall Modular Cleanroom

high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 5

Introduction


  hardwall  modular cleanroom is a portable Clean room system equipped with HEPA Fan Filter Unit, it generates stable and ideal laminar air flow inside.

This unit can provides high cleanliness (ranging from Class 100 to Class 10 000) partially in the clean room with excellent flexibility for the various demands of job process conditions.

The custom Mobile Clean Room Booth & air tent panel offers unmatched prices, usage and specifications for various research laboratories.

The Clean Room Tent offers application in pharma industries (to maintain GMP), Operation theatres, Horticulture, Tissue culture and bio fertilizer labs, Space research, Food processing industries etc.



  The pvc curtain wall is neat, simple, elegant and generous. The surface of the curtain sheet has good smoothness, and has the functions of sound insulation, heat insulation, moisture resistance, and UV resistance. Easy to clean and never fade. Set beautiful and practical together

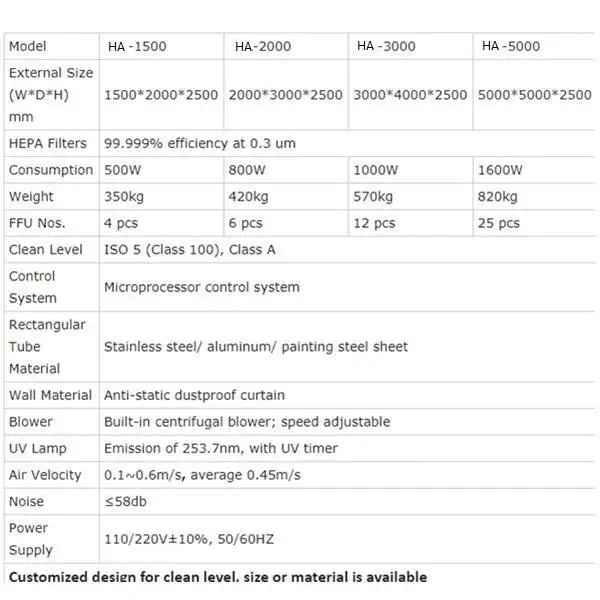

Technical Paremeters:


parameter1

Construction Details:

Framework:
The rooms are freestanding and fabricated of steel with welded gusset plates on each leg support to insure rigidity. Our exclusive rafter ceiling system allows rooms to span without need of internal legs. All framework has an electro-statically applied powder coat finish.



Ceiling Grid:
Consists of anodized aluminum hat and zee shaped extrusions that are formed to fit steel frame. One inch anodized tees make up cross sections creating a leak free ceiling system.



Ceiling Panels:
panels manufactured of high density formed fiber core covered with a white vinyl membrane. Tiles are durable, easy to clean and offer both humidity resistance and high light reflection.



Curtains:
clear PVC curtain hung to an appropriate height around perimeter of clean room to maintain proper pressurization. Various types of entry/exit systems are offered to best suit personnel/product flow. (overlaps, strips, bi-folding or dual-flex self-closing doors.) Curtains are easily mounted to steel frame by our one piece white PVC mounting track. Simply hook curtains on to track and close the continuous cover. This sleek non-corrosive design creates a tight seal to frame work that prevents contamination from entering the clean room.



HEPA Fan Filter Modules:
HEPA filter efficiency to be 99.99% at 0.3 microns and produce 720 to 800 c.f.m. or an average velocity of 90 f.p.m.



Electrical:
A prefabricated wiring system is supplied to speed up installation and reduce wiring costs. Assembly personnel just plug electrical components together so an electrician is only needed to connect power to a single point junction box. What makes this system completely user friendly is a leg mounted control box with separate on/off switches for HEPA filters and light fixtures.



high efficiency cleanroom cleaning supplies with constant temperature and humidity controlled for sterile food and drug production 7



Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd., known as a leading enterprise in the cleanroom cleaning supplies industry, has a strong capability in R&D and customization.
2. The factory has introduced many cutting-edge manufacturing facilities from developed countries. These facilities enable the factory to produce highly precise products and guarantee consistent product quality.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. aims to be world-class modular clean room manufacturers company. Get an offer!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
