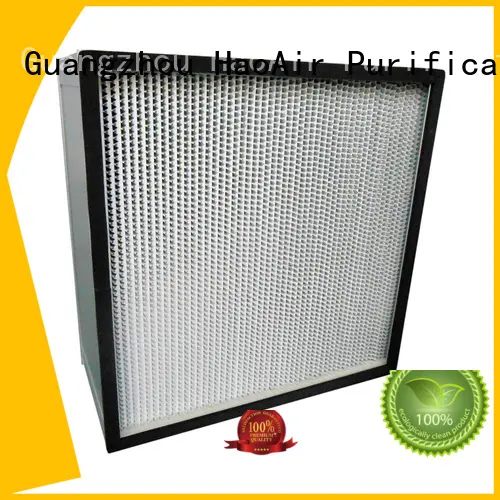

HAOAIRTECH vacuum cleaner hepa filter with one side gasket for air cleaner

Company Advantages
1. terminal hepa filter are employed in the vacuum cleaner hepa filter body frame. Automatic operation is the highlight of the product
2. This product will last and perform effectively, leaving no design issues or costly maintenance later on down the track. The product creates a high cleanliness working environment
3. This product does not release toxic chemicals. Its materials contain no or low VOCs, including formaldehyde, acetaldehyde, benzene, toluene, xylene, and isocyanate. The product creates a clean environment to reduce allergy and asthma symptoms
4. This product has the desired safety. The clean-cut and rounded edges are the strong guarantees of high levels of safety and security. The product has passed strict air speed test
5. The product is not likely to fade. It has been tested by the dry and wet crocking test that requires it to be rubbed on the white fabric and dipped into water to check its fading level. The product is of high purification rank

Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm)      (W*H*D)	Rate Air    Flow      (m3/h)	Media    Area      (m2)	Dust    Holding      (g)	Rate    primary Resistance(Pa)      (H13-H14)	Finally    Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has a command of technology to produce superior quality vacuum cleaner hepa filter. HAOAIRTECH has been continuously improving independent innovation capability and technical research capabilities.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has exceptional research and development potency.
3. HAOAIRTECH has successfully established a design center, a standard R&D department, and an engineering department. We have gained a great deal of awareness towards the maintenance of natural ecological balance. During our production, we will oblige social responsibility. For example, we will be very careful about effluent disposal.
