We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
HAOAIRTECH vacuum cleaner hepa filter with al clapboard for air cleaner
- With a professional service team, HaoAir is able to provide all-round and professional services which are suitable for customers according to their different needs.
1. HAOAIRTECH hepa filter for cleanroom is developed with pretreatment, refined filtration, cleaning and sterilization systems. The R&D team strives to achieve the best water treatment effect by improving its systems.
2. The product is safe to operate. During its operation, it will not generate dangerous effects such as electric current, electric arc, electromagnetic field, and static electricity.
3. It meets the more and more complicate requirements from the market, thus having wide development prospects.
4. Guangzhou HaoAir Purification Technology Co.,Ltd.'s employees are committed to providing exceptional service that is unique and distinct from all others.

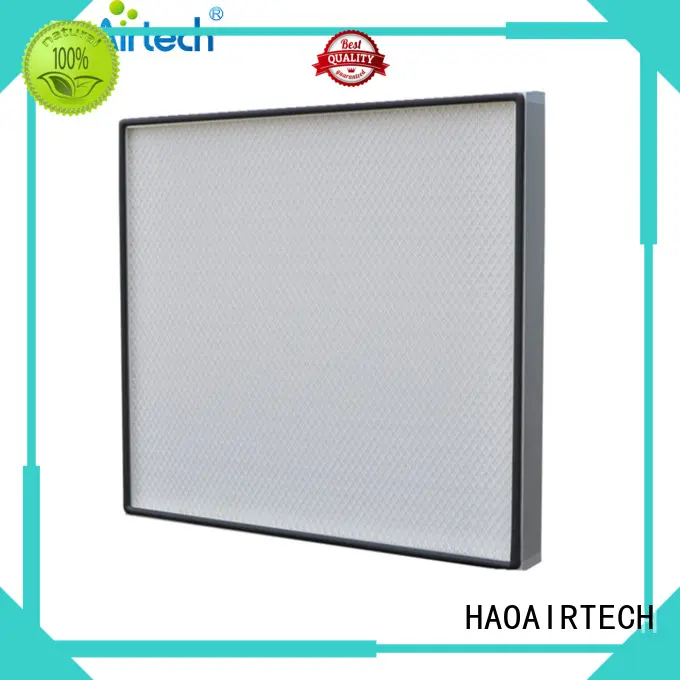

U15 ULPA Filters
Material And Performance:
Frame Material | Aluminum, galvanized |
Filter medium | Glass fiber |
Sealant | Polyurethane adhesive |
Partition | Hot melt adhesive |
Max. humidity | 80%RH |
Max. temperature | 80°C |
| Efficiency | U15 |
| Product name | U15 ULPA Filter |
Features: U15 ULPA Filter
Frame: Anodized aluminum frame.
Media: using special glass fiber filter paper as the filter material, high dust-holding capacity, low initial resistance.
Efficiency(EN779:2002 filter class)H13,H14,U15
(ASHRAE:52.2:2007 filter class)MERV18, MERV18, MERV19.
Each filter is through rigorous testing.
Recommended final pressure drop:450pa.
Temperature:80
Fire rating :DIN 53438 class F1.
Applications:
Suitable for electronics, pharmaceutical industry,hospital, and theoccasions required the high cleanliness terminal filtration.
Parameter :
Dimension (mm) (W*H*D)
| Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) |
320X320X50 | 200 | 1.99 | 120 |
U15 :<1600Pa U16 :<180pa |
400-600pa |
484X484X50 | 450 | 4.51 | 270 | ||
610X610X50 | 700 | 7.13 | 430 | ||
915X610X50 | 1000 | 10.58 | 650 | ||
1170X570X50 | 1200 | 12.57 | 750 | ||
1220X610X50 | 1350 | 14.04 | 850 | ||
320X320X69 | 250 | 2.89 | 180 | ||
484X484X69 | 600 | 6.55 | 400 | ||
610X610X69 | 1000 | 10.37 | 620 | ||
915X610X69 | 1500 | 15.39 | 920 | ||
1170X570X69 | 1800 | 18.28 | 1100 | ||
1220X610X69 | 2000 | 20.41 | 1230 | ||
484X484X96 | 1000 |
|
