HAOAIRTECH v cell compact rigid filter with big air volume for commercial buidings

Company Advantages
1. In order to shore up the position of HAOAIRTECH, it is also necessary to design compact rigid filter.
2. As our quality control procedures eliminate all defects, the products are 100% qualified.
3. To meet customer's expectation and the industry standard, the product has to be subjected to strict quality inspection before shipment.
4. As the product has gained the trust of the clients around the world, it will be more widely used in the future.
5. The product has been widely well-known and has gained buyer's recognition in overseas market.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass  fiber with foil clapboard
Frame	Aluminium/ galvainzed frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	120、150/292mm
Screen	Metal   screen
Efficiency	F6/F7/F8/ F9
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical

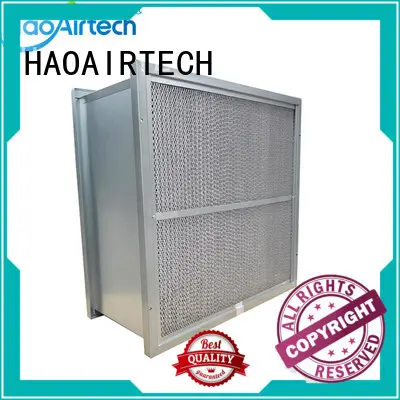

  Picture :

1: Galvanized material frame in interlocker style :                    2: Both side is flange without any screw。

3: Both side is metal screen with one bard for endure high air volume.





Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a manufacturer of compact rigid filter occupying niches that combine strong competitive positions with a high level of market attractiveness.
2. There are advanced production equipment used for production of Rigid box filter .
3. 'Winning high reputation' is the constant goal of Guangzhou HaoAir Purification Technology Co.,Ltd.. Get quote! Guangzhou HaoAir Purification Technology Co.,Ltd. has always been committed to ensuring the quality of service. Get quote!
