HAOAIRTECH v bank h14 hepa filter with hood for air cleaner

Company Advantages
1. HAOAIRTECH h14 hepa filter is produced strictly in line with the quality regulations for interior decoration materials. Before shipping, it will be inspected in terms of formaldehyde content, harmful substances contained in the glue and adhesive, as well as the toxic ingredients in the paint.
2. The product has excellent seaming quality. All seams are straight without curling and pleating, and there is no seam breakage and seam slippage.
3. This product can help relieve the feet and toe problems. It offers enough wearing comfort for those with bunions, ingrown toenails, knee osteoarthritis, etc.
4. An empty area comes across as boring and empty but this product will take up spaces and covers them up leaving a complete and full of life house ambiance.

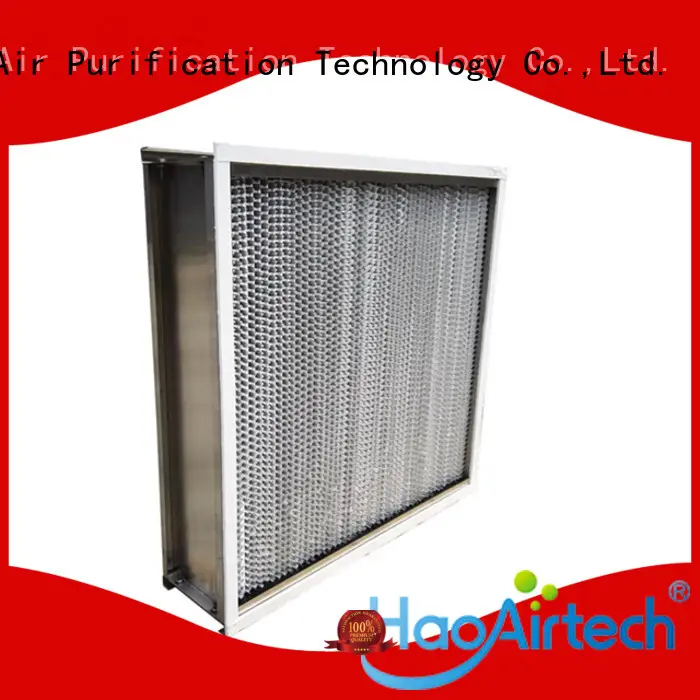

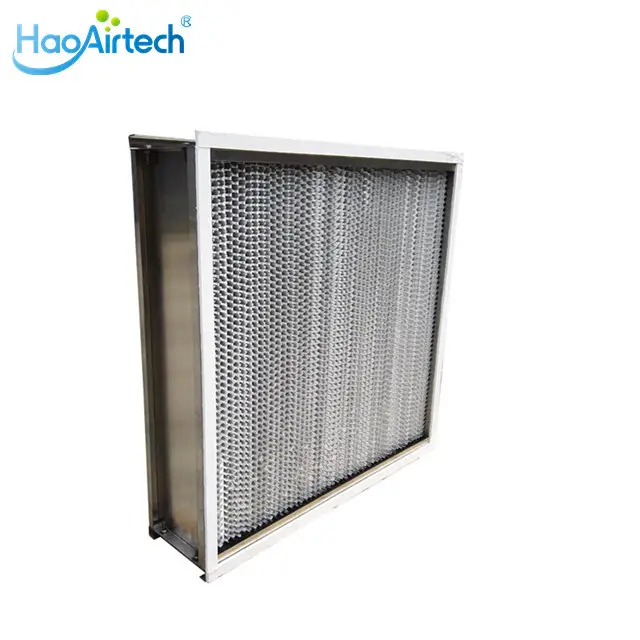

 absolute high temp hEPA filter

Specifications:

 Application: Protection for clean processes at high temperature

Frame: Reinforced stainless steel

Media: Glass Fiber

Max Temperature: 350ºC

Relative Humidity: 100%

Separator:  Aluminium

Gasket : Glass fiber

Sealant: Ceramic

Max Final Pressure Drop: 500Pa

Comment:

Please note installation and assembly instructions! Due to the different thermal expansion

efficient of the individual filter components the ceramic potting may form cracks during

the tempering process. At operating temperature (350 ºC) these filters have an overall efficiency

of 99,97% at 0,3 μm, leackages are possible.

Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air Flow   (m3/h)	Media Area    (m2)	Dust Holding    (g)	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
484X484X120	450	4.4	230	H12<200Pa H13 :<210Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6.0	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Characteristics:

The only high-temperature HEPA filter that can comply with the most stringent FDA GMP requirements.

Pretreated, and prequalified, during the manufacturing process, with an exclusive heat preparation cycle (572º F, 300º C).

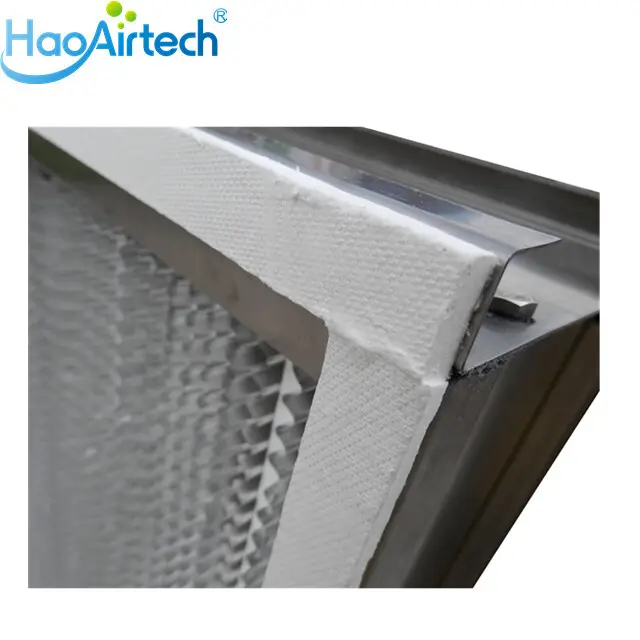

Stainless steel face grid is installed on both the air entering and air exiting sides of the filter to ensure protection of the media pack and add to the filter pack’s structural integrity.

Company Features
1. With its complete h14 hepa filter industry chain, HAOAIRTECH has gained more fame since its establishment.
2. HAOAIRTECH has the intellectually powerful technical force to produce the highest quality air purifiers hepa filter .
3. Our company bears social responsibility in our operation. For example, we pursue the overarching objective of achieving the lowest possible CO2 balance. We do business based on a customer-centric belief system. We aim to deliver a positive experience and providing unparalleled levels of attention and support for our customers. Our goal is to provide top-quality manufacturing solutions that make customers' products stand out with style and be remembered. Our value commitment is based on innovative design, flawless engineering, superior execution and superior service within budget and schedule. Get quote!
