Company Advantages1. HAOAIRTECH portable hepa filter uses certified materials that do not contain toxic chemicals that have been problematic in bedding for many years. The product creates a high cleanliness working environment
2. As portable hepa filter technology widespreadly applied, Guangzhou HaoAir Purification Technology Co.,Ltd.'s research and development capabilities is improved. The product can increase the rate of finished products
3. It is appreciated for its thermal overload protection system. There is a heat output channel that forces the heat out to protect the product from overheat. The product assures an extremely high-efficient manufacturing process
4. The product works perfectly in a modern style kitchen. It is designed with streamline shape, giving an appeal of freshness and brightness to the kitchen. The product is widely used for high-end clean rooms of various manufacturers
Characteristics

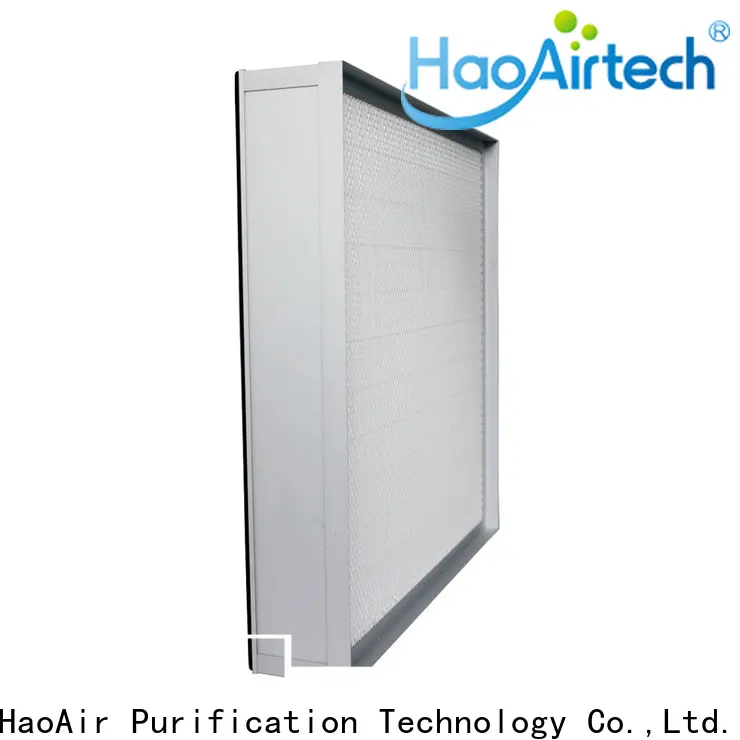

The Knife-edge HEPA filter use the super glass fibre filtration 0.3um particulate.
Patent technology to ensure the V type passage in low resistance.
One side is EVA Gasket , another side is 20 mm high knife –edge compact with gel seal
Hepa air filter 100% can prevent the air leaking in working.
Extrude and anodized aluminum frame in 110mm.
While color metal screen to protect the filtration media without any damage .
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
/ Operating Conditions
Media | Super glass fibre |
Frame | AL frame 110mm |
Gasket | Neoprene or EVA |
Media spacer | Hot melt |
Screen | Metal screen |
Efficiency | >99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
/ Products Parameter
Cabinet size(mm) (W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistanc (Pa) | Efficiency |
320X320X110 | 400 | 4.16 | 250 | <200pa | 400-600pa | H13-H14 |
484X484X110 | 920 | 9.42 | 565 |
610X610X110 | 1450 | 14.9 | 894 |
610X915X110 | 2150 | 22.12 | 1327 |
610X1220X110 | 2850 | 29.33 | 1760 |
570X570X110 | 1300 | 13. | 782 |
570X870X110 | 1900 | 19.65 | 1180 |
570X1170X110 | 2550 | 26.28 | 1580 |
610X762X110 | 1800 | 18.5 | 1110 |
305X762X110 | 880 | 9.1 | 546 |
762X762X110 | 2250 | 23.2 | 1391 |
484X968X110 | 1795 | 18.46 | 1108 |
630X630X110 | 1540 | 15.89 | 953 |
630x915x110 | 2222 | 22.86 | 1371 |
600X600X110 | 1402 | 14.42 | 865 |
600X1200X110 | 2759 | 28.38 | 1703 |
305X305X110 | 367 | 3.78 | 227 |
305x610x110 | 712 | 7.33 | 440 |
305x915x110 | 1057 | 10.88 | 653 |
/ Product Details
part.1
Knife Edge HEPA air filter
part.2
Knife Edge HEPA air filter
part.3
Mini-Pleats Media Compact
part.4
Air Filter Dust Detection Test
Application
Pharmaceutical factory, Biological plant,Food processing plant and other places that require strict control the source of pollution.
/ package
Company Features1. Every machine in Guangzhou HaoAir Purification Technology Co.,Ltd. is well checked before going into operation.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s wish is to be a dependable long-term supplier of clients h12 hepa filter . Inquire now!
