HAOAIRTECH ulpa h14 hepa filter with big air volume for dust colletor hospital

Company Advantages
1. The quality check for HAOAIRTECH hvac hepa filter is strictly carried out. It will be inspected by machines or by visual mainly in terms of board thickness, flatness, warping degree, veneer's paint film, etc.
2. The product has good breathability. It allows air to freely permeate through to maintain appropriate temperature and humidity.
3. This product is not easy to crinkle and crumple. People don't worry that their shape can't be kept after bending.

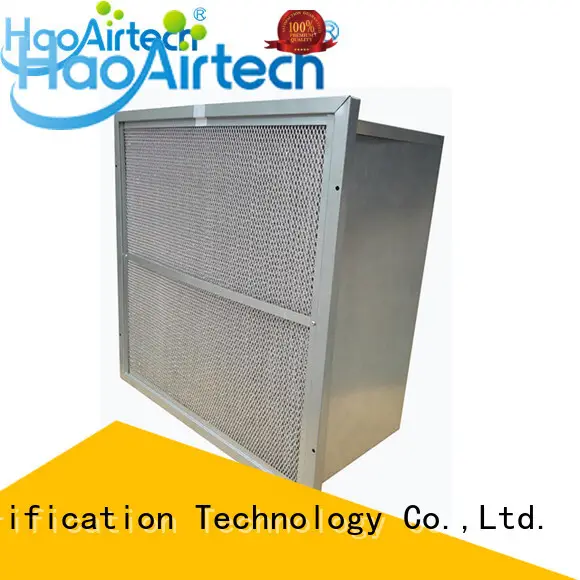

Rigid Cell Filters

Intorduce :

     MERV 11 rigid cell air filters provide between 80% and 85% efficiency for filtering particles between

3 and 10 microns in size (such as mold spores, dusting aids, and cement dust).

 They also provide between 50% and 65% efficiency for filtering particles between 1 and 3 microns in size

(such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% efficiency

for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei,

insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 10 rigid cell air filters.

Products Parameter：

Dimension   (mm) (W*H*D)	Pack NO	Rate Air Flow  (m3/h)	Media Area (m2)	Dust Holding    (g)	Efficiency	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
592X287X292	4	2100	11.02	660	F7 65%@0.5um	<80Pa	300-350pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750
592X287X292	4	2100	11.02	660	F8 85%@0.5um	<100pa	350-400pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	4	5400	29	1750
592X287X292	4	2100	11.02	660	F9 90%@0.5um	<120pa	400-450pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750



Application:

1: Optical electronics, biological pharmaceuticals, medical laboratories, food and

    beverages, daily chemical semiconductors, precision instruments and other industries

   Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms.

 2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,

 3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is the No. one brand of h14 hepa filter line.
2. Over the years, we are keeping expand into foreign markets through an effective sales network. Currently, we have corporated with many customers from different countries like United States, Japan, Russia, and so on.
3. The persistent aim of HAOAIRTECH is to be one of the most competitive hepa filter h14 exporters. Check it! HAOAIRTECH holds the belief that pursuing the excellence will bring more benefits for itself. Check it! As an experienced manufacturer of air purifiers hepa filter , we will surely satisfy you. Check it!
