We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

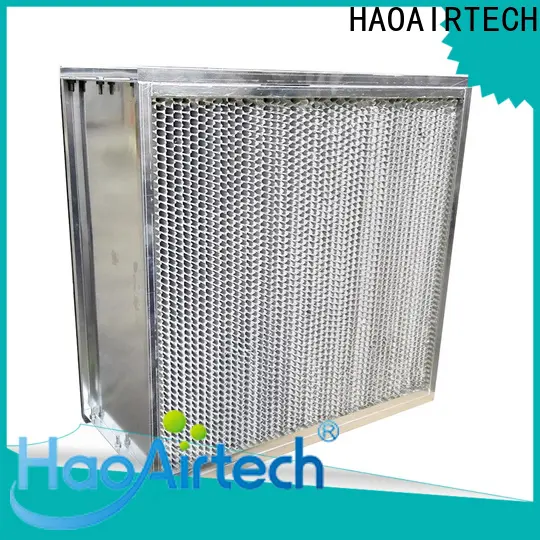

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 1

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 2

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 3

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 4

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 5

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 6

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 7

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 8

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 9

HAOAIRTECH ulpa air filter with al clapboard for electronic industry

Brand:

HAOAIRTECH

Model number:

HA-HEPA-A Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Company Advantages
1. The manufacturing process of HAOAIRTECH hepa air cleaner is safe and reliable. The product can withstand high temperature
2. With high-grade fabric that’s designed to wick away moisture, this bedding helps regulate temperature while keeping the skin drier. The product is of high purification rank
3. Under the strict supervision of quality experts, 100% of the products have passed the conformance test. The product will greatly improve the quality of factory-made products
4. We regard quality as our top priority and ensure reliable product quality. With the shell galvanized, the product is crack-resistant and wear-resistant

Characteristics

The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 10

/ Operating Conditions

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

/ Products Parameter

Dimension(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa)(H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

/ Primary Resistance & Face Velocity Diagram

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 11

/ Product Details

part.1

EVA Gasket for Heap air filter with flange

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 12

part.2

Outwardly Frame for heap air filter

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 13

part.3

Deep Pleats Media Compact

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 14

/ package

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 15

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 16

HAOAIRTECH ulpa air filter with al clapboard for electronic industry 17

Company Features
1. Quality assurance technology is fused in each stage of ulpa air filter quality formation.
2. We will direct the organization to become a famous hepa filter manufacturers maker. Contact!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
