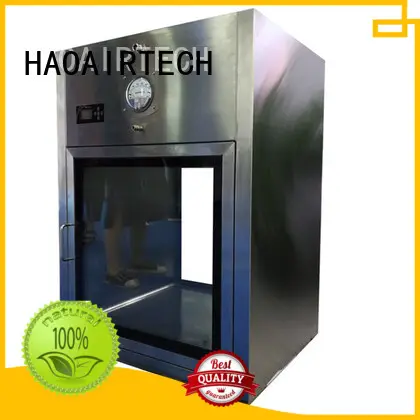

HAOAIRTECH stainless steel pass box manufacturers with laminar air flow for hvac system

Company Advantages
1. The manufacture of HAOAIRTECH pass box manufacturers involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis.
2. The product has a good cushioning effect. The materials used in it can absorb much more impact under low impact energy.
3. The product is highly resistant to rust. It has gone through corrosion-resistant treatments which greatly optimize its chemical properties.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. quickly controls product quality and trace ability to ensure that quality meets the design specifications and meets customer's requirements.

TECHNICAL SPECIFICATIONS

• Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished

•  electrically interlocked doors with proper gaskets

•  traffic light for door status

•  control panel

• differential pressure gauge

• HEPA filter grade F-14

• Motor fan

• Working area classification ISO 5

 Product Characteristic :



 Clean Room Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring

the material from and into the classified clean room without contaminating the air of clean room.

In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.

Products Parameter：

Air cleanliness :	ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities :	0.45 ± 0.05 mps (90 ± 20 FPM)
Air Flow :	Horizontal / Vertical
Noise Level :	Less than 65 dB
Vibration Level :	Minimum
POWER SUPPLY :	230V AC, 1-Ø, 50HZ
MOC :	GI Powder Coated / SS-304 / SS-316 / Combination
Door :	Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle
	Internal Coving for easy cleaning
	Two Stage filtration
	EU7 - Intermediate Filter (95% down to 3 micron)
	EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
	Fluorescent Lights (interlocked with Door)
	UV Light (interlocked with Door)
Differential Pressure Gauges :	01 No. (HEPA Filter)
Door Opening With Solid State Electronic Inter Locking Mechanism	When both door closed; both are elec. Magnet locked; For open press touch screen to release the door
	At A Time Only One Door Opened
	Audio / Visual Indication for material is kept inside the pass box
	In close condition of both door : UV Light will be on,
	When open any one door : UV will off and FL will on
DOP Port
DQ, IQ, OQ, PQ Documentation
