HAOAIRTECH stainless steel pass box clean room with conveyor line for clean room purification workshop

Company Advantages
1. HAOAIRTECH pass box clean room is manufactured using top-class materials and advanced tools and equipment. The product ensures the smooth refreshing breath of users
2. This product helps reduce energy bills. Using such an appliance will definitely cut the spending at home, workplace, or industries. The product assures an extremely high-efficient manufacturing process
3. The product has the desired cushioning effect. It can evenly distribute the load and stress across the feet to reduce the impact of landing. The product can be used to save time for cleaning and vacuuming

Electronical Laboratory Pass Box To Clean Room

Introduce:



Air Showers are installed at the doorways of Cleanrooms to prevent contaminants attached to workers and materials from being brought into the room. High-speed air cleaned through HEPA filters is blown directly on people and materials to remove attached dust. In addition, there are two doorways, and as these are structured so that they cannot both simultaneously be open, this functions as an airlock insulating the Cleanroom from the outside air. The interior of the Air Shower is structured so that is it typically cleaned when not in use to prevent external contaminant particles from flowing in.

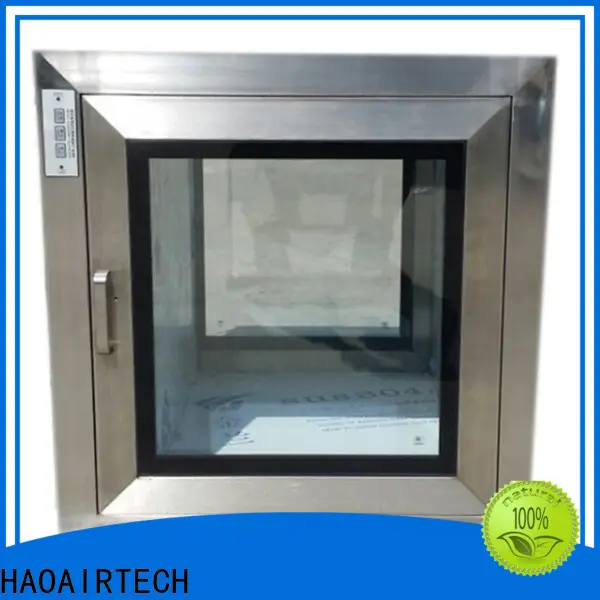

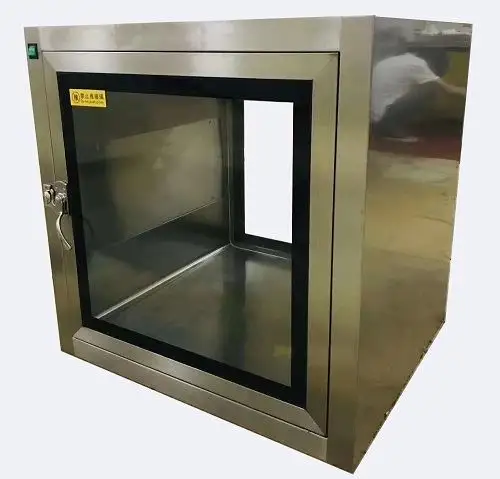

Pass Boxes are double-door box-shaped devices that are used when materials are brought into the Cleanroom. Similar to Air Showers, they are structured so that both doors cannot simultaneously be open, so they function as an airlock insulating the Cleanroom from the outside air. Models featuring Air Shower functions and models featuring Clean Unit functions are also available.



Application:

Widely used in clean environment, such as micro-electronics, laboratory, national defense, precise instrument, bio-pharmaceutical, opto-electronics, aseptic packaging, etc.

Products Parameter:

MODEL	HA-DPB500
External size (mm) (W*D*H)	700x570x1050mm
Work zone (mm) (W*D*H)	500x500x500mm
Purification rank	Class 100
Material  （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system	1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation .  3: Double layer vacuum glass have very good appearance  4: Software computer interlocking door with long time using life  5: Air speed is 0.45m/s adjustable
UV light	1 PCS
Power supply	220v/50HZ
packing size (mm)	800x870x1300mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Outlook:

What We Can Do For You?

 1.  Front end consultancy support, Concept design and engineering.

 2.Clean room design and construction.

 3.Unique range of clean room modular walls and ceilings, flooring system.

 4.Cleanroom accessories (pass boxes, step over benches, change room furniture and fittings, sampling and dispensing booths, air showers, etc.) GRP clean room doors.

 5.Equipment selection ,Validation master plans, protocols and continuous monitoring systems regulatory advise.

 6.HVAC Design and Installation.

Company Features
1. The production process in Guangzhou HaoAir Purification Technology Co.,Ltd. is professional.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. holds the firm belief of being the most popular pass box clean room supplier. Inquire!
