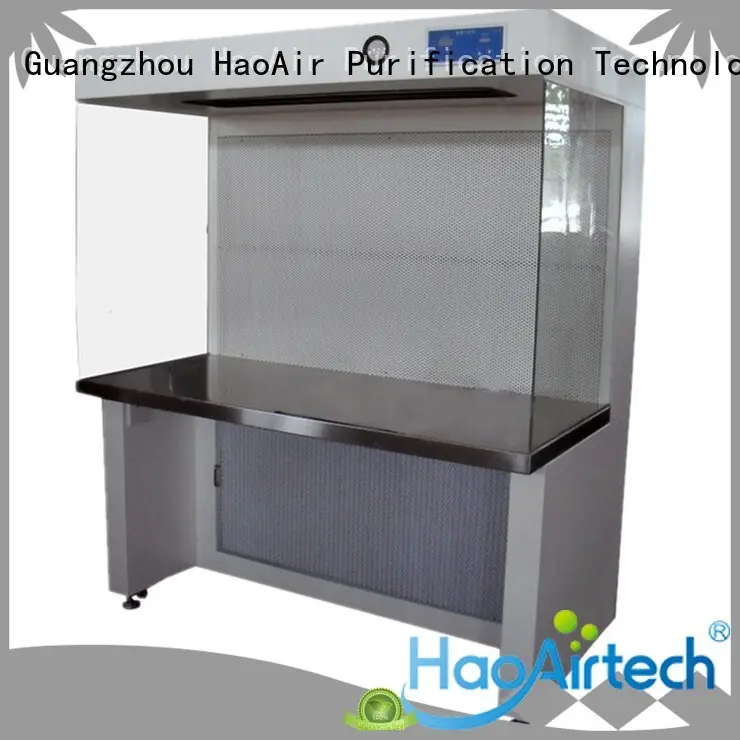

HAOAIRTECH stainless steel laminar flow hood for sale clean benches for optoelectronic industry
1. HAOAIRTECH horizontal laminar flow hood has a unique design. Various factors, such as environmental, social, functional and contextual factors are considered to design this product. The product can be used to save time for cleaning and vacuuming
2. The product's shock absorption system guarantees comfort and provides support so as to prevent foot fatigue and ease foot pain. The product's rigid frame forestalls shrinking or bending
3. The product has good refractoriness under load capacity which is directly determined by the effective porosity and the volume density. The product will greatly improve the quality of factory-made products
4. The product stands out for its good electromagnetic compatibility. It has an adequate level of immunity to the disturbances in its environment. It highly conforms to the dustless workshop management standard
Product Features：
Horizontal laminar flow blow from back direclty to worker's face.
High cleanliness
Low noise and movability
It can be connected into assembly line
working life is as long as 30 thousand hours or more.
maintenance-free , small vibration,
stepless speed regulation
Introduction:
Horizontal laminar flow bench is a kind of air purifying equipment which can provide local dustless and aseptic working environment, and can control and discharge the polluted air artificially through a special filtering channel to avoid harming people and the environment.
Application:
It widely used in biological laboratory, medical, health, biopharmaceuticals, optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification.
It has a good effect on improving technological conditions, protecting the health of operators, improving product quality and product rate.
Characteristic：
Horizontal laminar flow bench with high purification rank class100 or class 10 for
local space in cleanroom .
It adopts super thin mini-pleats high efficiency air filter take up very small space.
Stainless steel worktable, plexiglass enclosure .
Equipped with UV lamp remote control electric interface.
Using touchable electronic control panel, the fan air volume can be adjusted in steplessly ,
This make sure the wind speed in the working area is always in keep an ideal state.
Equipped with differential pressure gauge, clearly indicating the pressure difference between the two sides of the high-efficiency filter, and promptly remind the replacement of air filter.
The dismantling large air volume pre filtration coarse efficiency filter can better protect the high-efficiency filter and ensure the wind speed.
Products Parameter：
HA-HCB-2 | HA-HCB-3 | ||
External size (mm) (WXDXH) | 1500X900X1580 | ||
Work zone (mm) (WXDXH) | 930x600x650 | 1180x600x650 | 1480 x600x650 |
Purification rank | FS209E 100Rank | ||
Rating airflow(m3/h) | 1200m3/h | 1800m3/h | 2300m3/h |
Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
Average wind speed | 0.3-0.6m/s Adjustable | ||
Intensity of illumination | >300lx | ||
30WX1 | 40WX1 | ||
(Option) | 1：Entirety Sus304/201 2：External is steel with power coated, Internal is SUS304 3: External is steel with power coated. Internal is SUS201 | ||
Control board | 1: Control the air speed up/down 2: Power off /on 3: Working time display 4: Working area light on/off 5: Alarm indicator | ||
Power | 280W | 405W | 490W |
Noise | <65dB | ||
Power supply | 220V-240V AC 50HZ | ||
Packing size | 1160x980x1780mm | 1400x1020x1780mm | |
Draw :
Illustration :
1: Control board 2: Power Cable 3: Purification light 4: Pressure indication 5: Hepa air filter 6：Toughened glass 7: Socket 8: Fan 9: Per-filter 10: Flexible wheel
11:Support Leg
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has surpassed other domestic companies in technology and capacity for manufacturing laminar flow hood for sale . Guangzhou HaoAir Purification Technology Co.,Ltd. concentrates on product quality, using standard processes and rigorous quality testing.
2. HaoAir Purification has established a complete project R&D management system for laminar airflow cabinet .
3. To win the leading market, HAOAIRTECH has been utilizing the most advanced technology to manufacture air flow hood . We actively seek feedback to grow. Each piece of feedback from our clients is what we should pay much attention to, and is the opportunities for us to face and find out ourselves problems. Hence, we always keep an open mind and respond actively to clients' feedback. Please contact us!
