We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 2
HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 3
HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 2
HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 3

HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory

Brand:
HAOAIRTECH
Model number:
HA-LFB
Material:
Steel with power coated
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 working days after we get the deposite
MOQ:
1sets
Country of Original:
China
Supply ability:
100set/month
Payment term:
100%T/T in advance ,100% LC at sight against with document
Application:
Pharmaceutical cleanroom
Inquiry
Product Name
Capsule Cleanroom
Other Name
SoftWall Cleanroom
Guarantee Time
12 months
Purificaiton Rank
class10-class100
Dimension
2000x3000x2590mm
Power Supplier
220V/50HZ OR 60HZ

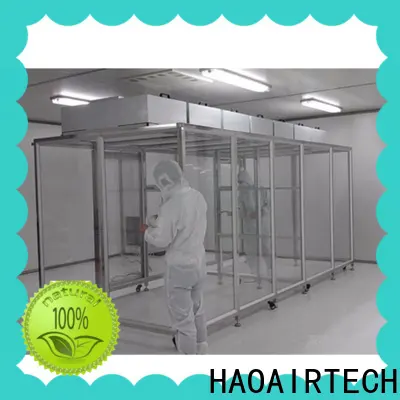

Capsule SoftWall Cleanroom

HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 4


Product Features:

1: Standard models are available in US Federal Standard 209E Cleanroom Class 10 to Class 10,000 cleanliness configurations and various sizes.

2: Standard soft capsule body is an industrial-grade structure constructed of Electro-galvanised steel with an abrasion-resistant white oven-baked powder-coated finish.

3: Standard cleanroom ceiling grid .

4: Standard height is 7' measured from filter face to floor.

5: Free-standing design requires no suspended ceiling supports and allows for a fast and easy installation.

6: Optional castor wheels ensure convenient relocation of the structure after installation.

7: Energy-efficient Airstream Fan Filter Units are easy to install (simply place units on the Soft Capsule's ceiling grid structure) and are available with a wide range of construction configurations.

8: Streamline Soft Capsule cleanrooms use standard 2'x4' Airstream Fan Filter Units.

9: Superior mini-pleat HEPA (99.99% typical efficiency) or ULPA (99.999% typical efficiency) filters provide optimum cleanliness and product protection.

10: Tear-drop style 5000k warm-white fluorescent lighting creates a comfortable working environment.


Products Parameter:

Item

Capsule soft wall cleanroom

Purification Rank

Class10 to class 100.000

Dimension L*W*H

According client request

Fan Filter Unit

Dimension

2x2,2x4,4x4 optional

Structural Material

Stainless steel, aluminum alloy, AI-Zn plate

Power Supply

220V/50HZ AC

Air Filter

Mini-pleats HEPA /ULPA Air filter
99.97%@0.3um -99.995%@0.3um

Frame Material

Aluminum alloy/stainless steel201/304

Wall Material

Acrylic /sandwich panel/anti-static acrylic

Ceiling

Aluminium –plastic panel , sandwich panel

Air Conditioner

Constant temperature air conditioning
Or Constant temperature and humidity air conditioning

Fluorescent Lighting

LED light or T5 (Optional )

Stainless Steel Support

D: 8mm x50mm leg

Castor Wheel

Antistatic PU Material

Air Shower

Optional

Pass Box

Optional

Air Flow Floor

Optional

HAOAIRTECH simple cleanroom cleaning supplies vertical laminar flow booth for semiconductor factory 5


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
