HAOAIRTECH secondary v rigid filter with big air volume for industry

Company Advantages
1. The production of HAOAIRTECH v rigid filter includes the following stages: concept development, detailed mechanical design&control systems design, manufacture, and final commissioning. Made of stainless steel SUS304, it is beautiful and durable
2. This product is especially suitable for those who want to renovate their bathroom/washroom or those who want to enhance the aesthetic of bathroom experience. The product focuses on the good physical conditions of the workers in the workshop
3. This product has the characteristics of stable performance and good durability. The product assures an extremely high-efficient manufacturing process
4. The long-lasting and stable performance makes this product a great advantage in the industry. With premium quality, the product is also fit for working under difficult operating conditions

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass   Fiber
Frame	AL/GL   frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	150/292mm
Screen	Metal   screen
Efficiency	F7/F8
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical .

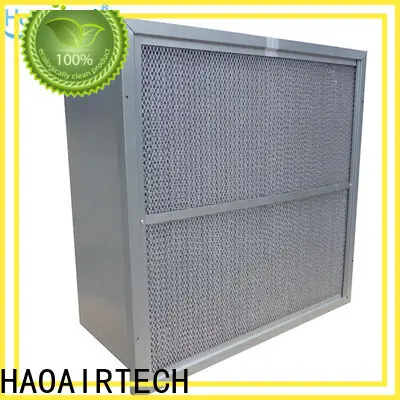

   Picture：

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a high-tech firm which engages in research, development and production of full range of v rigid filter .
2. We have brought up a team of professionals working at our factory. Their ample knowledge and experience help us position ourselves strongly in the industry. With their motivation, we strive hard and design and develop products in compliance with modern trends and styles.
3. The service concept of Guangzhou HaoAir Purification Technology Co.,Ltd. has always been ridgid air filter . Check it!
