We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

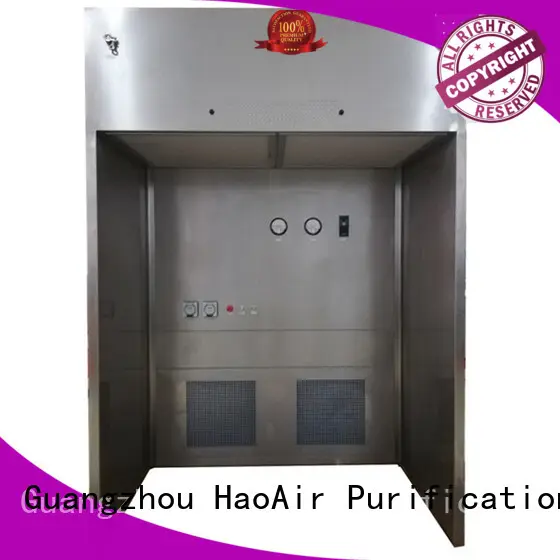

HAOAIRTECH sampling booth with lcd touchable screen display for pharmacon
1. HAOAIRTECH system booth is developed as per the specifications laid by customers.
2. This product is safe to use. It uses the appropriate safety devices, including emergency stop buttons and protective covers.
3. Installation service is also available in HAOAIRTECH.
4. HAOAIRTECH has been attracting more and more customers since the development of mature sales network.
Introduction:
When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing,
weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.
By our fully trained engineers to ensure the system fully conforms to your requirements.
To complete the package, our dedicated Aftersales department will supply total support.
Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both
Various heights and widths (up to 6m) are available
Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum
Single pass/once through airflow systems used in applications where solvent vapors are present
Product Features：
Stainless steel or epoxy- coated mild steel construction
High efficiency EC fan system
Safe change the HEPA filter
Overhead lighting with supply plenum
Mobile work benches
Hazardous area electric option
Flush mounted computer integration
From/side access doors
PLC Controlled audible and visual alarm package
High level exhaust grilles
Material and personnel airlocks systems
Products Parameter：
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) (W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) (W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material （Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams.
| ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a sampling booth manufacturer integrating production and sales.
2. Over the years, we have completed many projects with famous brands and companies from all over the world. From the feedback they gave, we are confident to scale our business.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. is willing to join hands with all parties for further development in powder dispensing booth field. Ask online! Guangzhou HaoAir Purification Technology Co.,Ltd. aims to provide customers with professional and quick pres-sale, sales, after-sales service. Ask online!
