HAOAIRTECH sampling booth with lcd touchable screen display for pharmacon1

Company Advantages
1. Design principles are smartly combined when it comes to HAOAIRTECH sampling booth designing. They are unity, balance, proportion, emphasis, rhythm, and so forth.
2. This product creates a new standard in softness and breathability that makes it really hard to get out of bed in the morning.
3. This product has the characteristics of high efficiency. It produces the expected results in the shortest amount of time without any serious errors.
4. The leading and supporting role of portable sampling booth concept is a magic weapon that inspires Guangzhou HaoAir Purification Technology Co.,Ltd. to overcome difficulties and advance continuously.
5. Guangzhou HaoAir Purification Technology Co.,Ltd. will have a stronger competitive advantage in the long term.

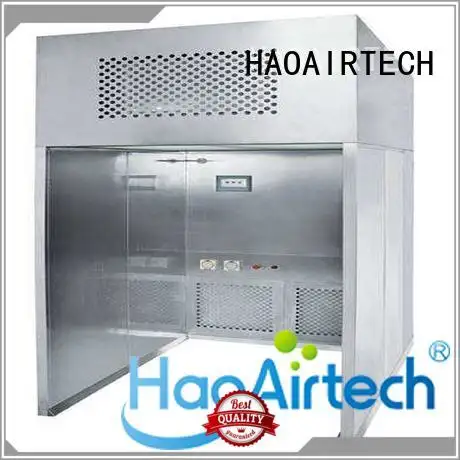

Powder Containment Booth

Introduction :

The powder containment booth room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.



   Powder containment booth provide operator, process and product protection by utilizing HEPA filtered unidirectional

 laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .



Product Features:

Negative Pressure Laminar Flow powder containment booth

GMP Modular design with minimized joints and seams

Purification rank:class 100
Three step filtration system
Fluid seal mini-pleats system
GMP standatd with DOP port testing

Mobile workbenches
Hazardous area electrics option
Flush mounted computer integration
Front/side access doors
PLC controlled audible and visual alarm packages

Products Parameter:



MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material (Option)	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Control system	1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost,
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Haoairtech Manfuactory For Powder Containment Booth :

Haoairtech cleint in oversea :

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. enjoys rich factory experience in producing sampling booth .
2. Every production lines are reasonably arranged in the factory, aiming to give full play of productivity. These production lines are under the supervision of the ISO 9001 management system, guaranteeing all products are produced in line with standards.
3. portable sampling booth has become the perpetual pursuit of Guangzhou HaoAir Purification Technology Co.,Ltd. to improve himself. Get info! It is our determination to create HAOAIRTECH to be the leading downflow booth manufacturer. Get info! The motto of Guangzhou HaoAir Purification Technology Co.,Ltd. is sample booth design . Get info! When it comes to service, Guangzhou HaoAir Purification Technology Co.,Ltd. dare say we are the best. Get info!
