We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

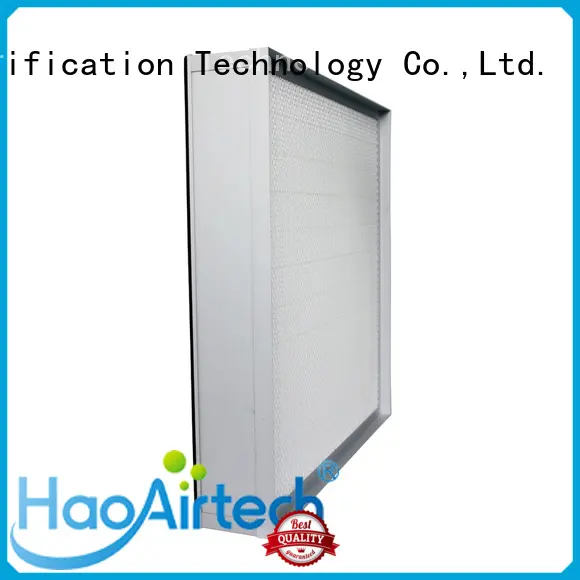

HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry1
Patent technology to ensure the V type passage in low resistance.
One side is EVA Gasket , another side is 20 mm high knife –edge compact with gel seal Hepa air filter 100% can prevent the air leaking in working.
Extrude and anodized aluminum frame in 110mm.
While color metal screen to protect the filtration media without any damage .
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Media | Super glass fibre |
Frame | AL frame 110mm |
Gasket | Neoprene or EVA |
Media spacer | Hot melt |
Screen | Metal screen |
Efficiency | >99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Cabinet size(mm) (W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistanc (Pa) | Efficiency |
320X320X110 | 400 | 4.16 | 250 |
<200pa |
400-600pa |
H13-H14 |
484X484X110 | 920 | 9.42 | 565 | |||
610X610X110 | 1450 | 14.9 | 894 | |||
610X915X110 | 2150 | 22.12 | 1327 | |||
610X1220X110 | 2850 | 29.33 | 1760 | |||
570X570X110 | 1300 | 13. | 782 | |||
570X870X110 | 1900 | 19.65 | 1180 | |||
570X1170X110 | 2550 | 26.28 | 1580 | |||
610X762X110 | 1800 | 18.5 | 1110 | |||
305X762X110 | 880 | 9.1 | 546 | |||
762X762X110 | 2250 | 23.2 | 1391 | |||
484X968X110 | 1795 | 18.46 | 1108 | |||
630X630X110 | 1540 | 15.89 | 953 | |||
630x915x110 | 2222 | 22.86 | 1371 | |||
600X600X110 | 1402 | 14.42 | 865 | |||
600X1200X110 | 2759 | 28.38 | 1703 | |||
305X305X110 | 367 | 3.78 | 227 | |||
305x610x110 | 712 | 7.33 | 440 | |||
305x915x110 | 1057 | 10.88 | 653 |
Application
Pharmaceutical factory, Biological plant,Food processing plant and other places that require strict control the source of pollution.
