Company Advantages1. Balancing specifications and creativity is a key point in HAOAIRTECH hepa filter material design. Target audience, appropriate use, cost efficiency and feasibility are always kept in mind before starting with its research and concept design. The product can maintain high air quality of the factory
2. The product is highly competitive and cost competitive and will surely become one of the best-selling products on the market. With premium quality, the product is also fit for working under difficult operating conditions
3. The product is resistant to corrosion. The materials used have been treated to resist the impact of chemical acids, strong cleaning fluids or hydrochloric compounds. The product prevents viruses and bacteria from spreading
4. The product is not subject to displacement. Under the pressure of sealing fluid and elastic force, the sealing end is always automatically kept snapping. Automatic operation is the highlight of the product
5. This product comes with point elasticity. Its materials have the ability to compress without affecting the rest of the mattress. The product comes with 1-2 years of warranty period
Characteristics

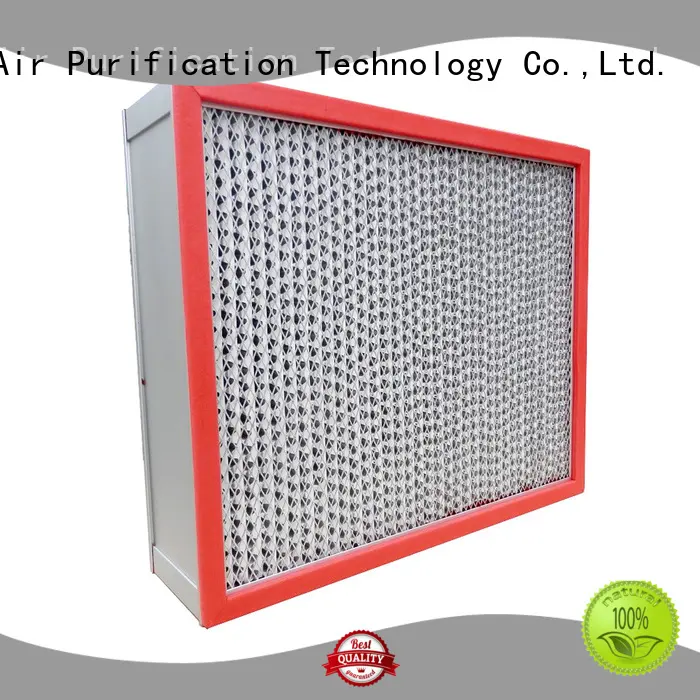

Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial high Temperature gasket can endure the 250℃ temperature continuous.
The aluminum or stainless steel frame for your choose.
High temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each high temperature HEPA air filter
Filtration Efficiency: H13,H14,(EN1822). 99.5%-99.995%@0.3um
Applied to the special high temperature paint room or oven room
/ Products Parameter
Dimension(mm) (W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance
(Pa) | Finally
Resistance
(Pa) |
484X484X120 | 450 | 4.4 | 230 | H13 :<200Pa
H14 :<220Pa | 400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6.0 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH pleat hepa air filters for home with large air volume for filtration pharmaceutical factory 12]()
/ Product Details
part.1
Aluminum foil clapboard
part.2
High Temperature Gasket
part.3
Red Color High Temperature Glue
part.4
Air Filter Dust Detection Test
Application
High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.
/ Our Service
Our Service
1: 100% scan air leaking test for each HEPA air filter , test report accompany all of
HEPA air filter.
2: 1 pcs in one carton .each air filter warp by PE Bag.
3: Small order is plywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. has differentiated itself in providing hepa filter material . We have earned a good reputation in the domestic market.
2. HAOAIRTECH is equipped with a full set of production technology to produce hepa air filters for home.
3. HAOAIRTECH shares a great dream of being a worldwide high temperature
filter manufacturer and wholesaler. Inquire!
