HAOAIRTECH plc control pass box manufacturers with arc design gmp standard for cargo
1. pass box manufacturers is simple in design and convenient in construction.
2. The product features a rugged construction. Made of heavy-duty metals, it is able to withstand various kinds of elements such as shocks and vibration.
3. The product takes a lead in its market and has a broad market application prospect.

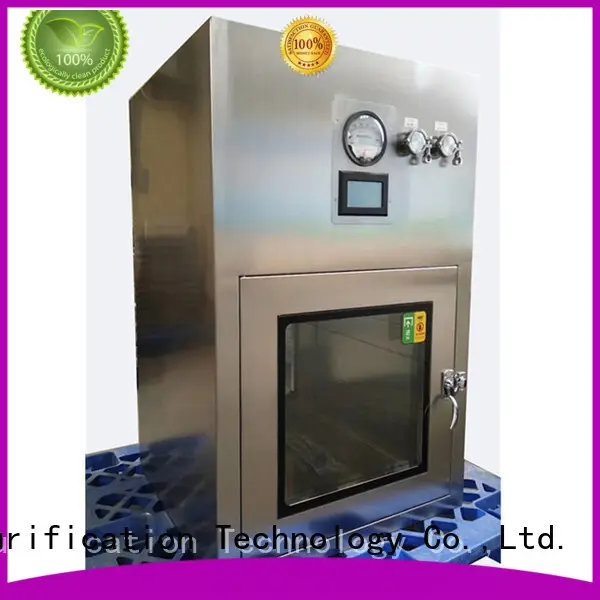

Dynamic Pass Through Boxes
TECHNICAL SPECIFICATIONS:
Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished
Electrically interlocked doors with proper gaskets
Traffic light for door status
Control panel
Differential pressure gauge
HEPA filter grade F-14
Motor fan
Working area classification ISO 5
Product Characteristic :
dynamic pass through box can easily be installed between two different classified areas/rooms for material pass through.
The two doors are opened and interlocked at the same time to avoid simultaneous opening and a traffic light on both sides shows door status.
The pass box is entirely made of AISI304 stainless steel with a class B work chamber, compliant with cGMP Annex I, ensured by HEPA H14 filters.
At rest the electric lock doors are usually open. The doors are interlocked, therefore at the opening of one of them, the other one is blocked.
Pressing the button on the chosen side of the box will open the corresponding door, consequently the door will be locked.
Products Parameter：
| Product | Dynamic Pass Through Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
| Blower | Branded Heavy duty |
| Noise | <78 |
| Power Supply | 220 / 230 Volts |
| Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Air Shower Facility | Optional |
| Cleanliness | Class 100 |
| Certifications | CE and ISO |
