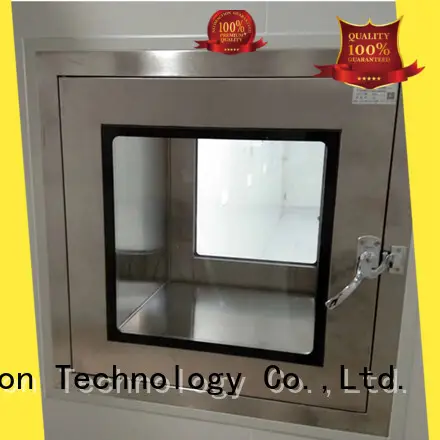

HAOAIRTECH pass through box with baked painting for electronics factory
1. HAOAIRTECH has been equipped with professional team to design more attractive pass through box.
2. Adopt strict quality control system to provide strong guarantee for product quality.
3. This product is widely recommended and valued for its superior quality and long-lasting performance.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. provides world-wide intimate service.
Antibacterical Pass Boxes
What is antibacterical pass-through chamber / box?
The pass-through chamer/box is used as an auxiliary equipment for the clean room design. It is mainly used for the delivery of small items between the clean area and the sub clean area, so as to reduce the number of times the clean room in order to prevent the dust get into clean areas.
Structure of a antibacterical pass-through chamber?
1. Mechanical interlocking device: The internal interlocking is realized by mechanical means. When one door is opened, the other door cannot be opened, and the other door must be closed before another door can be opened.
2. Electronic interlock device: internal use of integrated circuit, electromagnetic lock, control panel, indicator light, etc. to achieve interlocking, when one of the doors is open, the other door open indicator light is not bright, telling that the door can not be opened, and electromagnetic The lock action implements interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator light illuminates, indicating that the other door can be opened.
Cleanroom Project Cross-section Diagram
The area marked with the blue part in the figure is an example of the use of the pass chamber in the cleanroom. It acts as a barrier buffer for passing the goods from the clean to sub-clean(or reverse) areas to block dust from entering the high cleanliness area.
Main technical parameters(size can be customized):
Model | Mechanical interlock | Electronic interlocking |
Externial size (mm) | W760*D660*H660 | W760*D670*H660 |
Internial size (mm) | W600*D600*H600 | W600*D600*H660 |
Supply voltage | ------- | 220V 50HZ |
Box material(external) | Cold-rolled steel | |
Box material(within) | Stainless steel | |
Appearance color | White | |
Box surface | Spraying plastics | |
Product Specification：
1. The short-distance transfer window is made of stainless steel plate, which is smooth and wear-resistant.
2, long-distance transfer window work surface uses a powerless roller, easy to transfer items
3. The two sides of the door are provided with mechanical interlock or electronic interlock, electronic latching device to ensure that the two sides of the door can not be opened at the same time.
According to customer needs, the order can be a variety of non-standard size and floor-standing transfer window.
Product Categories:
The pass-through chamber can be divided into: standard transfer window and air shower transfer window.
Related Product acessories:
Ultraviolet germicidal lamp, buzzer, walkie-talkie, electronic interlock
