We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 1
HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 2
HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 3
HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 1
HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 2
HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 3

HAOAIRTECH pass through box embedded lamps for clean room purification workshop1

Brand:
HaoAir
Model number:
HA-DPB Series
Material:
Coldrolled Steel with Baked Painting or Stainless steel 304/316/201
OEM /ODM:
Available
Certificated:
CE,RoHS
Start port:
Guangzhou, Shenzhen, China port
Delivery time:
5-10 Working Days
MOQ:
1 unit
Country of Original:
China
Supply ability:
400-500 units per month
Payment term:
T/T, L/C, D/P,D/A,Western Union
Application:
Pharmacy Industry, Food Factory, Semi-conductor workshop
Inquiry

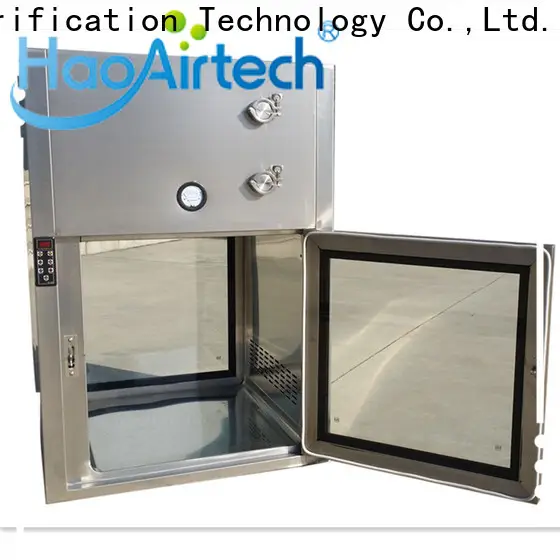

High Performance SUS304/SUS316 Clean Room Dynamic Pass Box

Dynamic Pass Box Introduction:

The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.


Dynamic Pass Box Features :


1.Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room.

2.It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp.

3.The construction material can be SUS or SGLC materials.

4.It is time saving and enables the convenient cargo transfer.

5.All the sizes can be customized.



The Dynamic Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.


Clean Room Dynamic Pass Box Specification:


Clean Room Dynamic Pass Box HA-DPB Series

Model

HA-DPB500

HA-DPB600

HA-DPB700

Outer Size(mm) (WXDXH)

700x570x1050

800x670x1150

900x770x1250

Inner Size(mm)(WXDXH)

500x500x500

600x600x600

700x700x700

Construction

1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting.

2. External is steel with power coated, internal is SUS304.

3. External is steel with power coated, internal is SUS201.

4. External is steel with power coated, internal is SUS316.

Air Velocity(m/s)

0.45m/s (adjustable)

HEPA Efficiency

99.995%@0.3um

HEPA Filter Type

Mini-pleats Gel Sealant HEPA Filter

Test Port

External PAO/DOP test port

Magnehelic

1 set

Inner bottom

Arc Shaped

Interlock

Micro-computer interlock

Power

150W-350W, 220v/50Hz

Clean Room Dynamic Pass Box Details:

HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 4


Clean Room Dynamic Pass Box Application:

HAOAIRTECH pass through box embedded lamps for clean room purification workshop1 5



Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
