HAOAIRTECH pass box manufacturers with arc design gmp standard for hvac system

Company Advantages
1. HAOAIRTECH pass box manufacturers follows the five fashion design principles of emphasis, rhythm, unity, balance, and proportion, and successful and eye-catching design.
2. The product features wear and tear resistance. It is made of wear-resistant materials that allow the product to withstand heavy use.
3. This product is highly anti-bacterial. Its fabric allows air circulation that discourages fungi from growing in dark and moist environments.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has established a complete set of product development, production control, logistics distribution and after-sales service system.

MODEL	HA-DPB500	HA-DPB600	HA-DPB700
External size (mm)      (W*D*H)	700x570x1050mm	800x670x1150mm	900x770x1250mm
Work zone (mm)      (W*D*H)	500x500x500mm	600x600x600mm	700x700x700mm
Purification rank	Class 100
Material （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3:External is steel with power coated,    Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated.    Internal is SUS201(T=1.2/1.5mm)
Control system	1: Gel Sealant mini-pleats HEPA air    filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round    shape without any dust accumulation . 3: Double layer vacuum glass have very    good appearance 4: Software computer interlocking door    with long time using life  5: Air speed is    0.45m/s adjustable
UV light	1 PCS
Power supply	220v/50HZ
packing size    (mm)	800x870x1300mm	1000x870x1400mm	1100x970x1500mm
Packing    material	Standard Export Poly wood Packing(Fumigant free material)

1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light

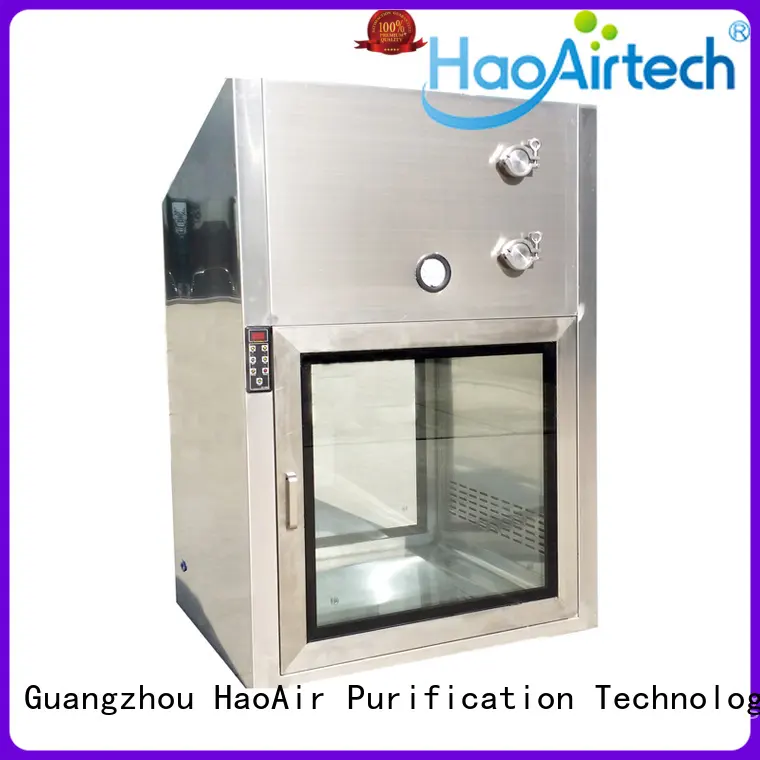

Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room. One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.

/ Certificated:

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has bee a top-notch supplier of pass box manufacturers . Over the years, we have accumulated years of experience in design and manufacture.
2. We have introduced the world’s advanced production facilities, including a new generation of testing machines and highly efficient automatic machines. These machines can definitely help promote product quality and improve workmanship levels.
3. We aim to become a global leading company. We are confident that we can provide the ideal elements within our value chain to attain the maximum benefit for each individual customer. We plan to adopt green production. We promise not to discard the waste materials or residues generated during production, and we will handle and dispose of them properly according to national regulations. We are a great example of social and environmental responsibility in approaches to sustainability in a corporate context. Sustainability efforts start in manufacturing lines, such as saving water and electricity consumption and reducing discharges.
