HAOAIRTECH pass box clean room with conveyor line for hvac system

Company Advantages
1. When it comes to pass box clean room , HAOAIRTECH has users health in mind. All parts are CertiPUR-US certified or OEKO-TEX certified to be free of any sort of nasty chemicals. The product has passed strict air speed test
2. Guangzhou HaoAir Purification Technology Co.,Ltd. is deeply favored by customers with its clients throughout the world. The product can increase the rate of finished products
3. This product is safe enough. The dyes of fabrics are treated to contain no harmful chemicals that would cause any skin irritants. With premium quality, the product is also fit for working under difficult operating conditions
4. The product is slipping resistance. The materials used have offered enough adhesion and traction to the feet to avoid slipping. The product prevents viruses and bacteria from spreading
5. This product is safe. The materials used for it follow sustainability and eco-friendly standards and are free of all harmful chemical additives. The product can withstand high temperature

Introduction :

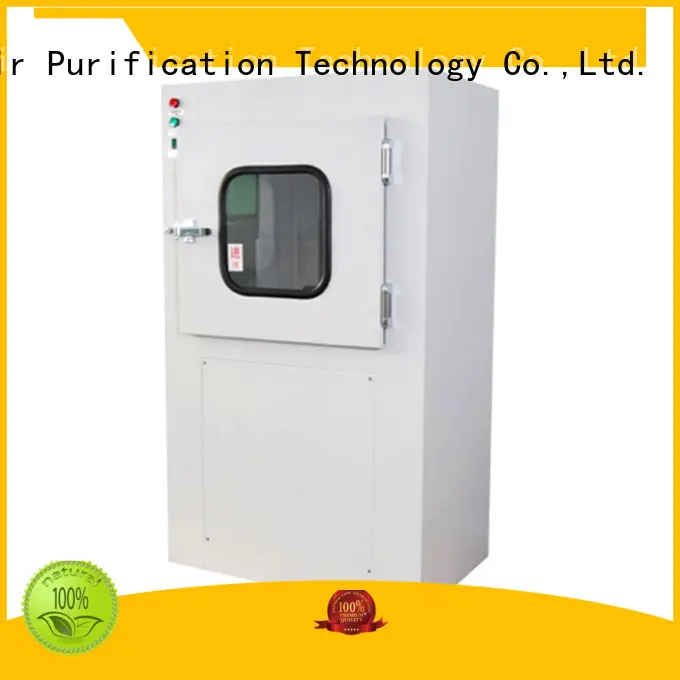

Air shower pass box is a kind of equipment for clean room and is mainly used to pass the small article between room and unclean room or two rooms .
The air shower pass box is devised on the basis of the air shower . With a electronic interlocking system , the pass box with air shower can effectively minimize the cross pollution .
And the air shower function can significantly reduce surface contamination on materials entering or exiting the controlled environment .

Application :

Air shower pass box is widely used in the clean environment , such as : micro - technology , biological laboratory , pharmaceutical factory , national defense , precise instrument , aseptic packaging , LCD , etc .

Features :

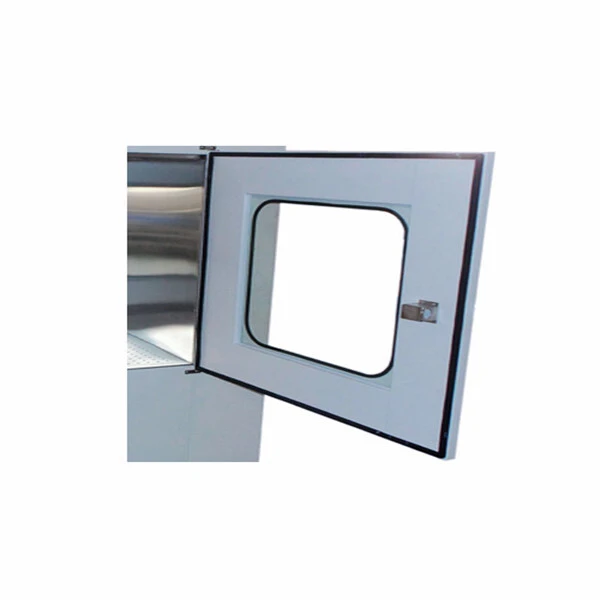

1. Electronic device ensure the doors on both side could not be opened simultaneously , which can reduce the cross contamination .
2. The cabinet material are available in steel with power coated , stainless steel , which are maximum chemical resistance and enhanced durability for a long life .
3. The duration of air shower pass box can be adjusted to 0-99 seconds , and automatic shower set to work by infrared ray inductor .

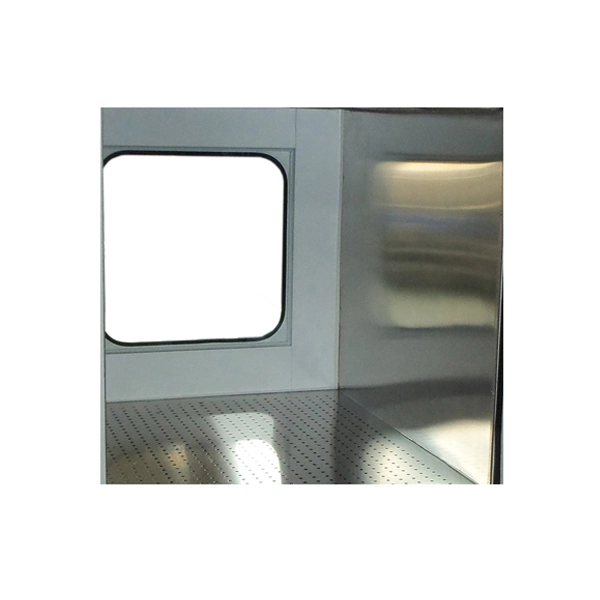

4. Arc shaped inner bottom avoiding forming dust , ensures the beautifulness and easy maintenance .
5. High powered blower , large air volume with low noise.



Specifications:

Air Shower Pass Through Box
Model	HA – APB600	HA– APB700	HA – APB800
External Size (W*D*H)mm	940X600X1450	1090X700X1500	1140X800X1550
Internal Size (W*D*H)mm	600X600X600	700X700X700	800X800X800
Pre-filter size (W*D*H)mm	570X290X17	745X290X17	795X290X17
Hepa filter size (W*D*H)mm	625X625X150
Hepa filter Efficiency	99.99%@0.3um
Fan Power	380V  50HZ  750W (1 set)
Fan Run	2800 r/min
Air Flow	1200 m3/s
Noise	<65dB
Nozzle	4pcs
