HAOAIRTECH negative pressure pass box manufacturers with baked painting for electronics factory

Company Advantages
1. The production technique implemented in the production of HAOAIRTECH wall pass through box is advanced and greatly guaranteed. It is a new production technique aimed at minimizing wastage.
2. This product is noted for its high quality and reliability.
3. Each staff in customer service team of HAOAIRTECH are professional.
4. HAOAIRTECH has always persisted in pursuing service and quality.

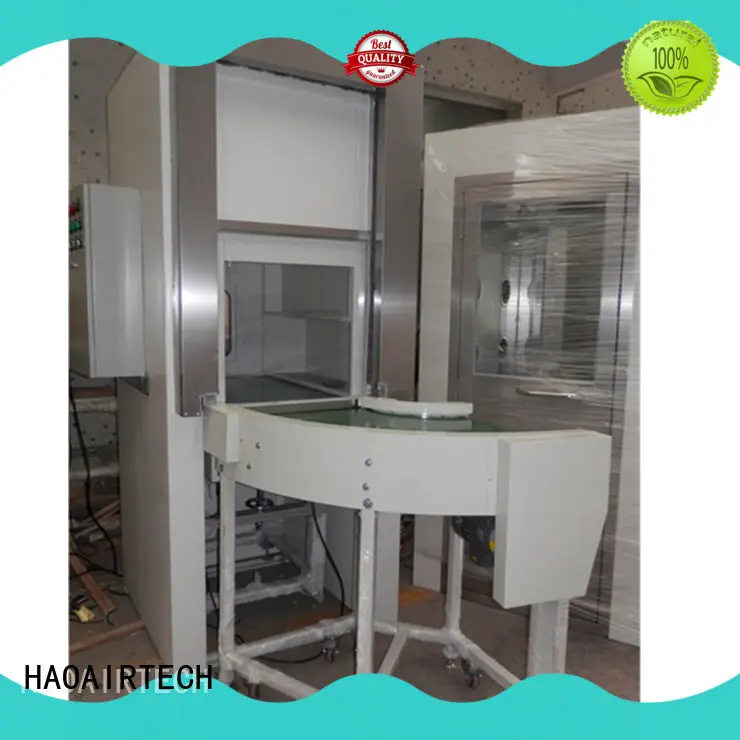

Vertical Slide Door Air Shower Pass Through

PLC Control Logic For Air Shower Pass Through:

 Sensor1 +Front Vertical Slide Door 1 + Haoairtech Auto Conveyor Line+ Sensor 2+Air Shower Pass Box+Back Vertical Slide Door2 + Sensor 3



 Sensor1:  This sensor should be fix on  auto conveyor line at end postion next to vertical front door 1

 Sensor 2:  This should be fix inside of air shower pass box.

 Sensor 3:  This should be fix on auto conveyor line next to back vertical slide door 2 .



1: When the carton pass the sensor 1 , the system will be give single to door. so that front vertical slide door open. meanwhile the keling auto conveyor line start working .

 2: When the carton pass the sensor 2 , system will be make the front door closed, and both door interlocker ,the self-clean system begain working (0-60S) adjustable .

 3: after the self-clean system finshed, the back side vertical slide door 2 will be opened , the system will be give singe to keling auto conveyor and yourself auto conveyor line start working ,

 4: when the carton pass the sensor 3 . the system remind the vertical slide door2  closed and keling conveyor line stop working.



 Note :



1: when the carton1 still inside the pass box , or still not pass the sensor3,  if there are new carton arrived sensor1, the system can not give any single to front door, untill the carton1 pass the  sensor 3 .

Parameter:



MODE	Air Shower   pass box with PLC control system
External size	1000x8000x2285 mm
Internal size	600X600x500mm
Air speed	>25m/s
Noise (dB)	75Db
Nozzle	8pcs
Filtration   Step	H13  99.995%@0.3um EU3  75%@2um
Fan	1 Sets (0.75KW 380V/50HZ    )
Booth Locker	Electric interlocker
Door	Entrance and   Exit door is automatic vertical glass   slide door
PLC Control   box	1 set

PLC Control Box :
