Company Advantages1. In the development of HAOAIRTECH pass box clean room , safety and practicability are both considered. Its precision and quality of manufacture, as well as the management of machine risk and reliability, are all carefully thought of by technicians.
2. This product has good recovery ability. This means that it can spring back into shape and maintain its form after being stretched.
3. The product has high economic value. It can be turned into higher value goods from mineral materials improvement and manufacturing.

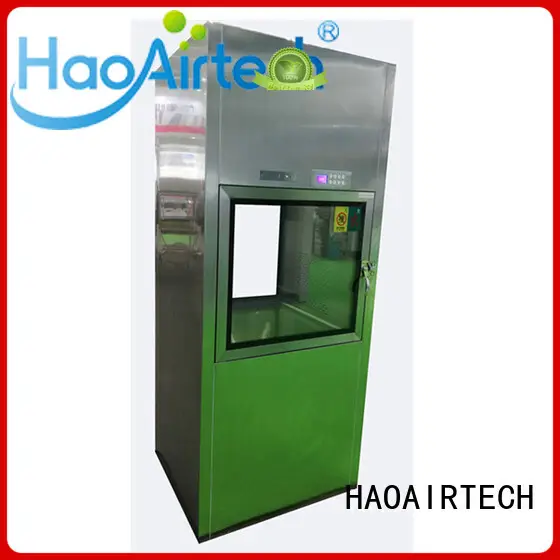

Pharma Dynamic Pass Box
Feature :
Precision designing and finish.
Choice of mechanical or electrical interlocked.
Floor and wall mounted design.
Maximum chemical resistance construction.
Stainless Steel suction filter w/ 95% down to 5 µ Efficiency (EU-4 Rating.).
Branded heavy duty Blower.
Aluminum Supply filter w/ 99.999% down to 0.001 µ (EU-14 Rating.).
Buzzer indication to know the material is kept inside.
Indicating lamp to know the door lock-unlock condition.
Low Vibration and Noise.
Fully custom designed.
Product Characteristic :
Pharma dynamic pass box can easily be installed between two different classified areas/rooms for material pass through.
The two doors are opened and interlocked at the same time to avoid simultaneous opening and a traffic light on both sides shows door status.
The pass box is entirely made of AISI304 stainless steel with a class B work chamber, compliant with cGMP Annex I, ensured by HEPA H14 filters.
At rest the electric lock doors are usually open. The doors are interlocked, therefore at the opening of one of them, the other one is blocked.
Pressing the button on the chosen side of the box will open the corresponding door, consequently the door will be locked.
![HAOAIRTECH negative pressure pass box clean room with conveyor line for clean room purification workshop 3]()
Products Parameter：
| Product | Pharma Dynamic Pass Through Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
| Blower | Branded Heavy duty |
| Noise | <78 |
| Power Supply | 220 / 230 Volts |
| Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Air Shower Facility | Optional |
| Cleanliness | Class 100 |
| Certifications | CE and ISO |
