HAOAIRTECH modular cleanroom vertical laminar flow booth for semiconductor factory

Company Advantages
1. The production process of HAOAIRTECH modular cleanroom covers the following stages. They are materials receiving, materials cutting, molding, component fabricating, parts assembling, and finishing. All these processes are conducted by professional technicians with years of experience in upholstery.
2. Product quality in line with industry standards, and through the international certification.
3. Rapid development of new products, and rapid delivery of orders, can finally win the market.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. is much more like a scalable and sustainable organization.

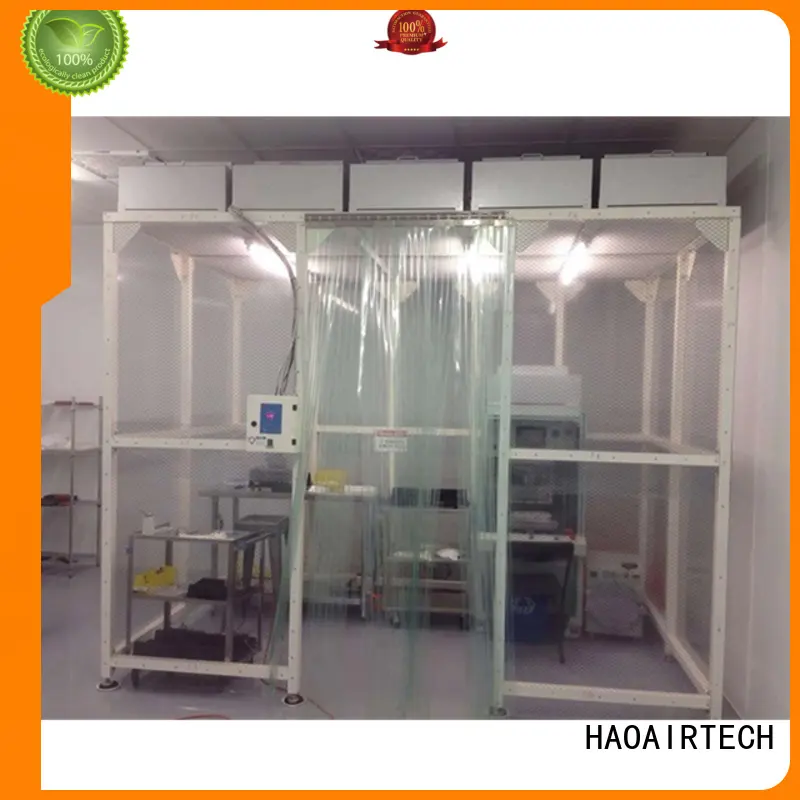

Class100 Clean Shed For Cleanroom

Introduction：

            A Clean shed rooom  or clean room is an environment,

 typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors.

 More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size.

 To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter,

 corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.

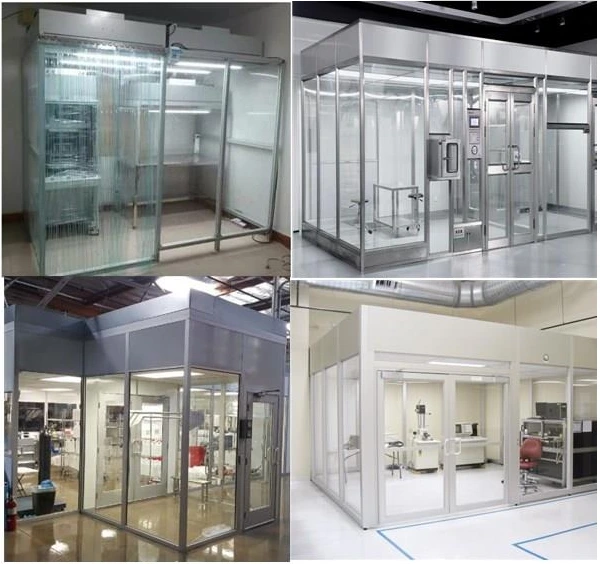

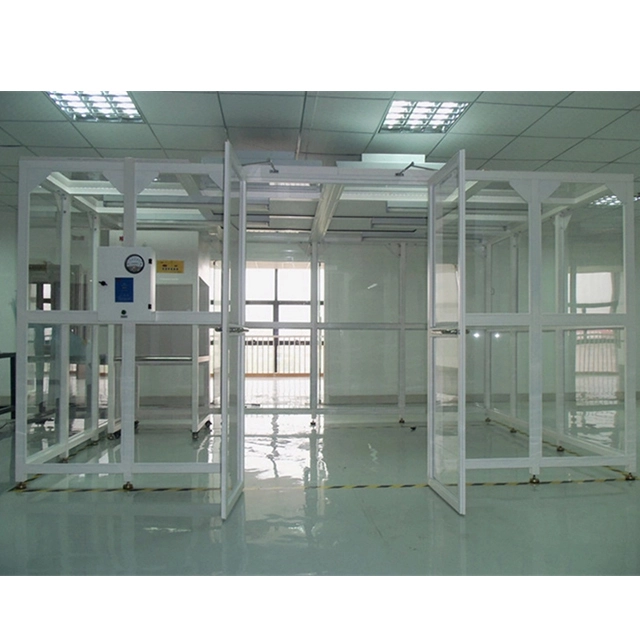

For clean room doors, we have many styles, this product uses stainless steel door.

The open way we have automatic sensing and manual door opening.

Stainless steel doors are highly resistant to corrosion and abrasion.

 It is a particularly popular material.

Technical Paremeters:

MODEL	HA-LFB2000	HA-LFB3000	HA-LFB4000	HA-LFB5000
Ex size (mm) (W*D*H)	2000X2000X2596	3000X3000X2596	4000X4000X2596	5000X5000X2596
In size (mm)	1900x1900x2205	2900x2900x2205	3900x3900x2205	4900x4900x2205
Purification rank	Class100-300,000(FS209E USA)
HEPA filter	Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filter	Efficiency : 85% @ 5um
Control system	PC control system / promised speed by control box
Pressure Gauge	American Dywer pressure
Noise	<50-55 dB (test point distance is 1m)
Air velocity(m3/h)	0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame material	stainless steel/steel with power coated/Cast aluminum profile
Wall frame	Tempered glass / PVC anti-static curtain (option)
Fan	EBM Fan /Taiwan fan/ Domestic fan (option)
Power suppler	AC110/220v 50HZ/60HZ

Customer's design is avaliable!

Feature：

 Standard product

• FFU : galvanized case;smooth surface finish and rust-free
• HEPA filter : HEPA filters comply with EN 1822;efficency is available from H13 to U17
• Frame : frames are made of sus stainless steel square pipe.they are good looking and anti-corrosive
• Buliding envelope : wall is made of anti-static,soft PVC or acrylic
• Control box : control box is controlled by computer programs.parameters are easy to be adjusted.

Alternative configuration

• Pressure difference control device;
• Pass box;
• Air shower pass box;
• ULPA filter;
• Sticky mat;
• Air shower;
• Transparent/grid pvc curtain;
• Clean bench;
• Thermo-static and humid -static air conditiong system
