HAOAIRTECH modular cleanroom enclosures online

Company Advantages
1. Every detail of HAOAIRTECH modular cleanroom is carefully designed before production. Apart from the appearance of this product, great importance is attached to its functionality.
2. The product is of high efficiency. It can start and finish a certain task in the shortest time without any fatigue.
3. The product is highly reliable when it runs. It has no probability of failure when it operates for a long time at its rated capacity.
4. Our modular cleanroom is warmly welcomed by its high quality and innovative design.

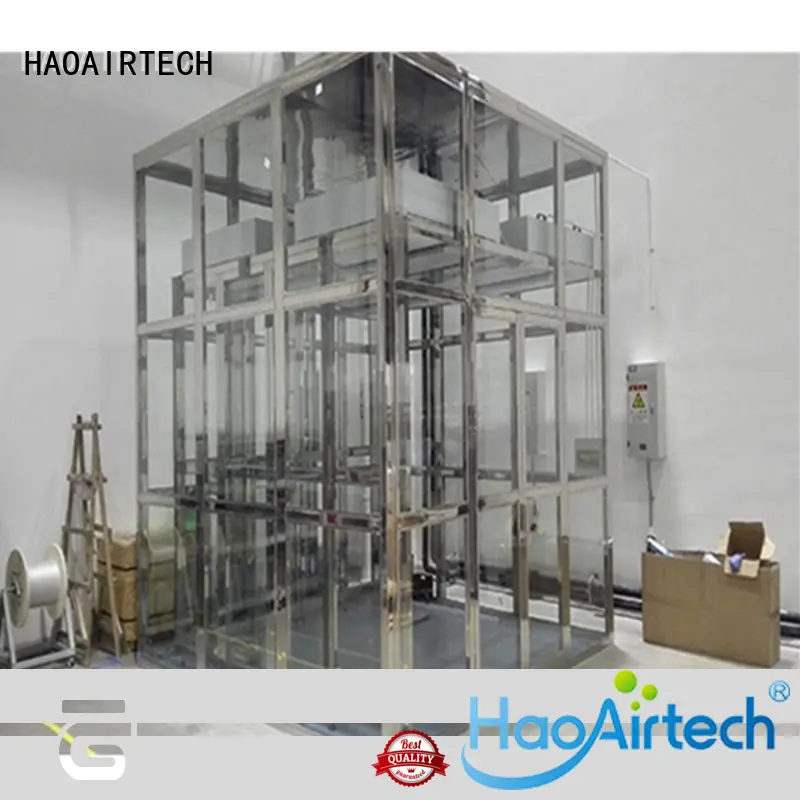

Modular Cleanroom For Pharmaceutical Industry

The Modular Cleanroom System is a fully operative cleanroom as a room-in-a-room system with a vertical unidirectional or turbulent airflow.

The system can be manufactured as open- or closed-loop construction.

Three different versions are available allowing flexibility for changing customer requirements:

ceiling-suspended, standing-firm with walls or mobile. The system itself can be equipped with the following options:

• Illumination

• AC or DC motor fans

• AMC filters

• Heat exchangers

The modular cleanroom system can achieve cleanroom classes 3-to-8 according to DIN EN ISO 14644-1.

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Company Features
1. HAOAIRTECH is equipped with advanced technology and is good at producing modular cleanroom at competitive prices.
2. We have an in-house design team. They work closely with our fabrication teams to ensure each and every item they design meets our strict QC standards.
3. Taking the lead in modular clean room price industry has been HAOAIRTECH striving for. Get price! HAOAIRTECH determines to make accomplishments to keep improving in clean room manufacturers filed. Get price!
