We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
HAOAIRTECH industry shoe sole cleaner manufacturer online
1. HAOAIRTECH shoe sole cleaner is precisely manufactured according to customer's specification/size requirement.
2. It opens up the market with low cost and high performance.
3. Each our shoe sole cleaner will be through strict test before its loading.
4. With good reputation of HAOAIRTECH, this product has a large potential user group.

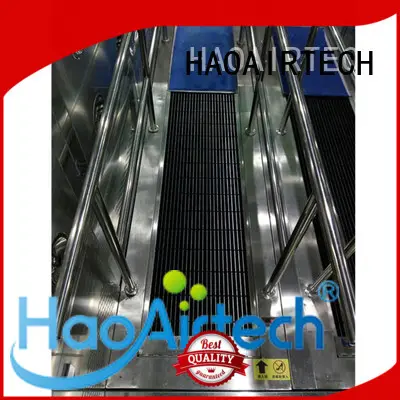

The shoe sole cleaning machine consist of two parts,
cleaning parts and drying part.
In the cleaning part, when walking on it, the cleaning machine repeatedly cleans and dissolves the dust of the sole. Finally achieve the effect of thorough clean.
In the drying part, the polymer absorbent cotton can quickly absorb the residual moisture in the sole within 1.5 seconds.
Draw :
Water wash: Shoes washing machine can effectively remove the dust-free area workers soles pollutants sole stubborn contaminants,
such as mud, powder wash removing and can be used with detergent and fungicides wash action, therefore;
in the case does not produce dust nor splashes, the sole clean.
Rolling brush: wash shoes cleaning station personnel Station perceptron sensing signal, cleaning round brush automatically open,
due for rolling rotary, therefore; residual dirt complex depths of the soles bump can also quickly let off Wash
NOTE :
1: For the purpose of easily taking out for cleaning, the upper panel is equipped with a handle.
2: There are two shield panels with 15 mm in height at both sides to prevent water from being sprayed out.
3: Please fill in 1/3 of the inner tank with water. Don't over filling it to try to prevent water from being sprayed out.
4: There has a drain hole with plug at the rear side beneath the inner tank. And it makes the cleaning work easier.
5:There have two valves being installed at the side of the outer tank. And the inlet valve is the one which is on the top while the drain valve is at the bottom consequently
MODEL | HA-ASCM085 | HA-ASCM13 | HA-ASCM18 | HA-ASCM28 | HA-ASCM38 | |
External size (mm) (W*D*H) | 850X760X140 | 1338X760X140 | 1838X760X140 | 2838X760X140 | 3838X760X140 | |
Clean area (mm) | 450x530 | 615X530 | 1115X530 | 1680X530 | 2070X530 | |
Dry area | 400x520 | 400x520 | 400x520 | 819x500 | 146x532 | |
Capacity of water tank | 10L | 15L | 20L | 31L | 48L | |
Motor power | 100W | 140W | 180W | 200W | 250W | |
Water inlet temperature | 0-40C | |||||
Switching mode | Infrared induction | |||||
Voltage | 220V /110V | |||||
Material | Stainless steel 304 (t=1.0/1.2mm) | |||||
Air shower size | 1m | 1.5m | 2m | 3m | 4m | |
Capacity person | < 50 person | <150 person | <200 person | <500 person | <1000 person | |
Weight | 45kgs | 50kgs | 75kgs | 115kgs | 180kgs | |
/ Specification
The sole cleaning machine adopts advanced brush structure technology and unique water cycle cleaning technology combination quickly remove the dust particles on the sole. And effectively clean the shoes through the
soles from the equipment. clean, quick, efficient, energy saving and environmental protection,one-time investment in long-term use effectively reduces production costs。
Our shoe sole cleaning machine can applicable to many kind of shoes, such as clean shoes , sport shoes leather shoes , rain shoes , slipper , high-heel shoes and so on
How to Maintain:
Normally you just need refresh the water and clean the absorbent pad
A: after some days usage , you can open the upper cover plate , then join the water pipe and push the drainage button, the sewage will be drained away , then inject the clean water according to the water indicator, note : don’t inject the water exceed 100% water level.
B: adsorbent pad : each one device have two pcs pad so it can be used alternately , if the pad get wet and dirty , you just need refresh the pad surface , extrude out the water .
How to use:
Step 1: placed the shoe sole cleaning machine on flat floor, power on, the machine will be inject some clean water to tank, insert and turn the leakage protection switch.
Step 2: when the shoe sole clean machine front sensor detected human sign, you can stand on the cleaning zone and began walk pass or just keep stand on , the machine will be automatically finished shoe clean work within 3S
Step 3: stand on the dry zone at end of the shoe sole cleaning machine for make your shoe bottom get dry. After this step, you can get off the machine , it will be stop automatic
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. These years, Guangzhou HaoAir Purification Technology Co.,Ltd. has offered customized shoe sole cleaner solution for clients from different countries.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has advanced production equipment and testing instruments, and its overall technical level is at the leading position in China.
3. Remembering the mission of shoes clean machine is a must in HAOAIRTECH. Check it! Guangzhou HaoAir Purification Technology Co.,Ltd. will keeps striving for the best shoe sole cleaner and best service. Check it! Taking shoe sole cleaner as the core drives HAOAIRTECH to go further in the market. Check it! Guangzhou HaoAir Purification Technology Co.,Ltd. is committed to integrating shoe sole cleaner industry resources in China and abroad and re-engineering the value chain. Check it!
