We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 1
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 2
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 3
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 4
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 5
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 6
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 7
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 8
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 1
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 2
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 3
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 4
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 5
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 6
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 7
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 8

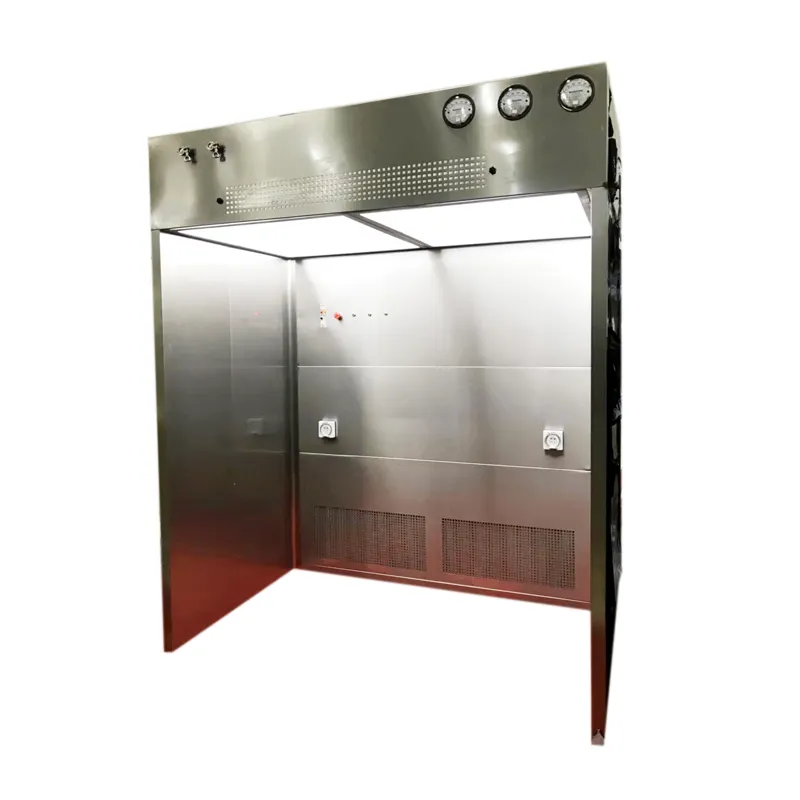

HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon

Brand:
HAOAIRTECH
Model number:
HA-DB Series
Material:
inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE and Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH system booth is produced with mature equipment. We adopt automatic fabric cutting machine and edge folding machine which can make fabric roll into small volume.
2. Supported by professional service team, HAOAIRTECH has been highly recommended by clients. The product assures an extremely high-efficient manufacturing process
3. The product has accurate dimensions. It has gone through the sanding process which aims to make its components to be refined with the exact same size. The product is widely used for high-end clean rooms of various manufacturers
4. The product is built to last. It has passed the fatigue test and crocking test which provide insight into its durability. The product prevents viruses and bacteria from spreading
5. It has a certain antibacterial ability. Its fabric is given anti-bacterial functions in a number of ways such as introducing anti-bacterial additives in the manufacturing process. It is certified by SGS corporation and reaches RoHS standard



Product Features
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 9


/ Products Parameter


MODEL

  HA-DB1000

HA-DB1500

HA-DB2000

External size (mm)
     (W*D*H)

1200x1500x2400mm

1500x1700x2400mm

2000x1800x2400mm

Work zone (mm)
     (W*D*H)

1100x1200x2000mm

1400x1200x2000mm

1900x1300x2000mm

Purification rank

                    Class 100(ISO5)

Air speed

                    0.45m/s +_20%

Material(Option)

1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
2: External and internal side is steel    with power coated. (T=1.2/1.5mm)

Control system

1: Air Speed according to frequency    converter control .
2: Gel Sealant High Efficiency HEPA air    filter for high purification rank
3: Wind speed detection, Constant    temperature and constant humidity
Detector according to client request install
4: DOP/PAO Port and differential Pressure    Guage for HEPA /secondary filter so that remind of you change the air filter    in time

5: 5 different filter configuration    available utilizing combination of G4,F8.H13,H14 and PLF Screens .
6; GMP Modular design with minimized    joints and seams.
7: PVC strip curtains available
8; Energy Efficient high air volume fan to    minimize operating cost,

Noise level(dB)

              <65dB

Filter step

               3 Step

HEPA filter

99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter

Secondary filter

       F8 pocket air filter

Pre-filter Efficiency

G4 Z-Line panel air filter

Power supply

 380V/50HZ  OR 220V/50HZ

Packing    material

Standard Export Poly wood Packing(Fumigant free material)

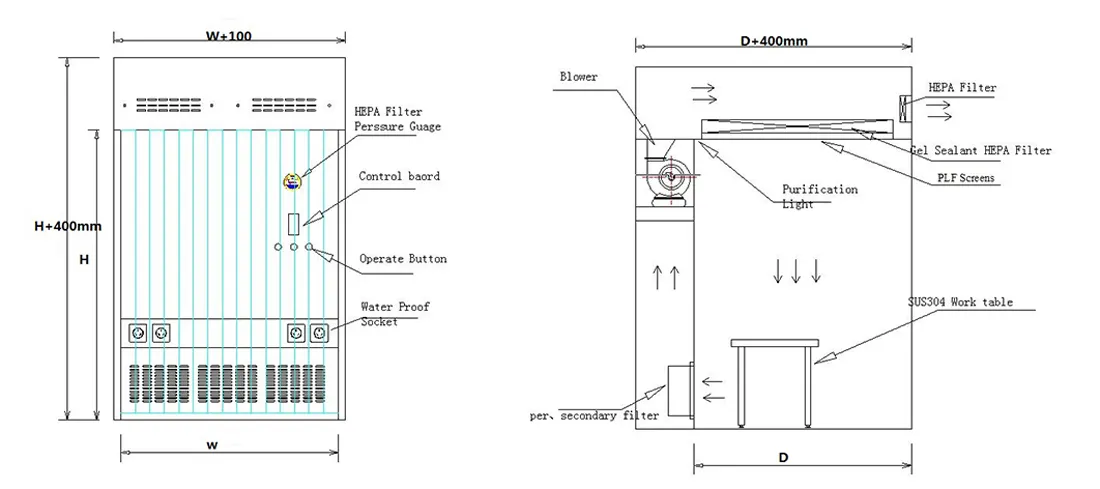

/ Specification


HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 10



/ Product Details



part.1

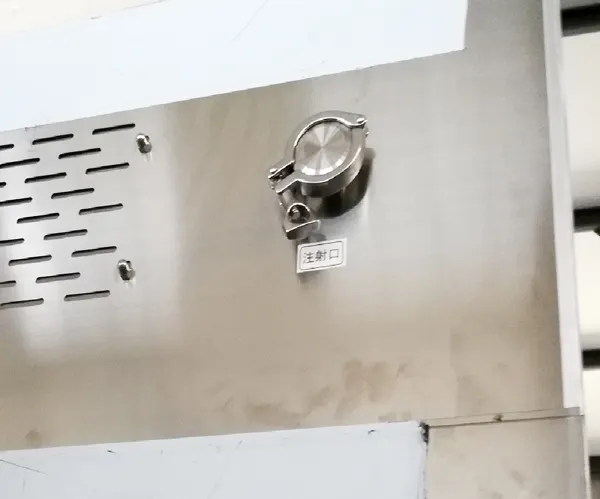

DOP port
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 11

part.2

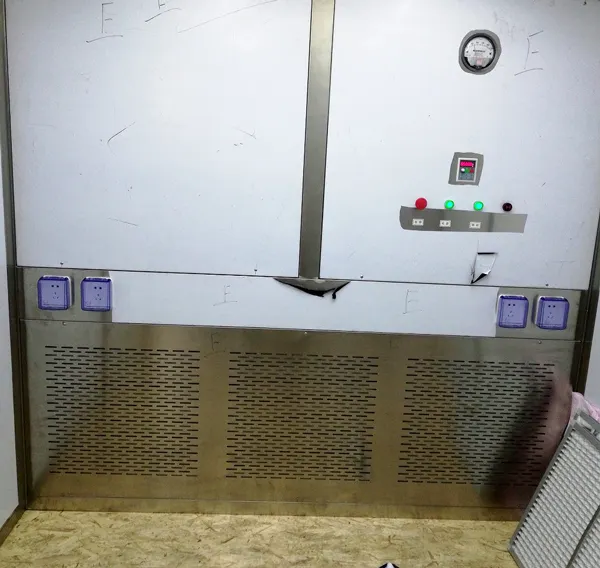

Control System
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 12

part.3

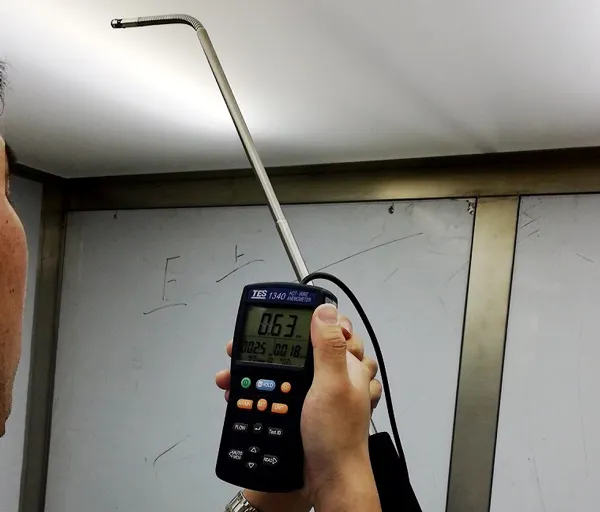

Air speed Test
HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 13


Application

Dispensing booth is designed such that through the different configurations it can be applied  but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .



/ Certificated

HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 14





/ Our Service


HAOAIRTECH hihg efficiency weighing booth gmp modular design for pharmacon 15

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has occupied most part of market by its high quality weighing booth .
2. Over the years, we have successfully cooperated with many well-known brands that have endorsements of our products. This has made our products known more to people.
3. The professional services are fully guaranteed. Get more info!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
