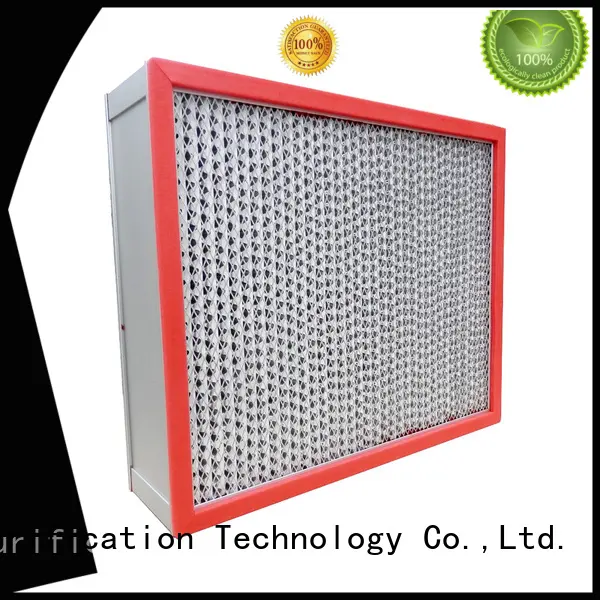

HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory

Brand:
HAOAIRTECH
Model number:
HA-HEPA-HT Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Product Details
HaoAir's best hepa filters is of excellent quality, which is reflected in the details.Under the guidance of market, HaoAir constantly strives for innovation. best hepa filters has reliable quality, stable performance, good design, and great practicality.
  • HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 11
Product Comparison
pass boxes is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with products in the same category, pass boxes we produce is equipped with the following advantages.
  • HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 12
    v s
    HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 13
Company Advantages
1. HAOAIRTECH is a global player in the high temperature filter bags market holding many market leading positions. .
2. high temperature filter is applicable to industries of high temperature filter bags .
3. Customers are greatly satisfied with the function of the product.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. ensures that its products absolutely meet the quality standards.
5. For Guangzhou HaoAir Purification Technology Co.,Ltd., the customer is the sole purpose of the company’s survival.



Characteristics
Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial high Temperature gasket can endure the 250℃ temperature continuous.
The aluminum or stainless steel frame for your choose.
High temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each high temperature HEPA air filter
Filtration Efficiency: H13,H14,(EN1822). 99.5%-99.995%@0.3um
Applied to the special high temperature paint room or oven room
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 14



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate Air Flow
  (m3/h)

Media Area
(m2)

Dust Holding
  (g)

Rate primary
 Resistance
   (Pa)

Finally
Resistance
  (Pa)

484X484X120

450

4.4

230





H13 :<200Pa
H14 :<220Pa







400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6.0

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 15



/ Product Details



part.1
Aluminum foil clapboard
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 16

part.2
High Temperature Gasket
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 17

part.3
Red Color High Temperature Glue
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 18

part.4
Air Filter Dust Detection Test
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 19


Application

High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.



/ Our Service


HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 20

Our Service

1:  100% scan air leaking test for each HEPA air filter , test report accompany all of HEPA air filter.
2:  1 pcs in one carton .each air filter warp by PE Bag.
3:  Small order is plywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document



/ package


HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 21
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 22
HAOAIRTECH high temperature filter with alu frame for filtration pharmaceutical factory 23




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has successfully occupied most markets of high temperature filter .
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has strong new product development and manufacturing capabilities.
3. We will constantly offer guaranteed and excellent service that's professional, fast, accurate, dependable, exclusive and considerate, to make sure customers make the most of the cooperation with us. Inquire! Doing well is the common pursuit and ideal of HAOAIRTECH. Inquire! The company puts a great deal of effort into environmental safety. During production, we adhere to the principles of saving energy and generating zero pollution. In such a way, the company hopes to protect our environment. Inquire!
