We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 1
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 2
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 3
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 4
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 5
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 6
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 7
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 8
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 9
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 10
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 1
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 2
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 3
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 4
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 5
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 6
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 7
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 8
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 9
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 10

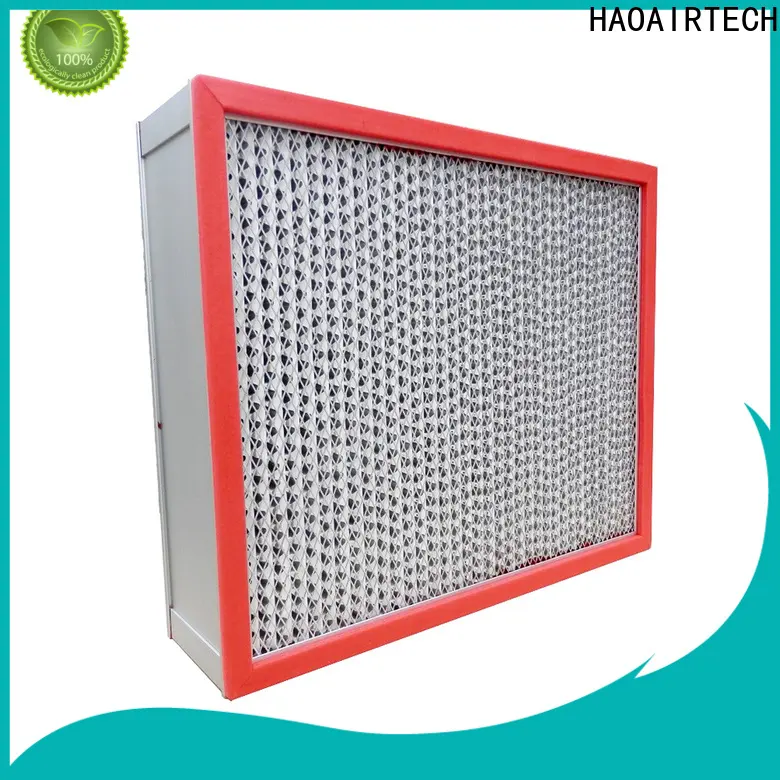

HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory

Brand:
HAOAIRTECH
Model number:
HA-HEPA-HT Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH high temperature air filter has undergone a series of the assessment process in terms of its sizes (width, height, length), colors, and resistance to environmental conditions (rain, wind, snow, sand storms, etc.) The product assures an extremely high-efficient manufacturing process
2. The product enables people to hide their flaws and imperfections, helping them build a positive attitude towards life. The product ensures the smooth refreshing breath of users
3. The product does not retain odor. The breathable perforated design allows airflow and can effectively avoid produce of any smell. It acts as an indispensable part in a dustfree production line
4. This product has good resistance to flexure. It will be not subjected to continuous flexing in walking or running and remains intact during the exercise. A sample of the product can be offered for the confirmation of quality



Characteristics
Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial high Temperature gasket can endure the 250℃ temperature continuous.
The aluminum or stainless steel frame for your choose.
High temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each high temperature HEPA air filter
Filtration Efficiency: H13,H14,(EN1822). 99.5%-99.995%@0.3um
Applied to the special high temperature paint room or oven room
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 11



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate Air Flow
  (m3/h)

Media Area
(m2)

Dust Holding
  (g)

Rate primary
 Resistance
   (Pa)

Finally
Resistance
  (Pa)

484X484X120

450

4.4

230





H13 :<200Pa
H14 :<220Pa







400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6.0

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 12



/ Product Details



part.1
Aluminum foil clapboard
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 13

part.2
High Temperature Gasket
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 14

part.3
Red Color High Temperature Glue
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 15

part.4
Air Filter Dust Detection Test
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 16


Application

High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.



/ Our Service


HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 17

Our Service

1:  100% scan air leaking test for each HEPA air filter , test report accompany all of HEPA air filter.
2:  1 pcs in one carton .each air filter warp by PE Bag.
3:  Small order is plywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document



/ package


HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 18
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 19
HAOAIRTECH high temperature air filter with alu frame for filtration pharmaceutical factory 20




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has its advantaged predominance since its establishment.
2. Over the years, we have been fortunate to attract some of the most talented professionals in our industry. They are dedicated to proving the very best service and response levels in the industry.
3. HAOAIRTECH is fully committed to high quality and good service. Check it!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
