We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

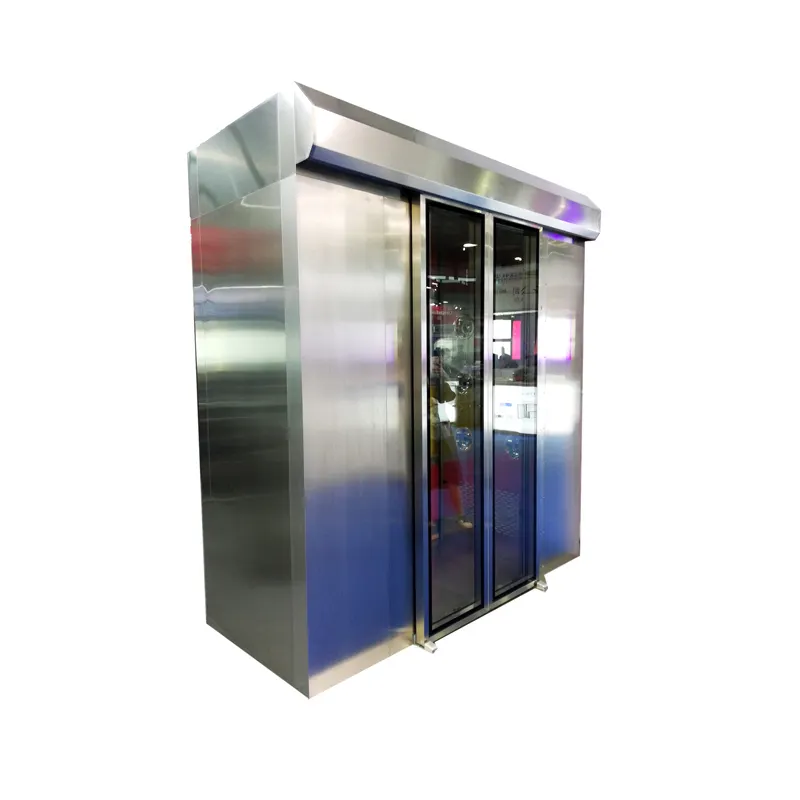

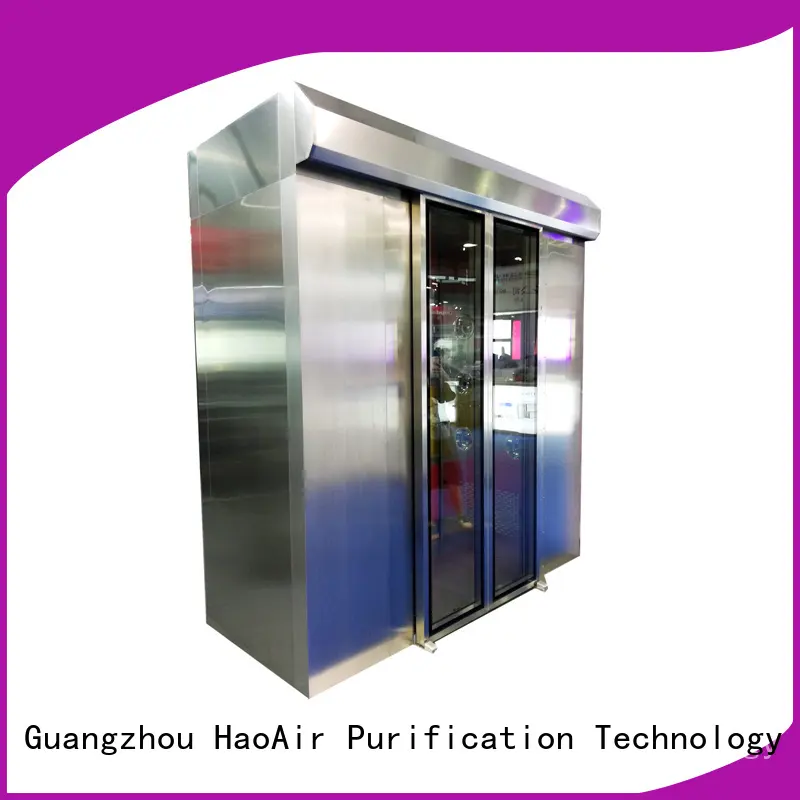

HAOAIRTECH high quality air shower controller with automatic swing door for pallet cargo
- HaoAir always gives priority to customers and services. We continuously provide excellent services for numerous customers.
1. air shower manufacturer with air shower controller will highly attract customers.
2. The product is acid and alkali resistant. It has passed the test which requires it to be dipped into the acetic acid for more than hours.
3. The product has a delicate and elegant design. Many details are carefully made such as carving, embellishment, and embroidery.
4. HAOAIRTECH is more popular for its greatest air shower manufacturer and amiable and friendly air shower clean room .
5. Guangzhou HaoAir Purification Technology Co.,Ltd. is widely appraised by customers from home and abroad for our perfect after-sale service.
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 2000*2000*2180mm
Internal size: 1500*2000*1910mm
Sus nozzle: 32pcs
Blowing way: 3 side (left, right and top)

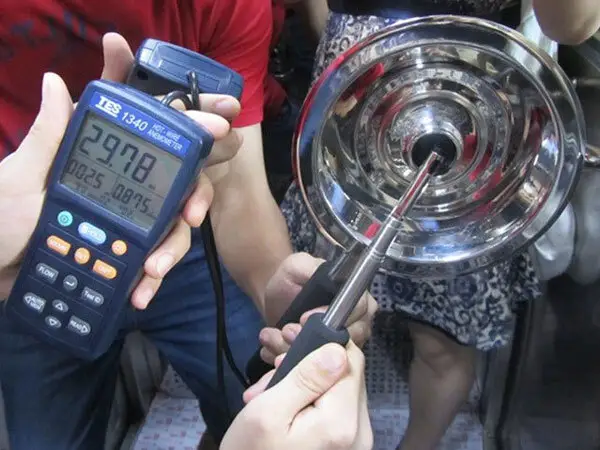

Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS2000P2 | HA-AS2000P3 | |
External size (mm) | 2000x2000x2200mm | 2000x3000x2200mm | |
Work zone (mm) | 1500x1930x2000mm | 1500x2930x2000mm | |
Air speed (m/s) | >25m/s | ||
Door material | Stainless steel frame with half glass or full glass | ||
Door control system | Auto sliding double door | ||
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | ||
Control system | 1: Control system with LED display for the shower time. | ||
The power of fan | 380V/50HZ/0.75KW(4 sets) | 380V/50HZ/0.75KW (6sets) | |
Nozzle in stain less steel | 32 pcs | 48pcs | |
Noise level(dB) | <75dB | ||
HEPA FILTER | Size(mm) | 630X630X80mm (4 sets) | 630X630X80mm(6 sets) |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
Air velocity | 1000(m3/h) | ||
Initial resistance(pa) | <180pa | ||
Pre-filter | Size(mm) | 775x380x17 | |
Efficiency (%) | 75% @ 0.5um | ||
G3 | |||
resistance(pa) | <30Pa | ||
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 3kw | 4.5 kw | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Weigh | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Power indicator 5: Emergency switch 6： Sliding door 7: HEPA air filter (H13 99.995%@0.3um) 8:Fan 9: Per-filter 10: important door closer 11: purification light
Door opening method:
1：Wireless remote control switch 2: Microwave sensor automatically 3: Non-contact sensor Switch 4: Contact push button Switch
Auto –sliding door Air shower control system procedure:
From contaminated zone to Clean room area:
2: when the person or cargo inside of air shower, the door will be closed automatic according setting time.
3: When the person or cargo arrived the air shower sensor area, but door will be interlocking and start the self-clean system.(0-90s)
4: After the self –clean system finished working, the exit door will be open automatic.
5: The person and goods go out of the door, some seconds later the exit door closed automatic.
The air shower procedure will be back standby state.
From clean room area to contaminated :
2: when the person or cargo inside of air shower, the exit door will be closed automatic according setting time.
3:when the exit door closed , 10s later the entrance door will be open automatic ,
4: the person and cargo go out of the entrance door, the door will be closed within setting time.
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. occupies the abroad air shower manufacturer market with high quality and competitive prices.
2. We have imported a series of modern production facilities. They are flexible enough and computer-driven, allowing us to manufacture products per required specifications.
3. We strive to create an inclusive work environment that fosters diversity; treat one another equally, with dignity and respect; be open and direct; promote a challenging work environment that develops our workforce. It is thought that HAOAIRTECH will developed into a global number one air shower controller brand. Please contact.
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
