We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

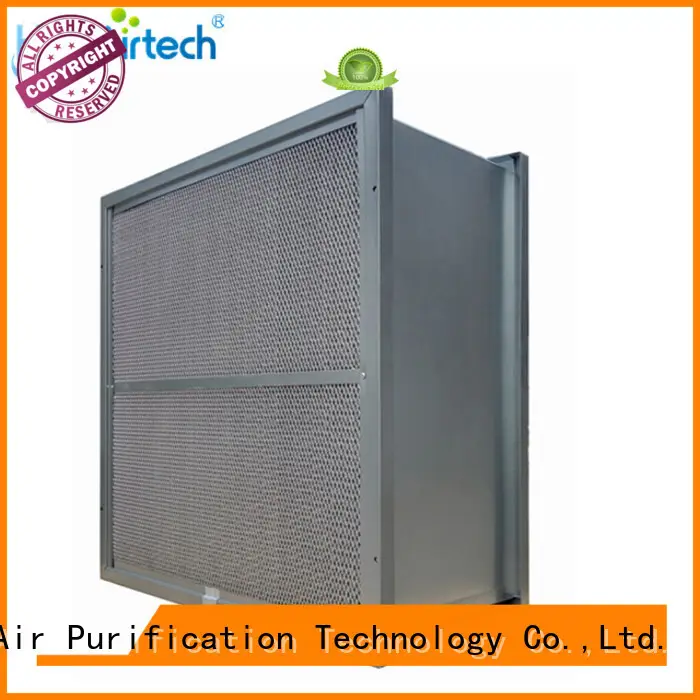

HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 1
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 2
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 3
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 4
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 1
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 2
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 3
HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 4

HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant

Inquiry
Enterprise Strength
  • HaoAir receives wide recognition and enjoys a good reputation in the industry based on pragmatic style, sincere attitude, and innovative methods.
Company Advantages
1. Our experienced and professional team supports strongly the design of high temperature filter .
2. The product is guaranteed to be of consistent quality with the adoption of the statistical quality control technique.
3. It helps build brand awareness. Its conveys the brand's beauty and captures the opportunity to connect with active customers.
4. This product helps save production costs. There are potential savings to be gained from reduced medical claims of employees, greater production output.

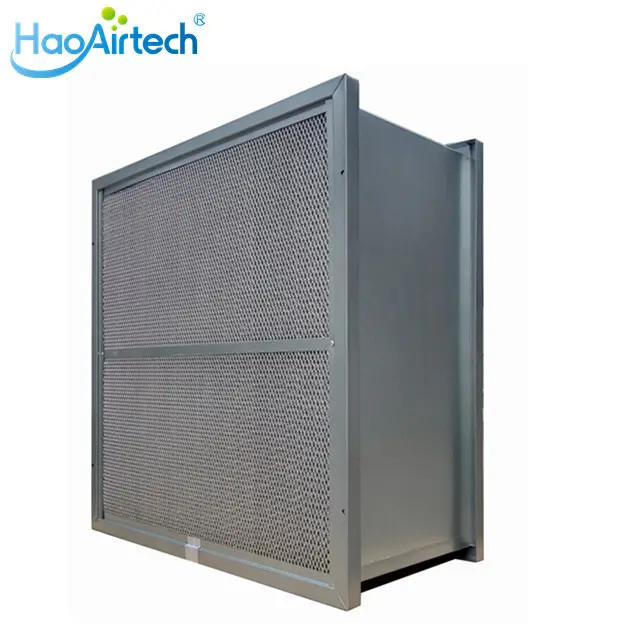

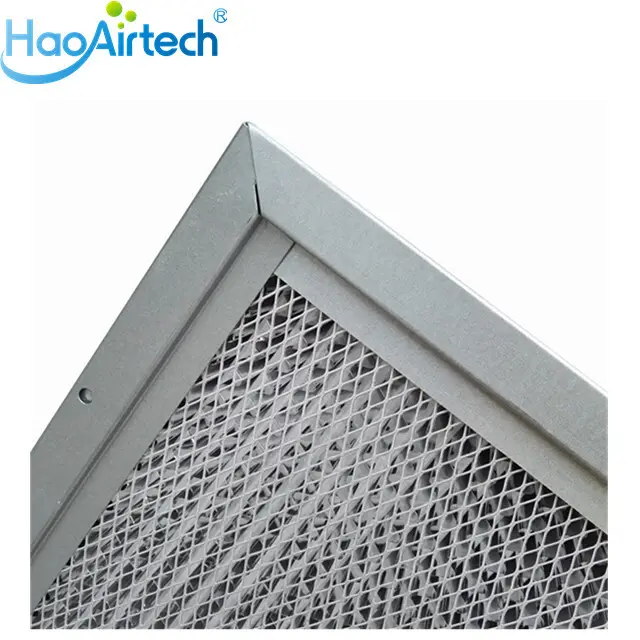

Deep Pleat High Temperature Filters


       Rigid cell deep pleat High temperature filters can withstand extremely high temperatures,

         making them effective for facilities that routinely experience high heat.

        The filters are composed of special components that resist extreme temperature changes,

         making them optimal for air filtration at high temperatures.

        The aluminum frame is self-extinguishing and is sturdy enough to repel corrosion inhibitors at high temperatures.

       The filter media is made of fiberglass, which operates perfectly at any temperature.



   HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 5

       Manufactured of specially selected components,

         Haoairtech compact High Temperature filters are ideal for applications requiring high efficiency filtration at high temperatures.

         Haoairtech High Temp filters are designed for high temperature applications up to 700°F.

        Offered in two efficiency ranges, MERV 11 (65%) and MERV 14 (95%) per ASHRAE Standard 52.2.

        The aluminum frame is designed to inhibit the breakdown of corrosion inhibitors at elevated temperatures.

        The sealing material is self-extinguishing.The media consists of micro fiberglass and is designed for operation in high temperature applications

    HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 6



Products Parameter



 Dimension

  (mm)

(W*H*D)



 Rate

Air

 Flow

 (m3/h)

Media   Area

   (m2)

Dust   Holding

   (g)

Rate   primary

Resistance

   (Pa)

 Finally

Resistance

   (Pa)

Efficiency

289x594x150

  675

4.3

261



<60



250-300

F6

594x594x150

  1385

8.84

354

287x594x292

1490

9.52

571

594x594x292

3085

19.7

1185

289x594x150

  675

4.3

261



<80



300-400

F7

594x594x150

1385

8.84

354

287x594x292

1490

9.52

571

594x594x292

3085

19.7

1185

289x594x150

675

4.3

261



<100



300-400

F8

594x594x150

1385

8.84

354

287x594x292

1490

9.52

571

594x594x292

3085

19.7

1185


 HAOAIRTECH high efficiency high temperature filter with alu frame for spraying plant 7





Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has been paying attention to the high temperature filter business for many years.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. is equipped with many technical talents.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will firmly grasp the corporate positioning of the main force for high temperature resistance filter in high temperature air filter field. Please contact. Cooperating with customers to promote hepa air filters for home manufacturing industry better is our wish. Please contact.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
