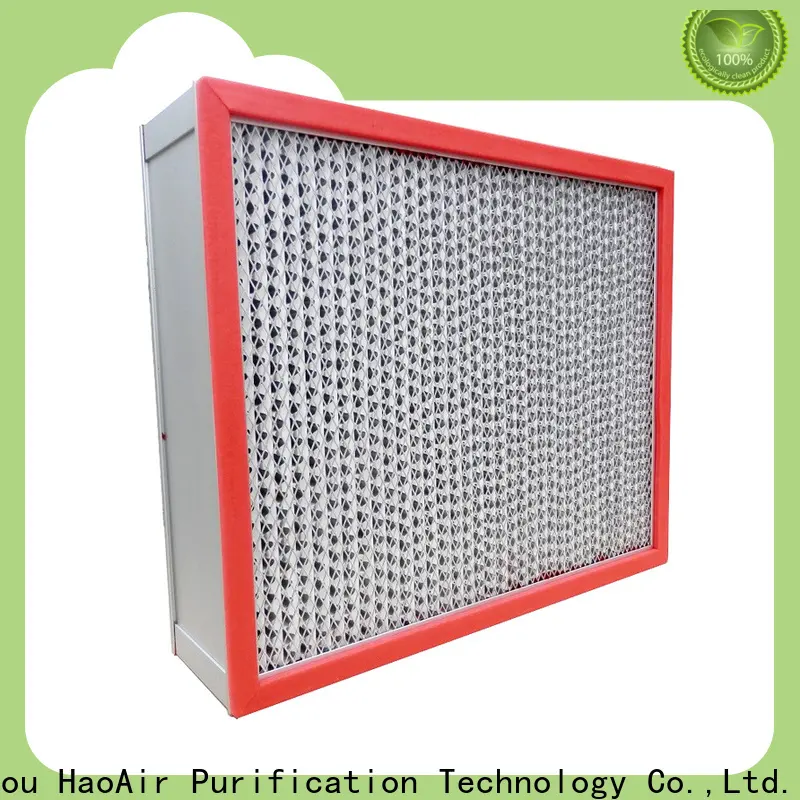

HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration

Brand:
HAOAIRTECH
Model number:
HA-HEPA-HT Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH hvac filters is manufactured using the latest production technology as per the international trends. The product is reputed for its long service life
2. Due to its abrasion resistance between machines, the product is able to stand up the frequent uses without any damage. It has low noise and high mobility
3. This product does not emit highly toxic chemicals. Its materials contain no/few hazardous substances such as formaldehyde, toluene, phthalates, xylene, acetone, and benzene. The product creates a high cleanliness working environment
4. The product is nontoxic and innocuous. It has passed the ingredient testing, with no lead, formaldehyde, or other harmful substances contained. It acts as an indispensable part in a dustfree production line
5. This product is safe to use. It is made of environmentally safe materials that are free of volatile organic compounds (VOCs) such as benzene and formaldehyde. The product's rigid frame forestalls shrinking or bending



Characteristics
Glass fibre with foil clapboard endure the high air volume in lower resistance at 0.3um particle
Especial high Temperature gasket can endure the 250℃ temperature continuous.
The aluminum or stainless steel frame for your choose.
High temperature glue prevent the air leaking in operation.
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each high temperature HEPA air filter
Filtration Efficiency: H13,H14,(EN1822). 99.5%-99.995%@0.3um
Applied to the special high temperature paint room or oven room
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 11



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate Air Flow
  (m3/h)

Media Area
(m2)

Dust Holding
  (g)

Rate primary
 Resistance
   (Pa)

Finally
Resistance
  (Pa)

484X484X120

450

4.4

230





H13 :<200Pa
H14 :<220Pa







400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6.0

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 12



/ Product Details



part.1
Aluminum foil clapboard
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 13

part.2
High Temperature Gasket
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 14

part.3
Red Color High Temperature Glue
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 15

part.4
Air Filter Dust Detection Test
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 16


Application

High temperature HEPA air filter suitable for filtration pharmaceutical factory, high temperature sterilizing tunnel or high temperature drying room produced tar, soot, dust and other particles.



/ Our Service


HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 17

Our Service

1:  100% scan air leaking test for each HEPA air filter , test report accompany all of HEPA air filter.
2:  1 pcs in one carton .each air filter warp by PE Bag.
3:  Small order is plywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document



/ package


HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 18
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 19
HAOAIRTECH high efficiency high temperature air filter with large air volume for prefiltration 20




Company Features
1. As a dedicated hvac filters manufacturer in the domestic market, Guangzhou HaoAir Purification Technology Co.,Ltd. leads the industrial trends with professionalism.
2. We have earned a relatively considerable market share over the years. We have established a strong customer base, involving clients from Germany, the Middle East, Africa, and South Amerca.
3. Looking into the future, our company will strive to follow our principle of "providing dependable services and to be persistently creative".
